Trouble Diagnosis Flow Chart

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Depending on the control unit which performs CAN communication"U1010" may be indicated as the result of self-diagnosis. Replace the control unit if "U1010" is indicated.

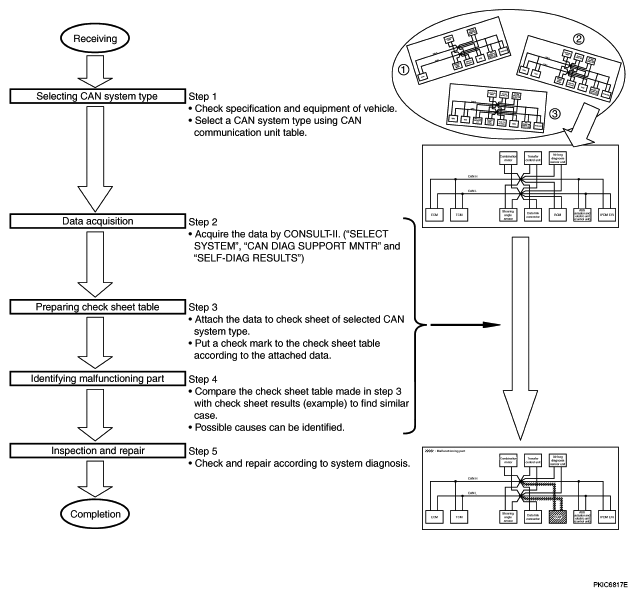

Fig 1: Trouble Diagnosis Flow Chart

Step 1: Refer to "SELECTING CAN SYSTEM TYPE (HOW TO USE SPECIFICATION TABLE) ".
Step 2: Refer to "ACQUISITION OF DATA BY CONSULT-II ".
Step 3: Refer to "HOW TO USE CHECK SHEET TABLE ".
Step 4: Refer to "EXAMPLE OF FILLING IN CHECK SHEET WHEN INITIAL CONDITIONS ARE REPRODUCED ".
Step 5: Refer to "TROUBLE DIAGNOSIS FOR SYSTEM ".
