Differential Gear Assembly: Disassembly

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove O-rings from differential gear assembly.

Fig 1: Identifying O-Rings
Courtesy of NISSAN MOTOR CO., U.S.A.

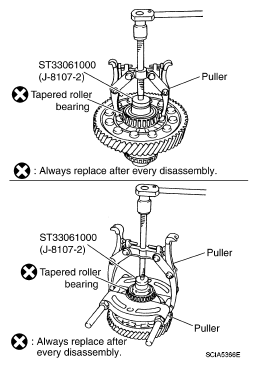

Remove tapered roller bearings using Tool.
Tool number : ST33061000 (J-8107-2)

Fig 2: Identifying Tapered Roller Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
