Description of Control System
WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
The control system consists of input sensors, switches, the front air control (microcomputer) and outputs.

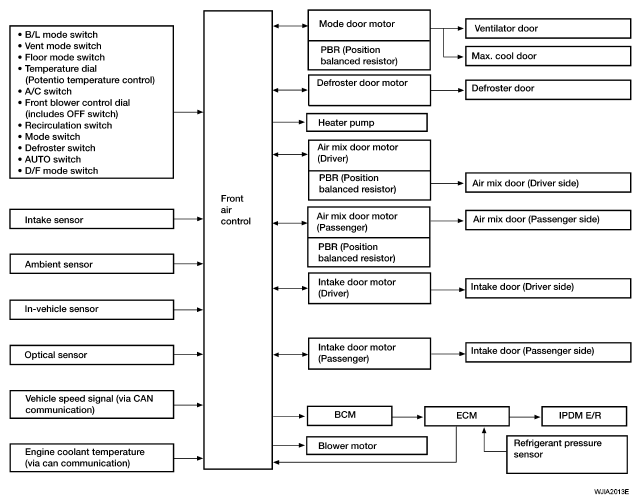

The relationship of these components is shown in the figure below:
Courtesy of NISSAN MOTOR CO., U.S.A.
