Rear View Monitor: Schematic

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

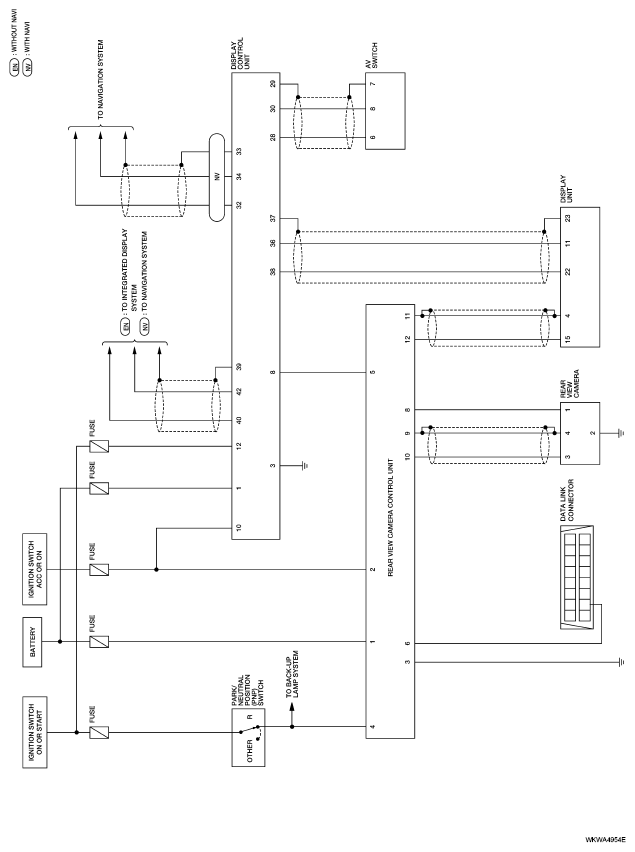

Fig 1: Schematic - Rear View Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.
