Mid Level System (With Monochrome Display)

WARNING: This page is about a different car, the 2007 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

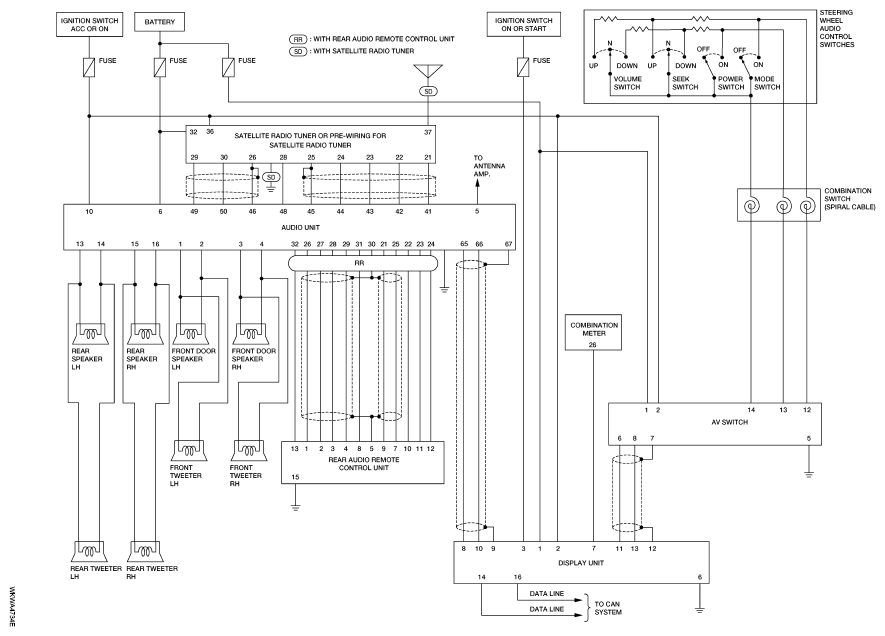

Fig 1: Mid Level System Schematic Diagram (With Monochrome Display)
G04908964
