Checking Drive Belts: Notes
WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Inspect and check the drive belts with the engine off.
- Inspect belt for cracks, fraying, wear or oil adhesion. If necessary, replace with a new one.

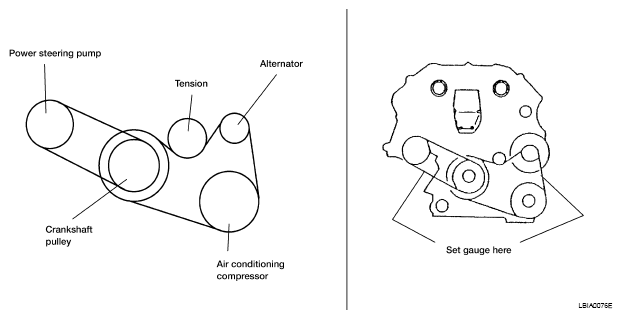

- Inspect drive belt deflections by pushing on the belt midway between pulleys as shown.
- Rotate the crankshaft pulley two times then check the belt tension using Tool.
Tool number: - (BT-3373-F)
NOTE:- Inspect drive belt deflection or tension when engine is cold.
- Adjust if belt deflections exceed the limit or if belt tension is not within specifications.
