Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Murano and 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket of 3.0 mm (0.12 in) diameter to position shown in the figure (both edges of No. 1 camshaft bracket) (on both banks).
Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
- First, apply it to engine longitudinal direction [5.0 mm (0.197 in) + 5.0 mm (0.197 in) side in figure].

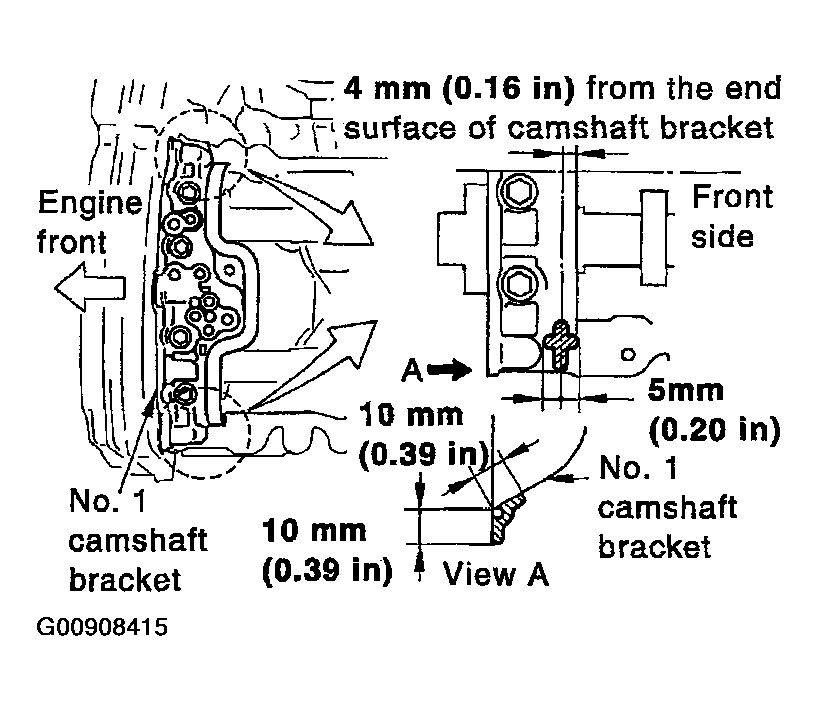

  Fig 1: Sealant Application Areas
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install rocker cover.
- Check if rocker cover gasket is dropped from installation groove of rocker cover.
Tighten bolts two steps separately in numerical order as shown in the figure.
1st step

: 0.96 - 2.96 N.m (0.10 - 0.30 kg-m, 9 - 26 in-lb)

2nd step

: 7.33 - 9.33 N.m (0.75 - 0.95 kg-m, 65 - 82 in-lb)

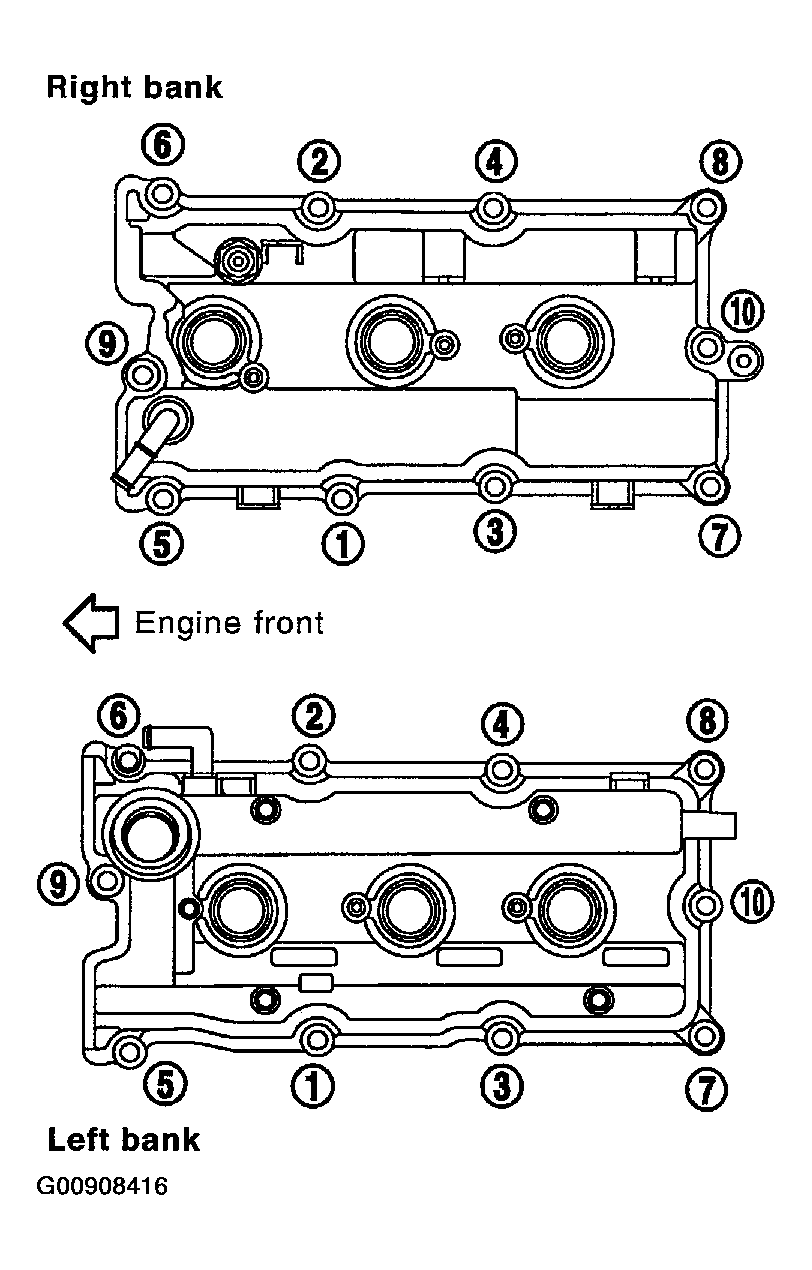

Fig 2: View Of Rocker Cover Torque Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Install PCV hose.
- Insert PCV hose by 25 to 30 mm (0.98 to 1.18 in) from connector end.
- When installing, be careful not to twist or come in contact with other parts.
- Install PCV hose between right and left rocker covers with its identification paint facing upward (right rocker cover side).
Install in the reverse order of removal after this step.
