DTC P1212: Abs/TCS Communication Line

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC U1000 or DTC U1001 is also set, perform diagnosis for DTC U1000 or DTC U1001 first. See DTC U1000 OR DTC U1001: CAN COMMUNICATION LINE .

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1.

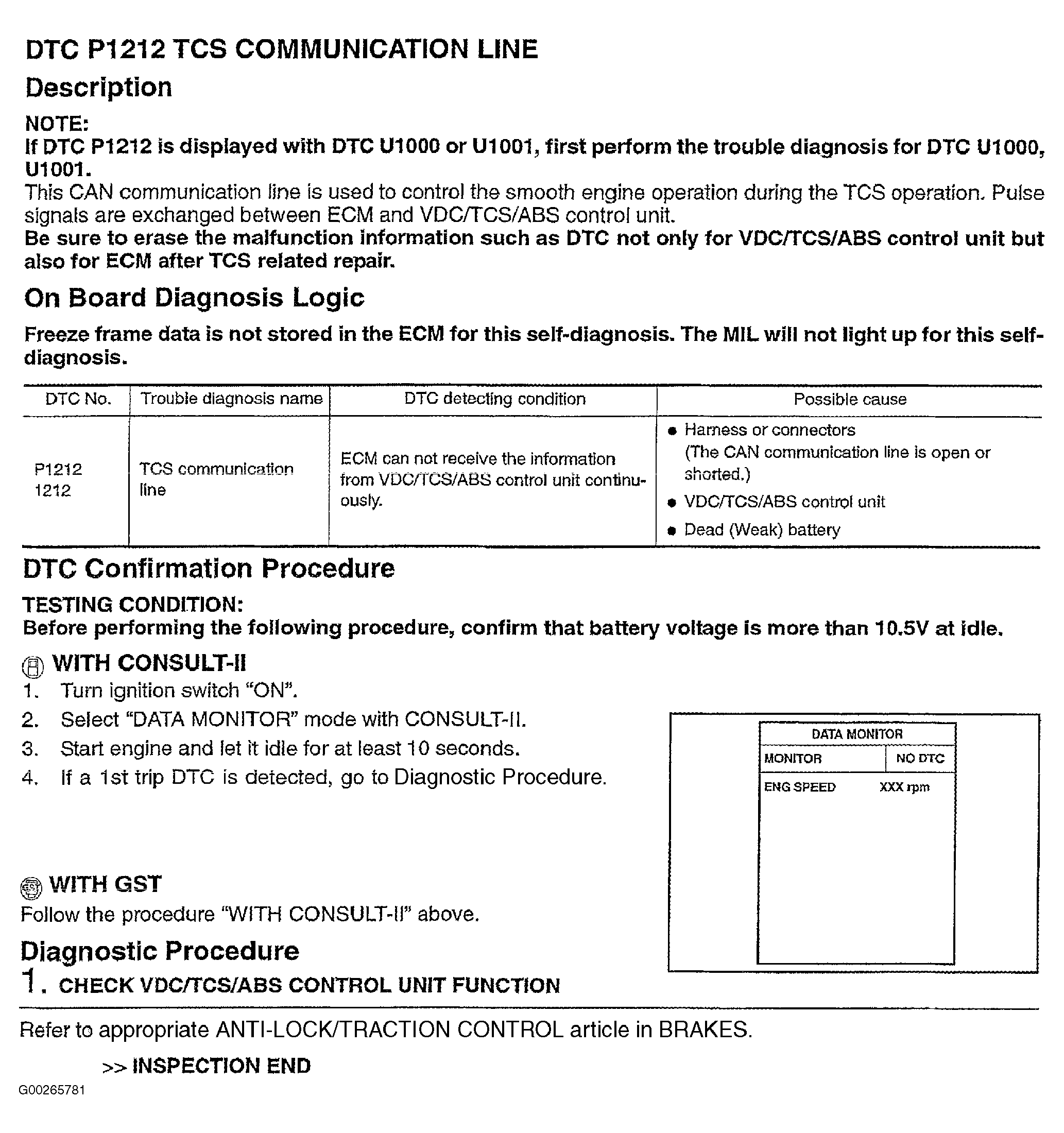

Fig 1: DTC P1212

Courtesy of NISSAN MOTOR CO., U.S.A.
