Removal and Installation: Removal
WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
- Remove the RH and LH ventilator grilles. Refer to "REMOVAL AND INSTALLATION ".

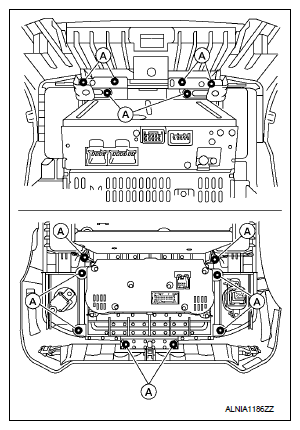

- Remove the audio unit assembly screws (A), then remove the audio unit assembly, from cluster lid C.
- Remove the audio unit screws (A), using power tool.
- Remove the audio unit brackets (2), then pull out the audio unit (3) from the audio control panel (1).
