Control System Connector Terminal Identification

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

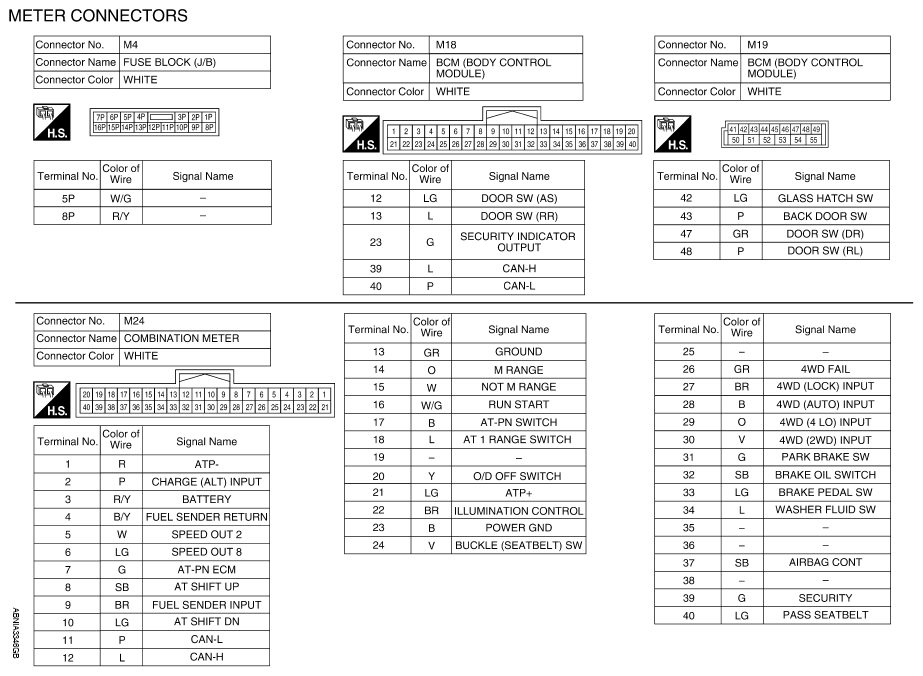

Fig 1: Identifying Meter Connectors (1 Of 13)

G08169308

Courtesy of NISSAN NORTH AMERICA, INC.

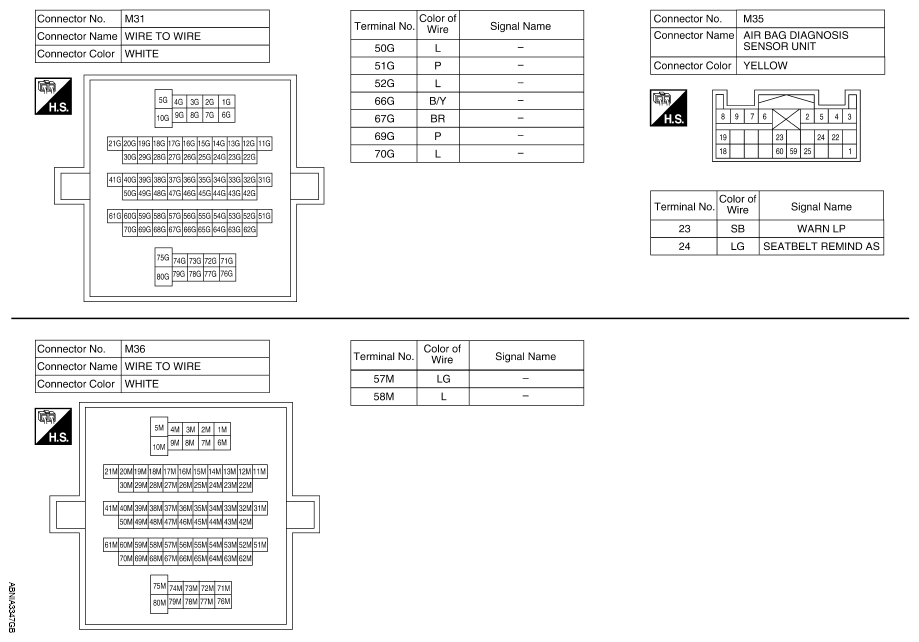

Fig 2: Identifying Meter Connectors (2 Of 13)

G08169309

Courtesy of NISSAN NORTH AMERICA, INC.

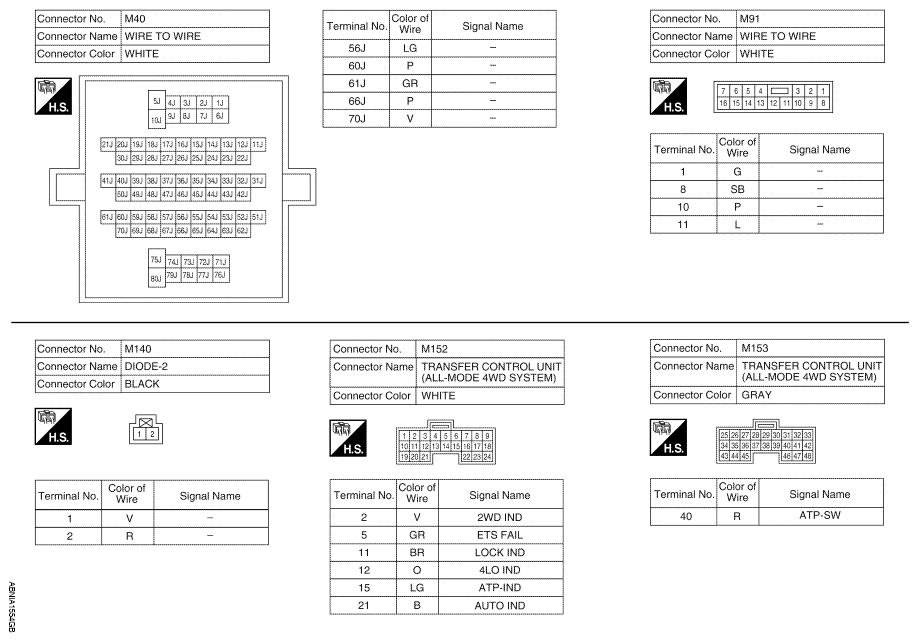

Fig 3: Identifying Meter Connectors (3 Of 13)

G06607987

Courtesy of NISSAN NORTH AMERICA, INC.

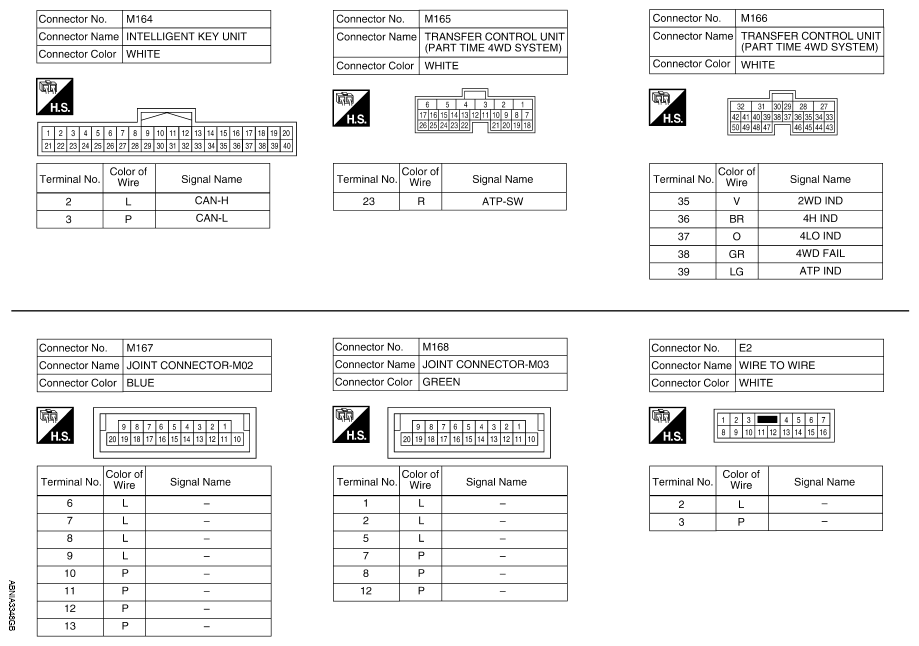

Fig 4: Identifying Meter Connectors (4 Of 13)

G08169311

Courtesy of NISSAN NORTH AMERICA, INC.

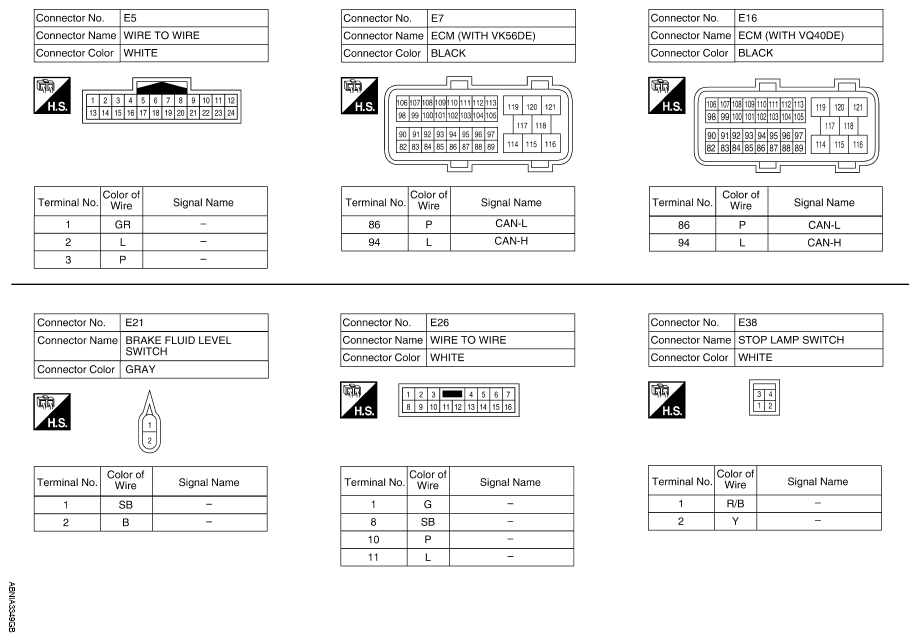

Fig 5: Identifying Meter Connectors (5 Of 13)

G08169312

Courtesy of NISSAN NORTH AMERICA, INC.

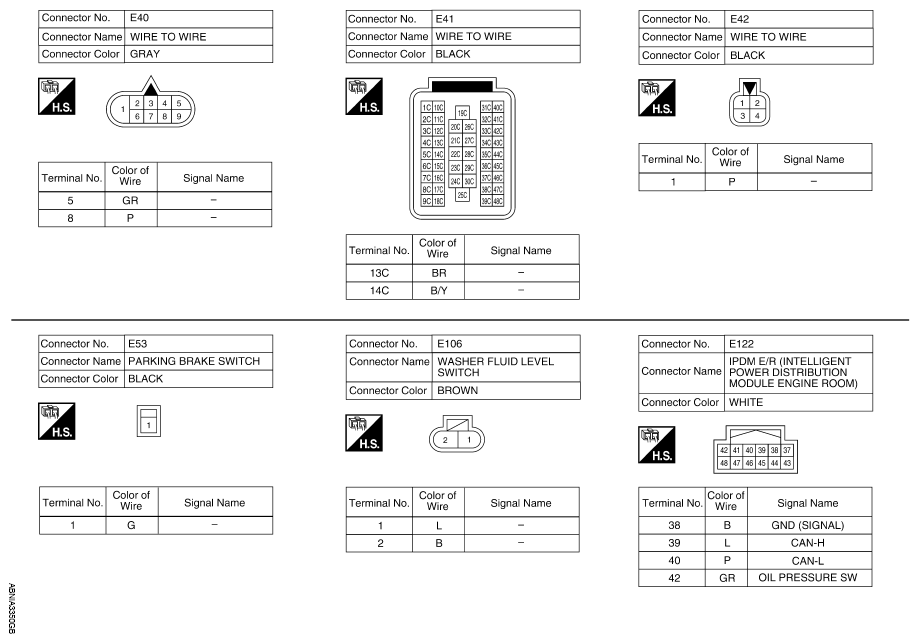

Fig 6: Identifying Meter Connectors (6 Of 13)

G08169313

Courtesy of NISSAN NORTH AMERICA, INC.

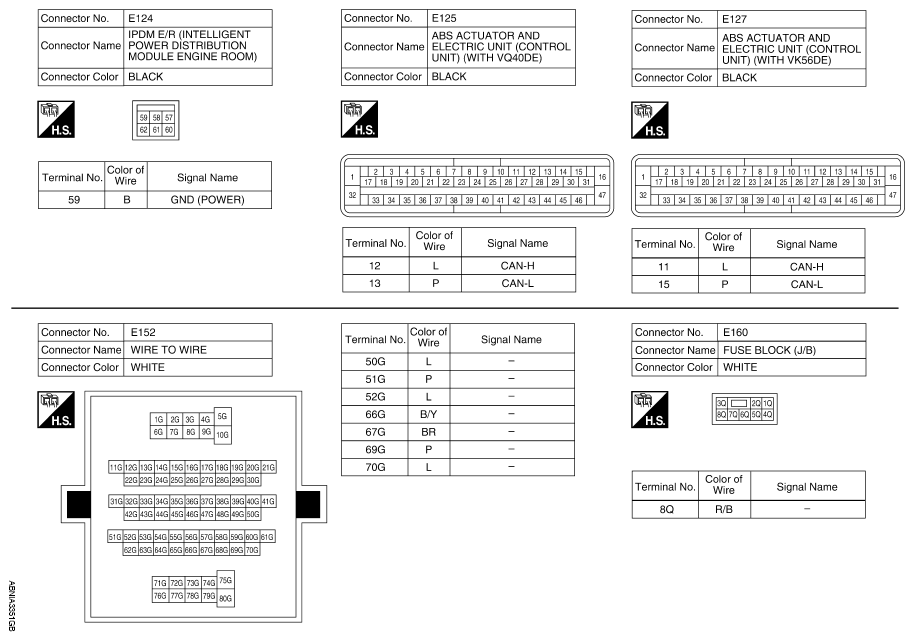

Fig 7: Identifying Meter Connectors (7 Of 13)

G08169314

Courtesy of NISSAN NORTH AMERICA, INC.

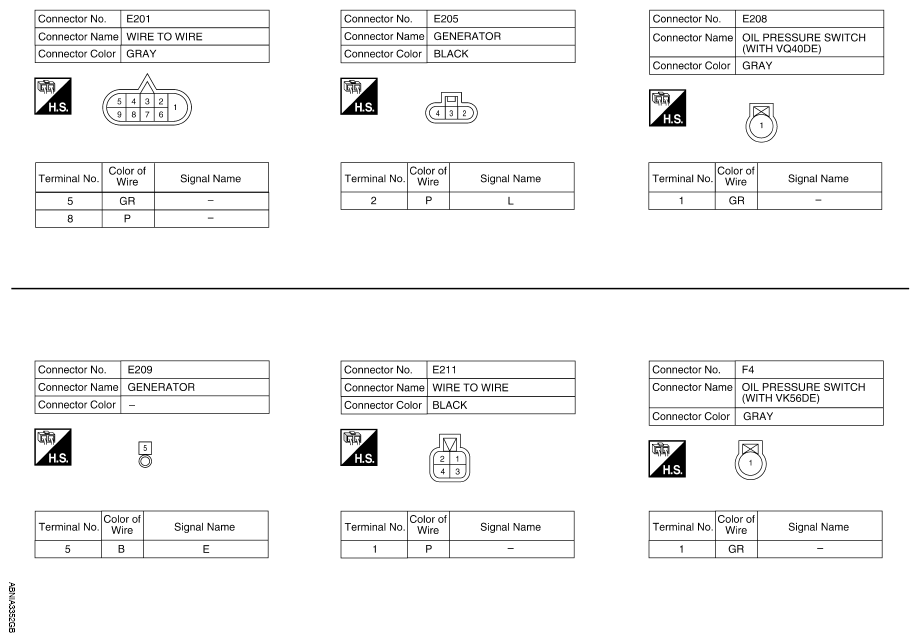

Fig 8: Identifying Meter Connectors (8 Of 13)

G08169315

Courtesy of NISSAN NORTH AMERICA, INC.

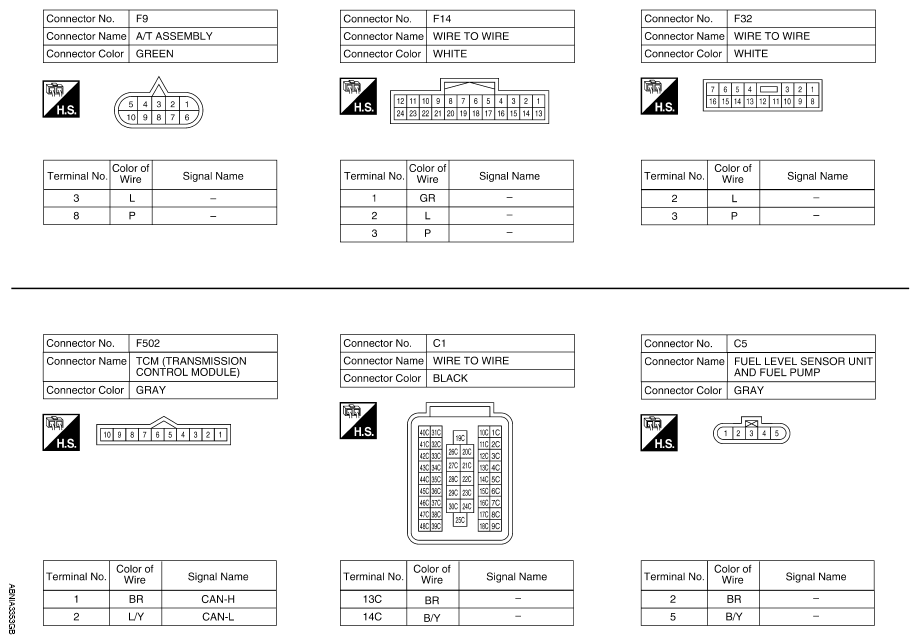

Fig 9: Identifying Meter Connectors (9 Of 13)

G08169316

Courtesy of NISSAN NORTH AMERICA, INC.

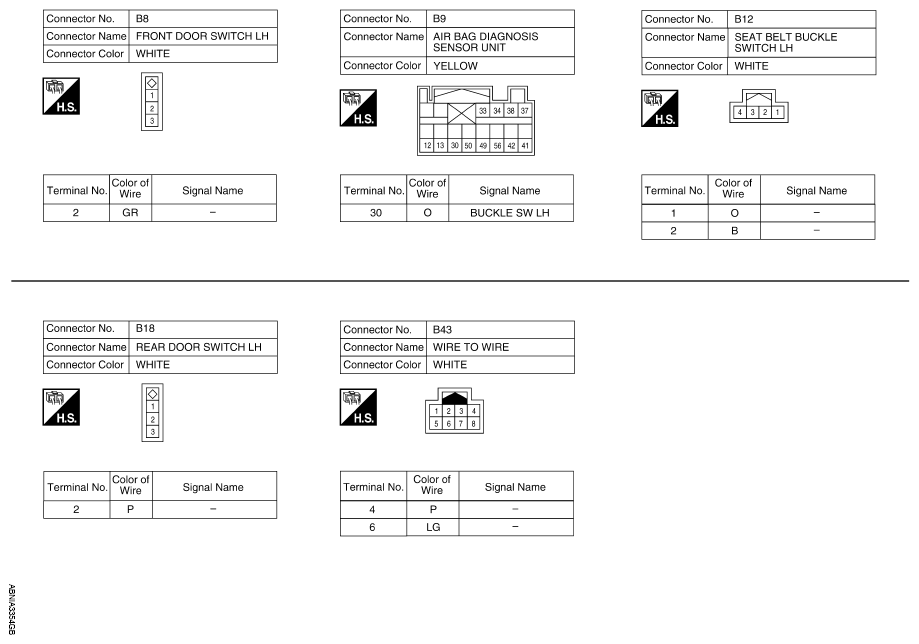

Fig 10: Identifying Meter Connectors (10 Of 13)

G08169317

Courtesy of NISSAN NORTH AMERICA, INC.

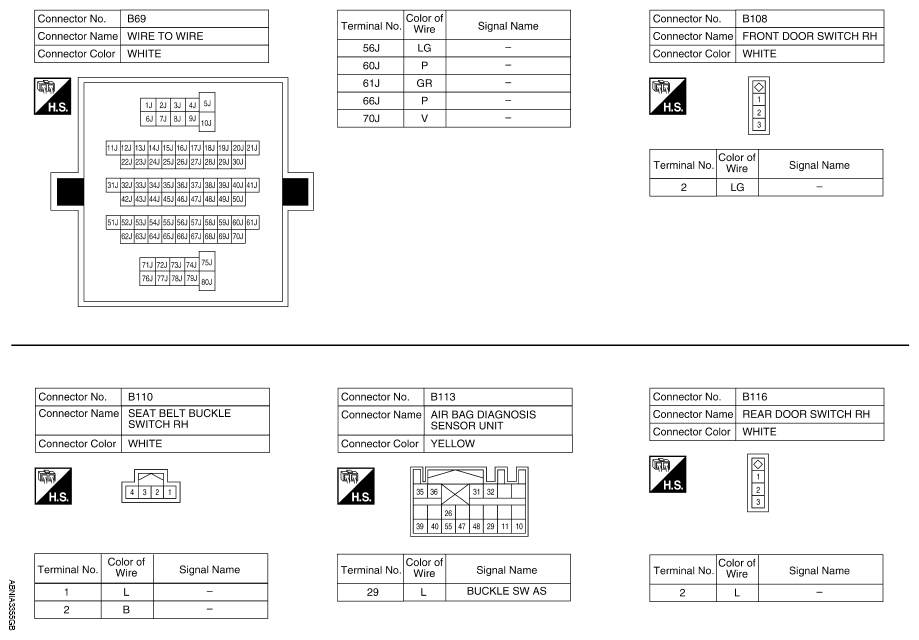

Fig 11: Identifying Meter Connectors (11 Of 13)

G08169318

Courtesy of NISSAN NORTH AMERICA, INC.

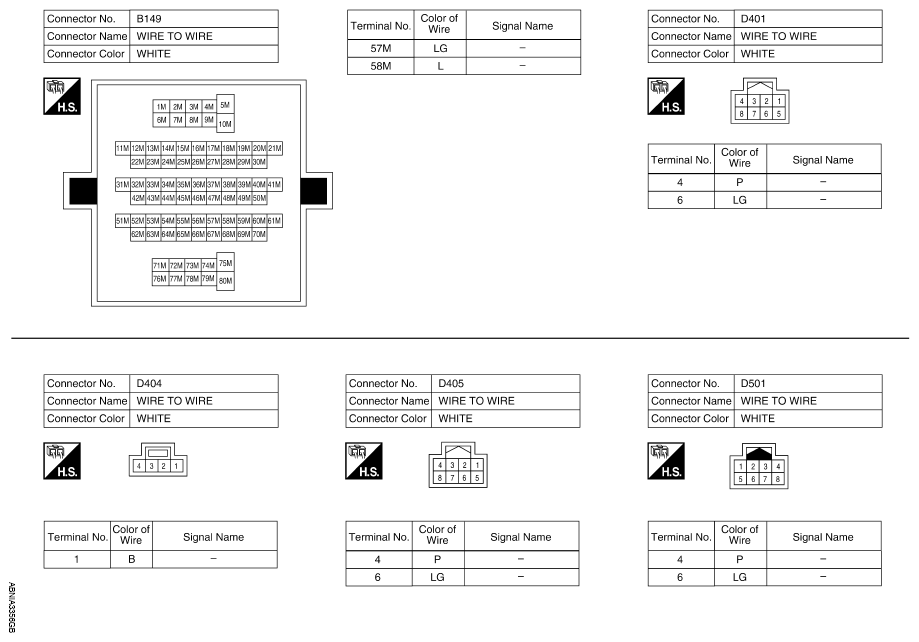

Fig 12: Identifying Meter Connectors (12 Of 13)

G08169319

Courtesy of NISSAN NORTH AMERICA, INC.

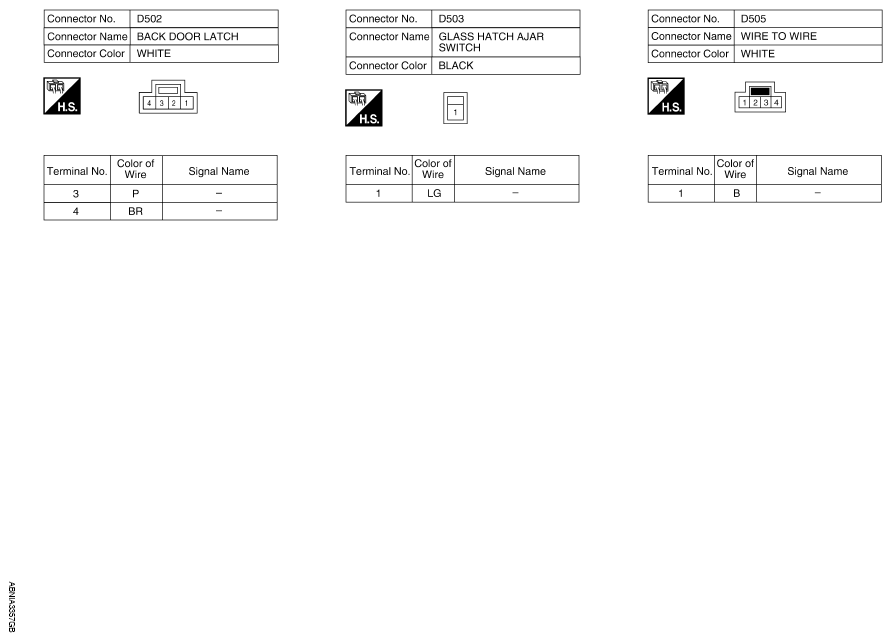

Fig 13: Identifying Meter Connectors (13 Of 13)

G08169320

Courtesy of NISSAN NORTH AMERICA, INC.
