Body Side Trim: Component

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

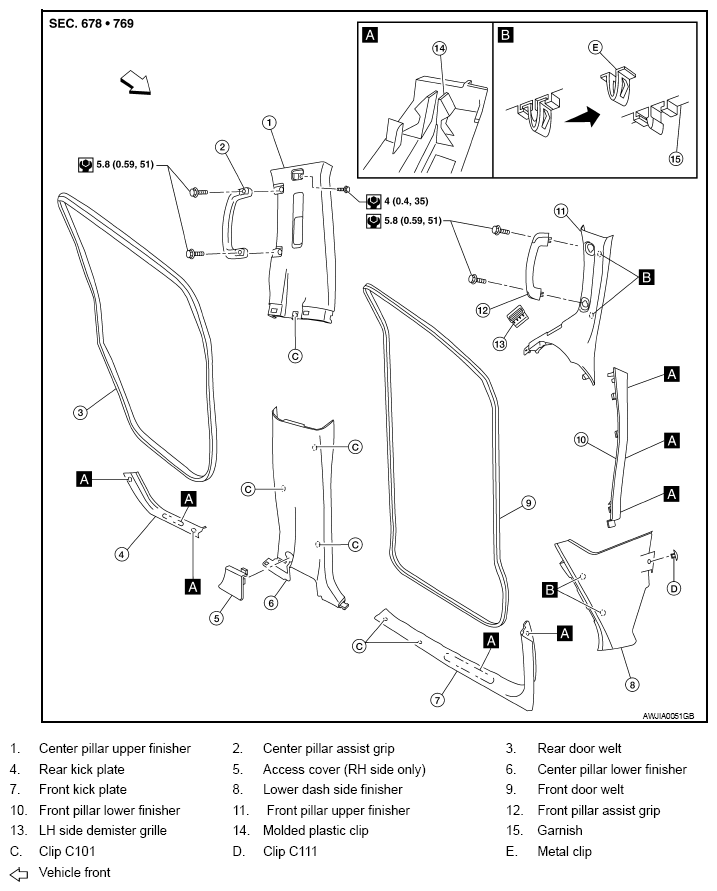

Fig 1: Body Side Trim Replacement Components With Torque Specifications
G08167732Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
  • Wrap a cloth around a suitable tool when removing metal clips from finishers.
  • When removing or installing body side welts, do not allow butyl seal to come in contact with pillar finisher.
