Method A

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach timing light to loop wire as shown.

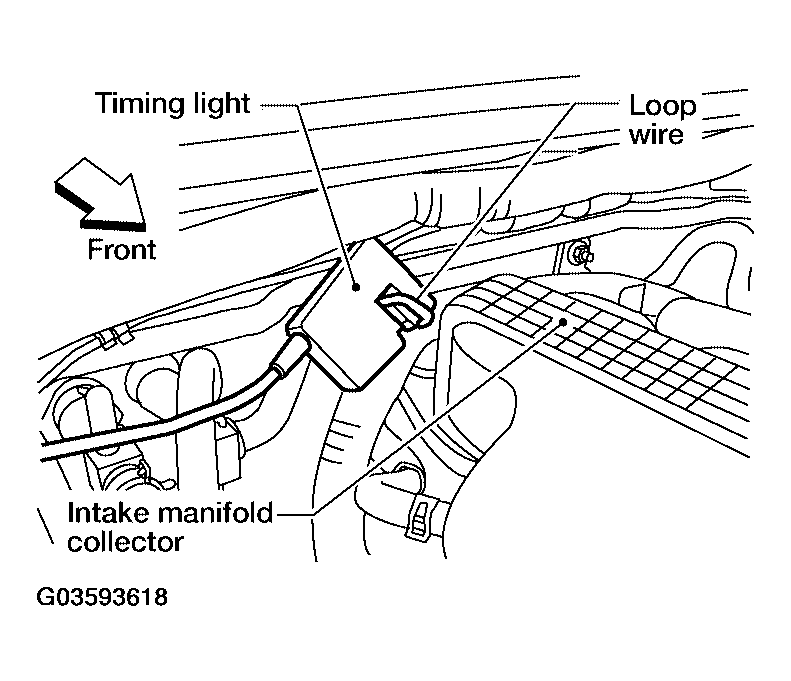

    Fig 1: Attaching Timing Light To Loop Wire
    G03593618Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check ignition timing.

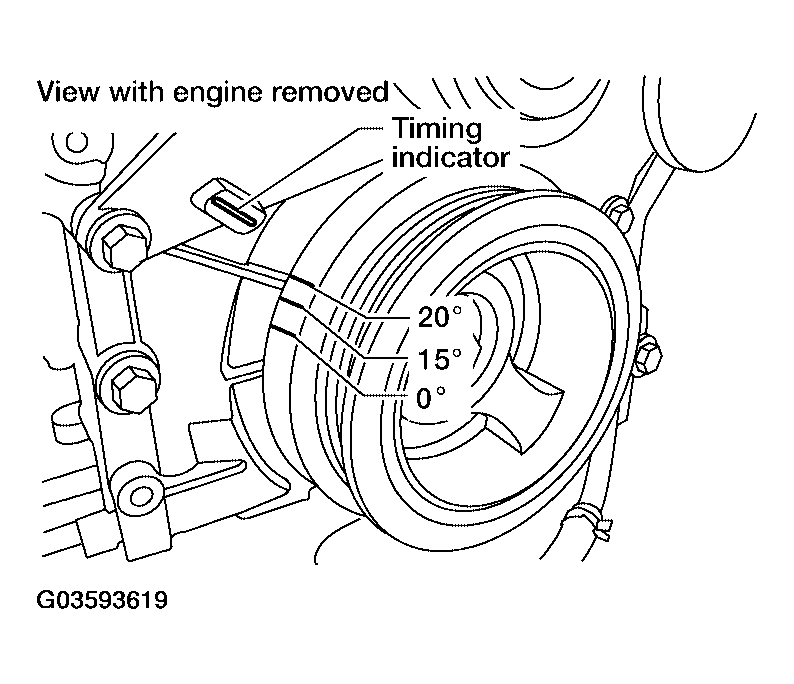

    Fig 2: Identifying Ignition Timing
    G03593619Courtesy of NISSAN MOTOR CO., U.S.A.
