Overall Sequence

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

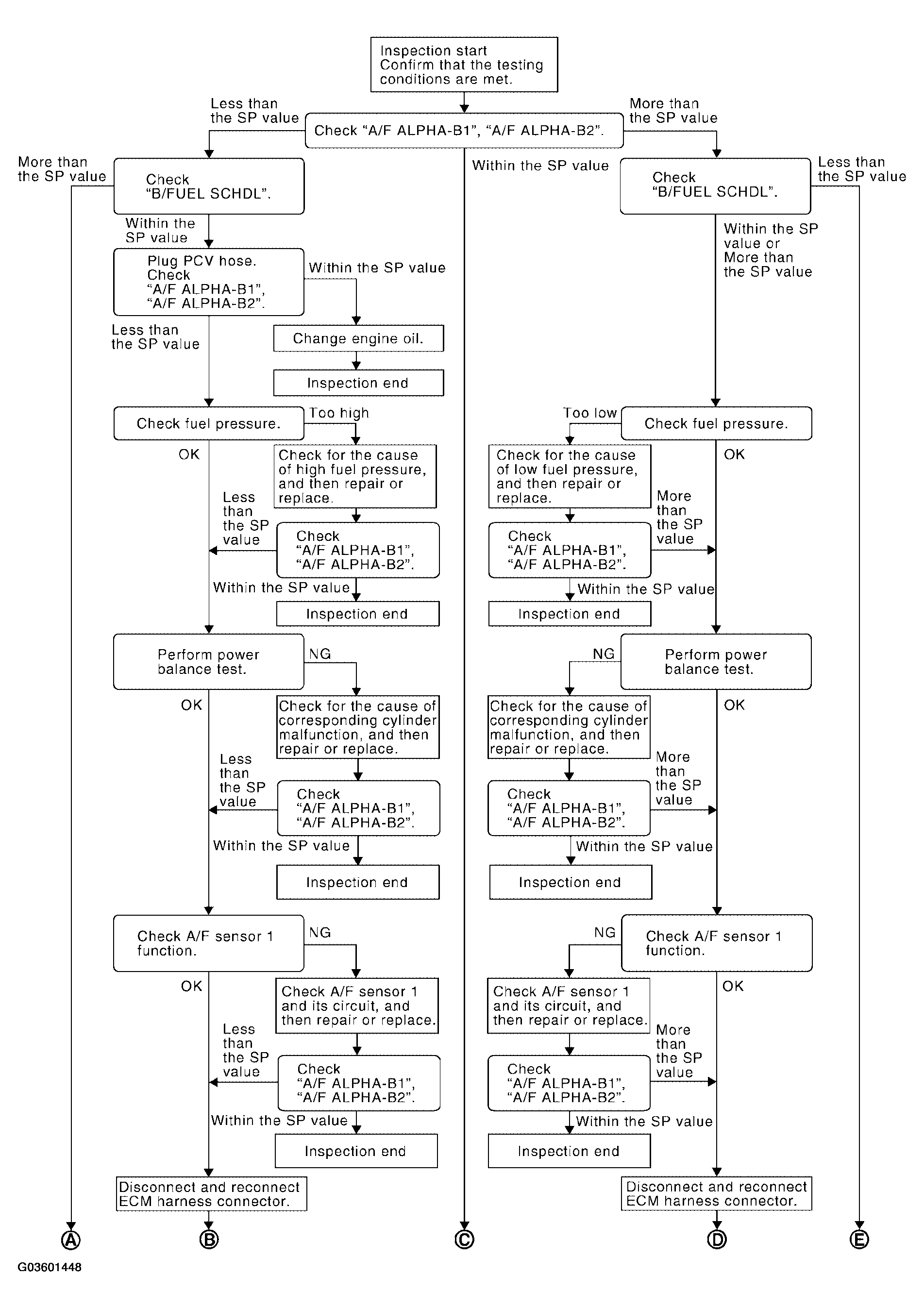

Fig 1: Diagnostic Procedure - Overall Sequence (1 Of 2)
G03601448Courtesy of NISSAN MOTOR CO., U.S.A.

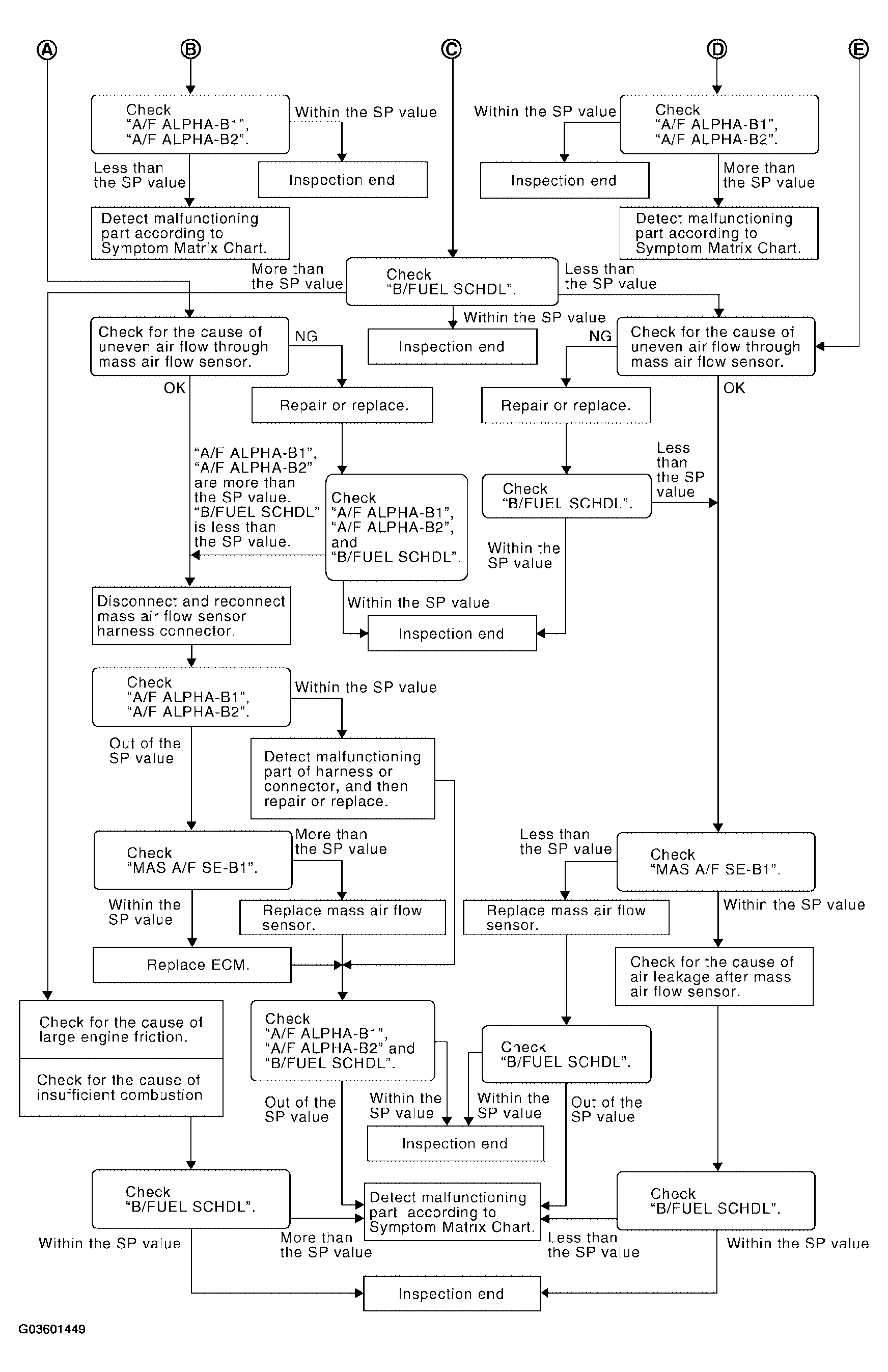

Fig 2: Diagnostic Procedure - Overall Sequence (2 Of 2)
G03601449Courtesy of NISSAN MOTOR CO., U.S.A.
