System - Engine Mechanical & Other

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

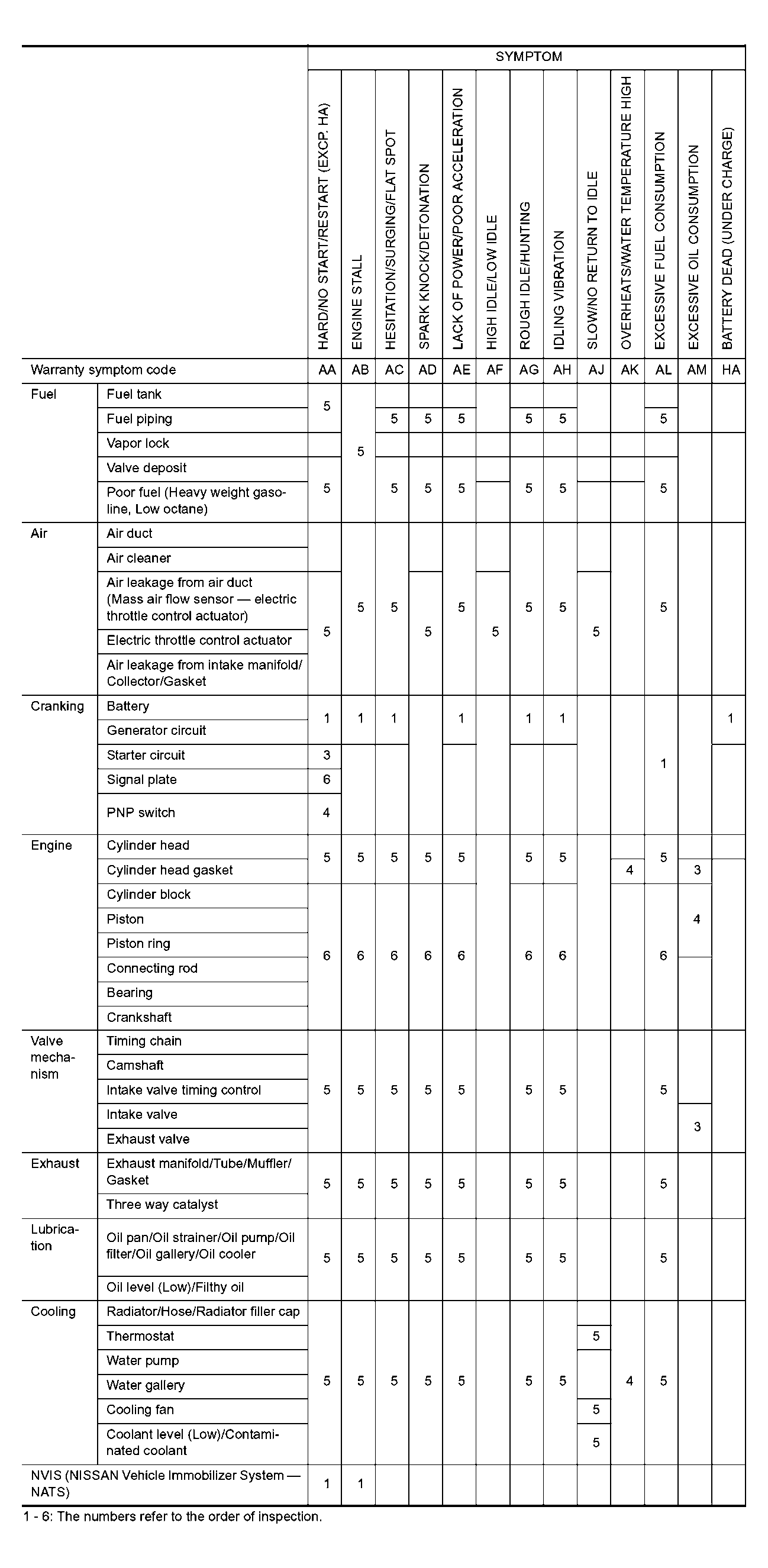

Fig 1: Symptom Matrix Chart (Engine Mechanical & Other)

Courtesy of NISSAN MOTOR CO., U.S.A.
