Mil And Data Link Connector: Wiring Diagram

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS .

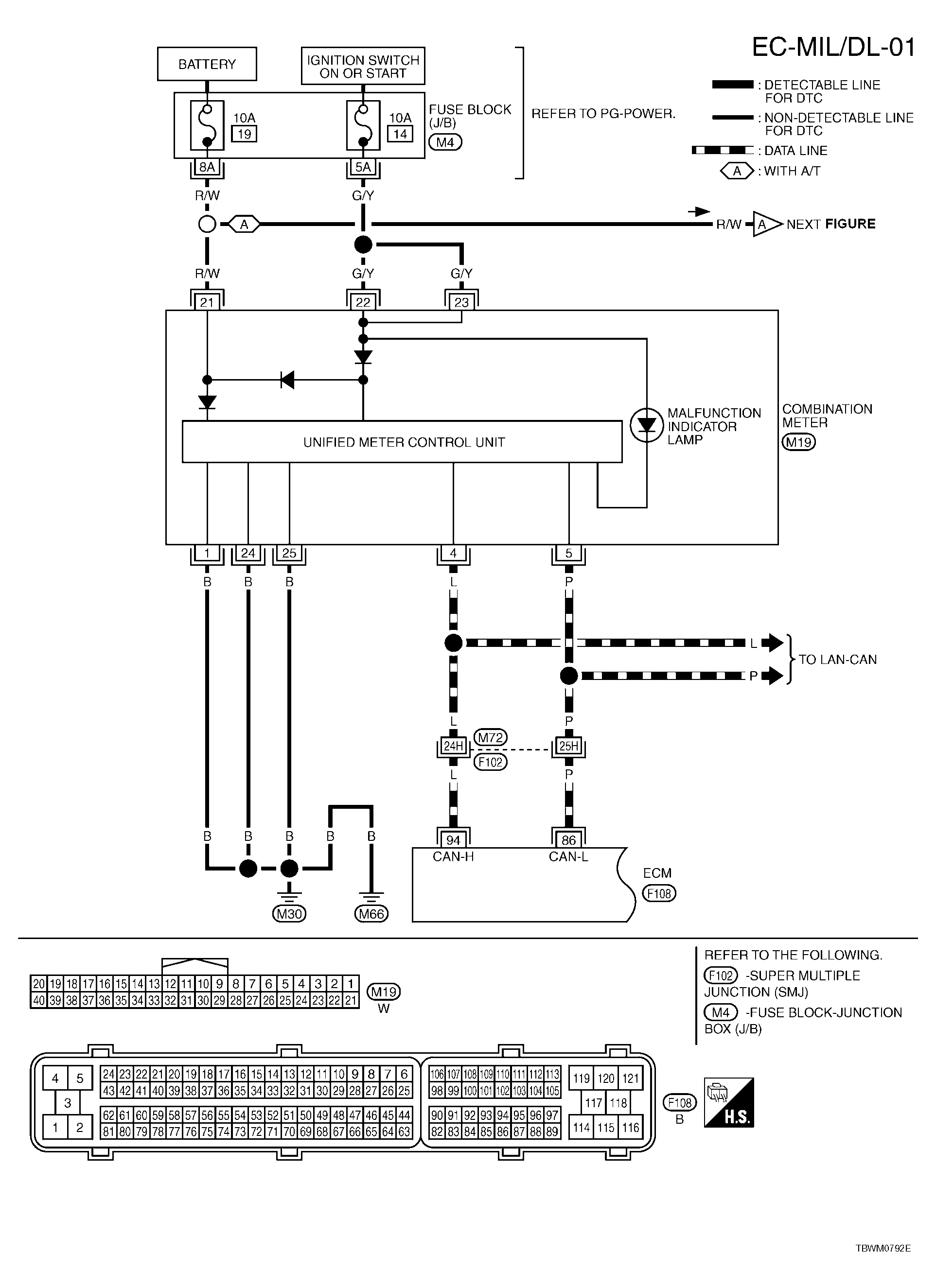

Fig 1: EC-MIL/DL-01 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

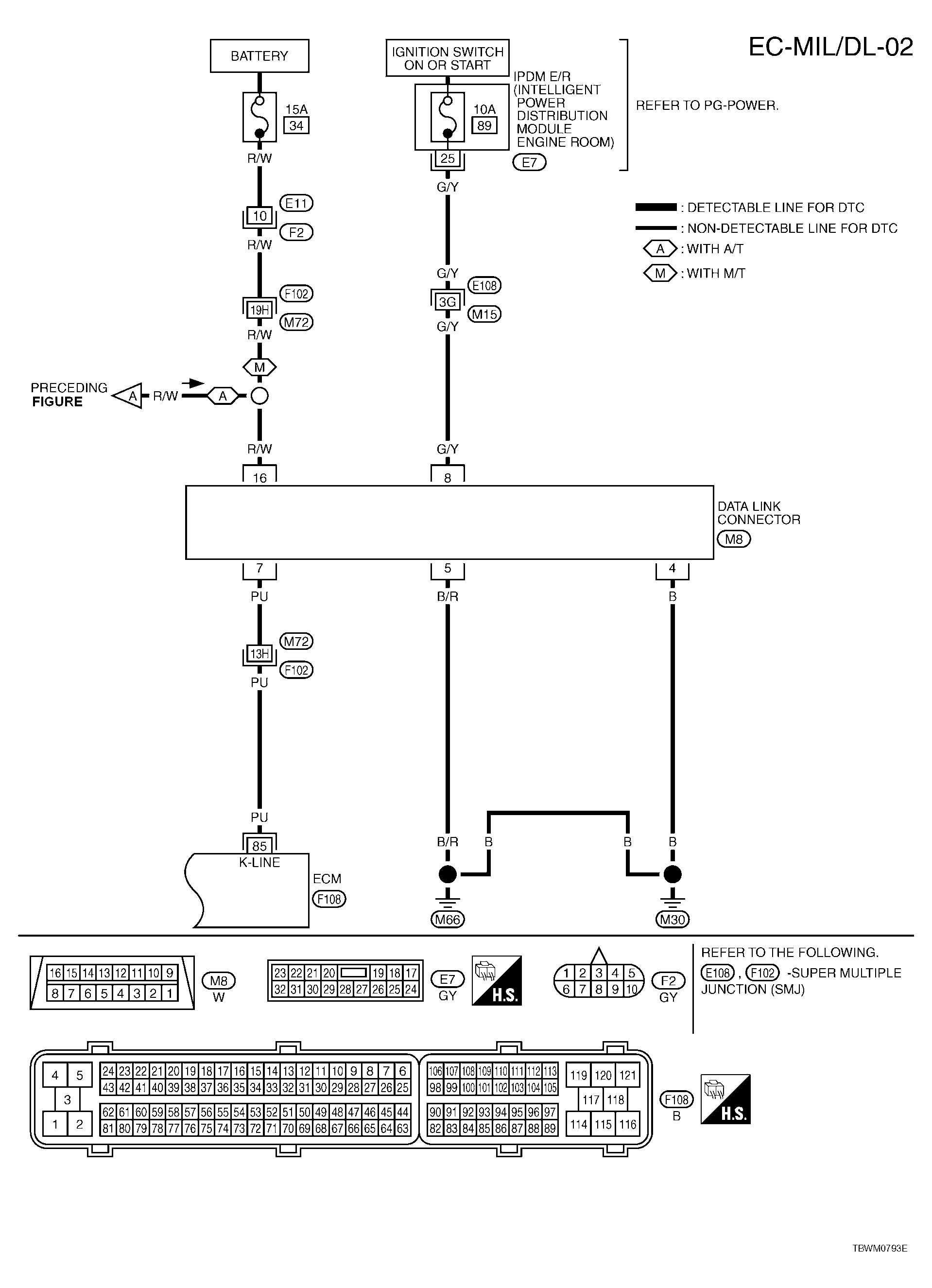

Fig 2: EC-MIL/DL-02 - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.
