CHECK OVERALL FUNCTION
1. Turn ignition switch ON.

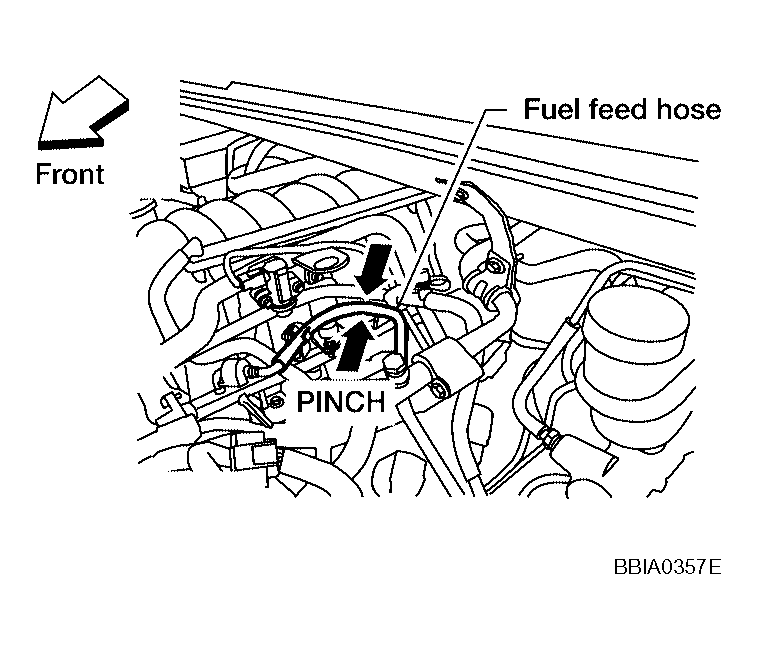

2. Pinch fuel feed hose with two fingers.
  Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.
OK or NG

OK: INSPECTION END

NG: GO TO 2.
CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Turn ignition switch ON.
4. Check voltage between ECM terminal 113 and ground with CONSULT-II or tester.
  Voltage: Battery voltage
OK or NG

OK: GO TO 5.

NG: GO TO 3.
CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
Check voltage between IPDM E/R terminal 46 and ground with CONSULT-II or tester.

Fig 3: Checking Voltage Between IPDM E/R Terminal 46 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Voltage: Battery voltage

OK or NG

OK: GO TO 4.

NG: GO TO 14.
DETECT MALFUNCTIONING PART
Check harness for open or short between IPDM E/R and ECM

: Repair harness or connectors.
CHECK CONDENSER-2 POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect condenser-2 harness connector.
4. Turn ignition switch ON.

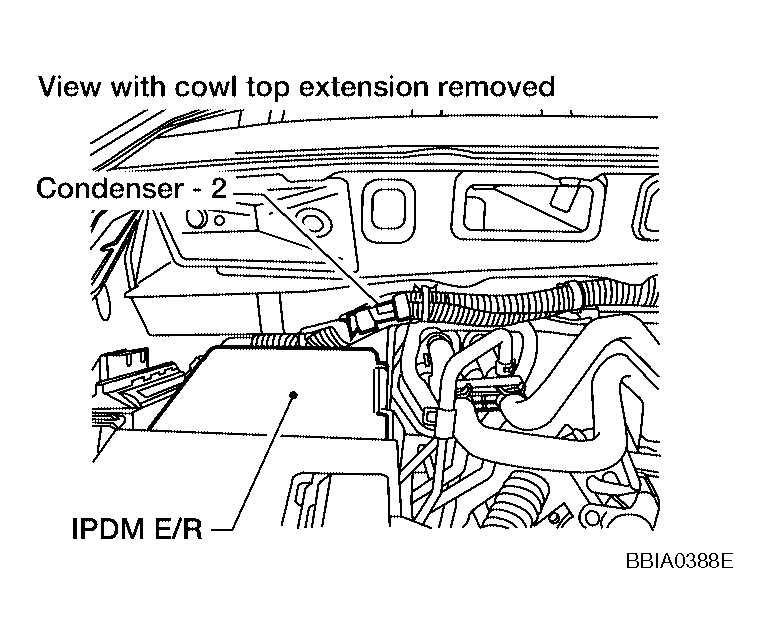

  Fig 4: Identifying IPDM E/R And Condenser-2
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Check voltage between condenser-2 terminal 1 and ground with CONSULT-II or tester.
  Voltage: Battery voltage should exist for 1 second after ignition switch is turned ON.
6. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 8.

NG: GO TO 6.
CHECK 15A FUSE
1. Turn ignition switch OFF.
2. Disconnect 15A fuse.
3. Check 15A fuse.
OK or NG

OK: GO TO 7.

NG: Replace fuse.
CHECK CONDENSER-2 POWER SUPPLY CIRCUIT-II FOR OPEN AND SHORT
1. Disconnect IPDM E/R harness connector E119.
2. Check harness continuity between IPDM E/R terminal 13 and condenser-2 terminal 1.
  Refer to WIRING DIAGRAM .

  Continuity should exist.
3. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 14.

NG: Repair open circuit or short to ground or short to power in harness or connectors.
CHECK CONDENSER-2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between condenser-2 terminal 2 and ground.
  Refer to WIRING DIAGRAM .

  Continuity should exist.
2. Also check harness for short to power.
OK or NG

OK: GO TO 9.

NG: Repair open circuit or short to power in harness or connectors.
CHECK CONDENSER-2
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 10.

NG: Replace condenser-2.
CHECK FUEL PUMP POWER SUPPLY AND GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect "fuel level sensor unit and fuel pump" harness connector.
3. Disconnect IPDM E/R harness connector E119.
4. Disconnect dropping resistor harness connector.
5. Check harness continuity between IPDM E/R terminal 13 and "fuel level sensor unit and fuel pump" terminal 1, "fuel level sensor unit and fuel pump" terminal 2 and dropping resistor terminal 2, dropping resistor terminal 1 and ground.
  Refer to WIRING DIAGRAM .

  Continuity should exist.
6. Also check harness for short to ground and short to power.
OK or NG

OK: GO TO 12.

NG: GO TO 11.
DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E41, C1
- Harness for open or short between fuel pump and IPDM E/R
- Harness for open or short between fuel pump and dropping resistor
- Harness for open or short between dropping resistor and ground
  : Repair open circuit or short to ground or short to power in harness or connectors.
CHECK DROPPING RESISTOR
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 13.

NG: Replace dropping resistor.
CHECK FUEL PUMP
Refer to "COMPONENT INSPECTION ".

OK or NG

OK: GO TO 14.

NG: Replace "fuel level sensor unit and fuel pump".
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

OK or NG

OK: Replace IPDM E/R.

NG: Repair or replace harness or connectors.
