Work Flow Chart

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

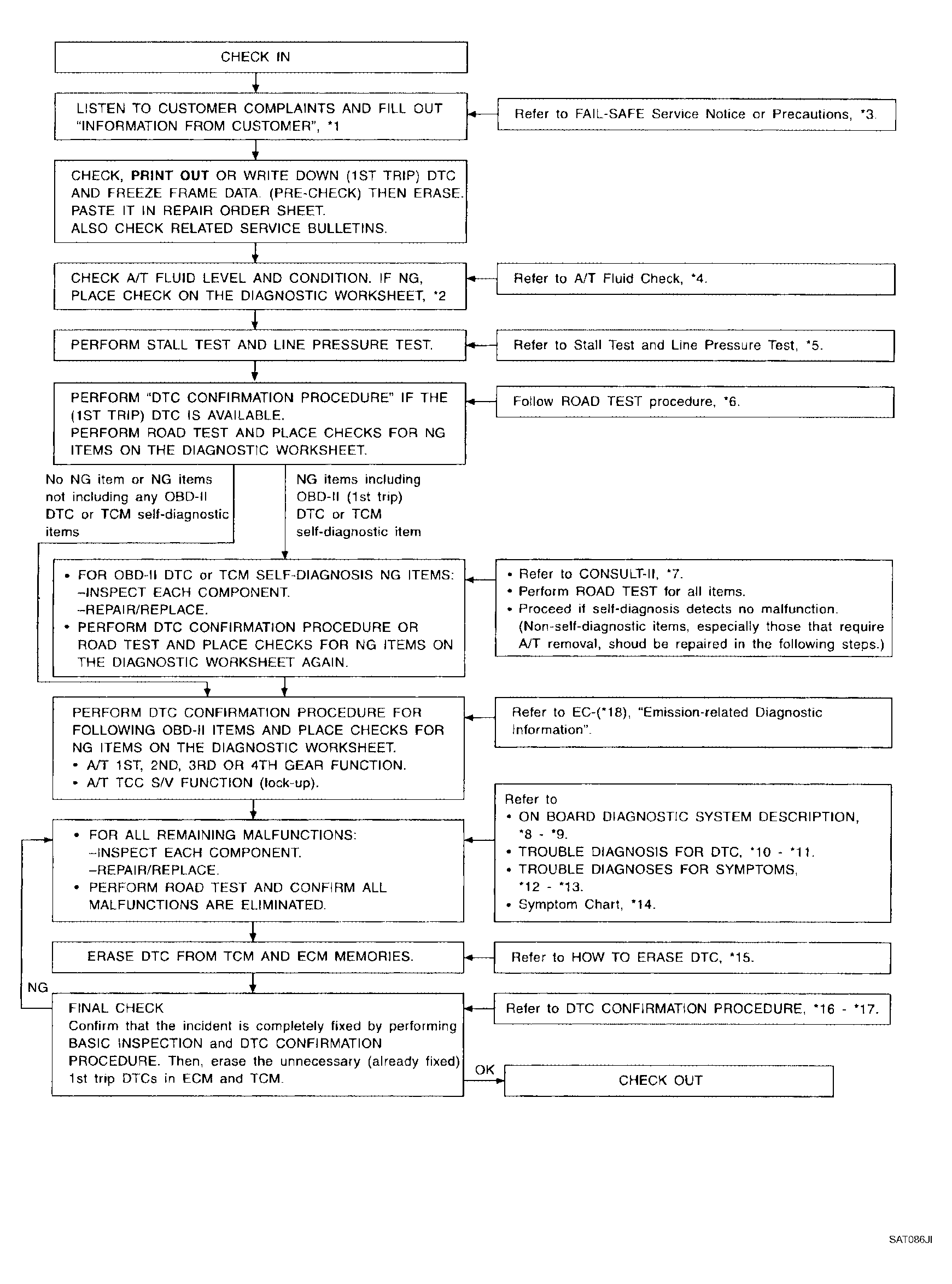

Fig 1: Work Flow Chart

G04197351

Courtesy of NISSAN MOTOR CO., U.S.A.

WORK FLOW CHART REFERENCES

*1. INFORMATION FROM CUSTOMER

*2. DIAGNOSTIC WORKSHEET

*3. ATF COOLER SERVICE

*4. TROUBLE DIAGNOSIS - BASIC INSPECTION

*5. STALL TEST and LINE PRESSURE TEST

*6. JUDGEMENT OF LINE PRESSURE TEST

*7. SELF-DIAGNOSTIC PROCEDURE (WITH CONSULT-II)

*8. ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

*9. ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

*10. ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

*11. ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

*12. TROUBLE DIAGNOSIS FOR SYMPTOMS

*13. TROUBLE DIAGNOSIS FOR SYMPTOMS

*14. TROUBLE DIAGNOSIS - GENERAL DESCRIPTION

*15. HOW TO ERASE DTC

*16. DTC P0705 PARK/NEUTRAL POSITION SWITCH

*17. DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER SOURCE)

*18. EMISSION-RELATED DIAGNOSTIC INFORMATION
