Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

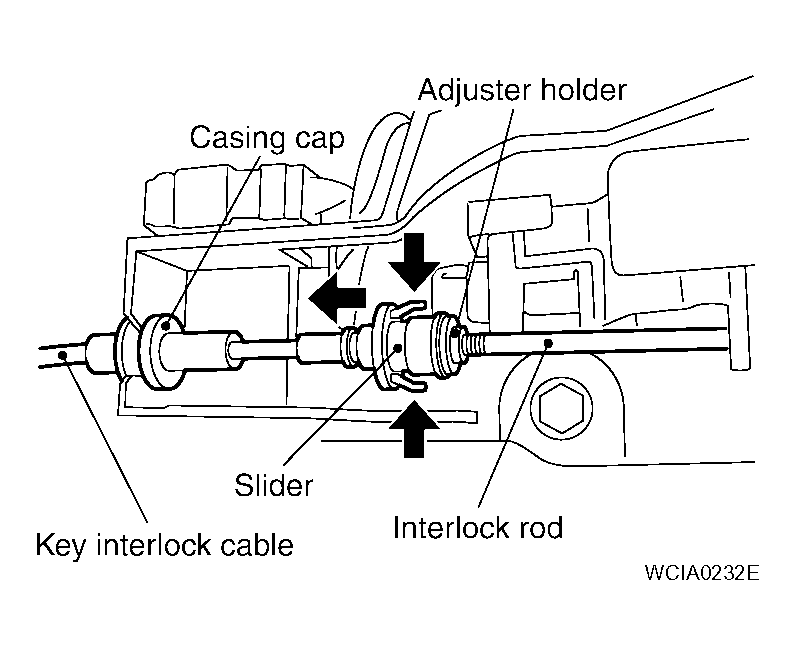

  1. Unlock slider by squeezing lock tabs on slider from adjuster holder.
  2. Remove casing cap from bracket of control device and remove interlock rod from cable.
    Fig 1: Unlocking Slider By Squeezing Lock Tabs
    G04197648Courtesy of NISSAN MOTOR CO., U.S.A.

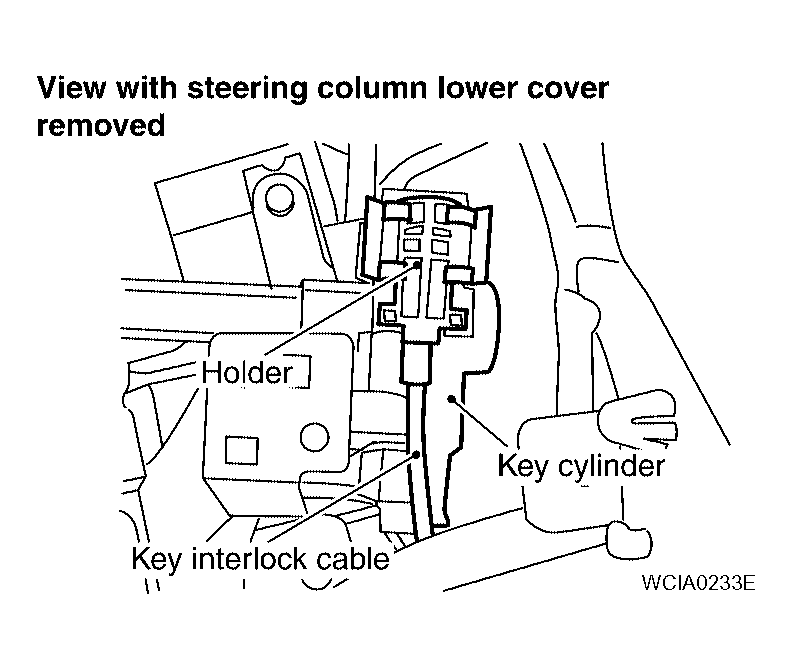

  3. Remove holder from key cylinder and remove key interlock cable.
    Fig 2: Identifying Holder From Key Cylinder
    G04197649Courtesy of NISSAN MOTOR CO., U.S.A.
