Section 2369 (Automatic Transmission - Component Testing (Re4F04B)): Overhaul: Components

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

For GI, go to GENERAL INFORMATION article.

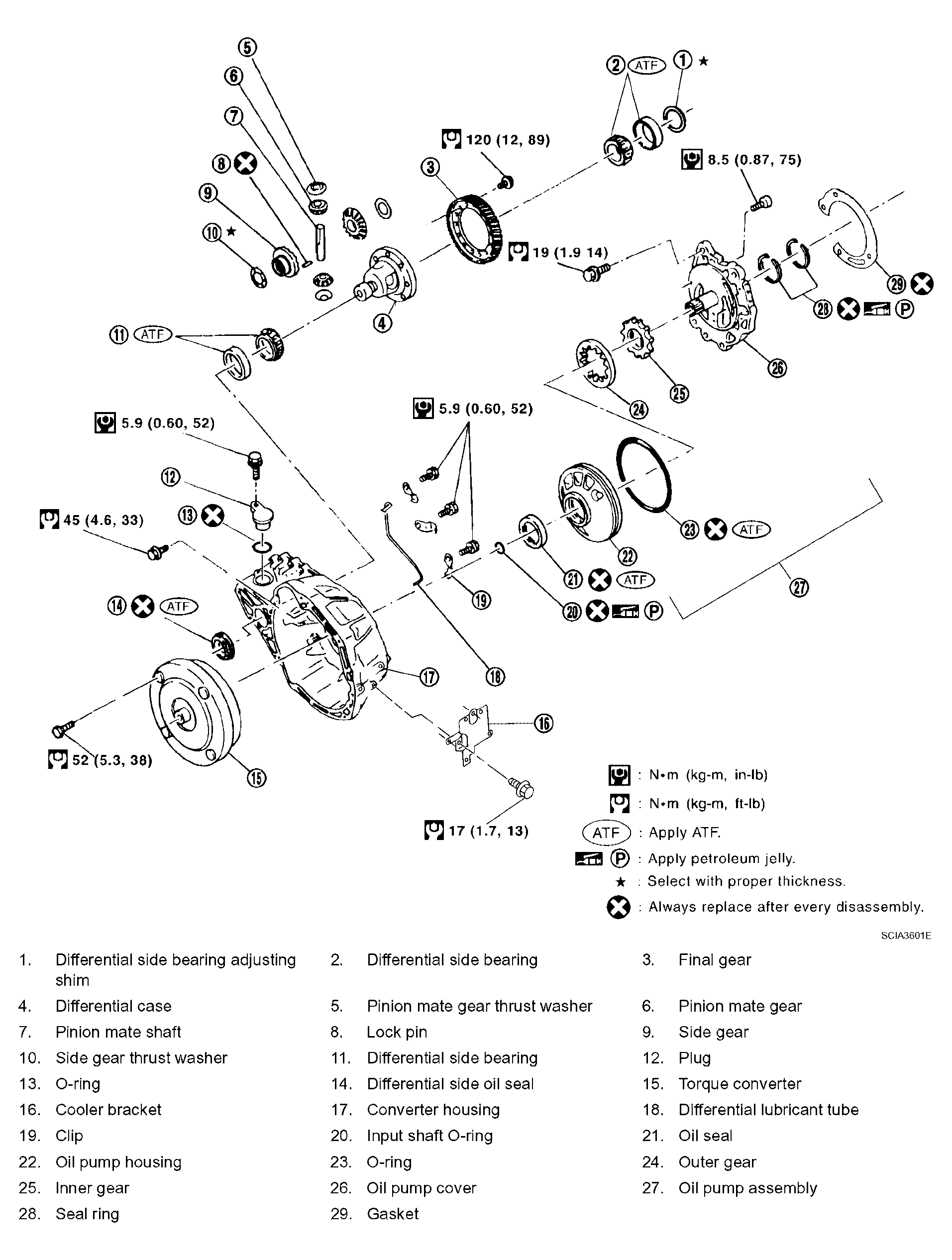

Fig 1: Overhaul Replacement Components With Torque Specifications (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

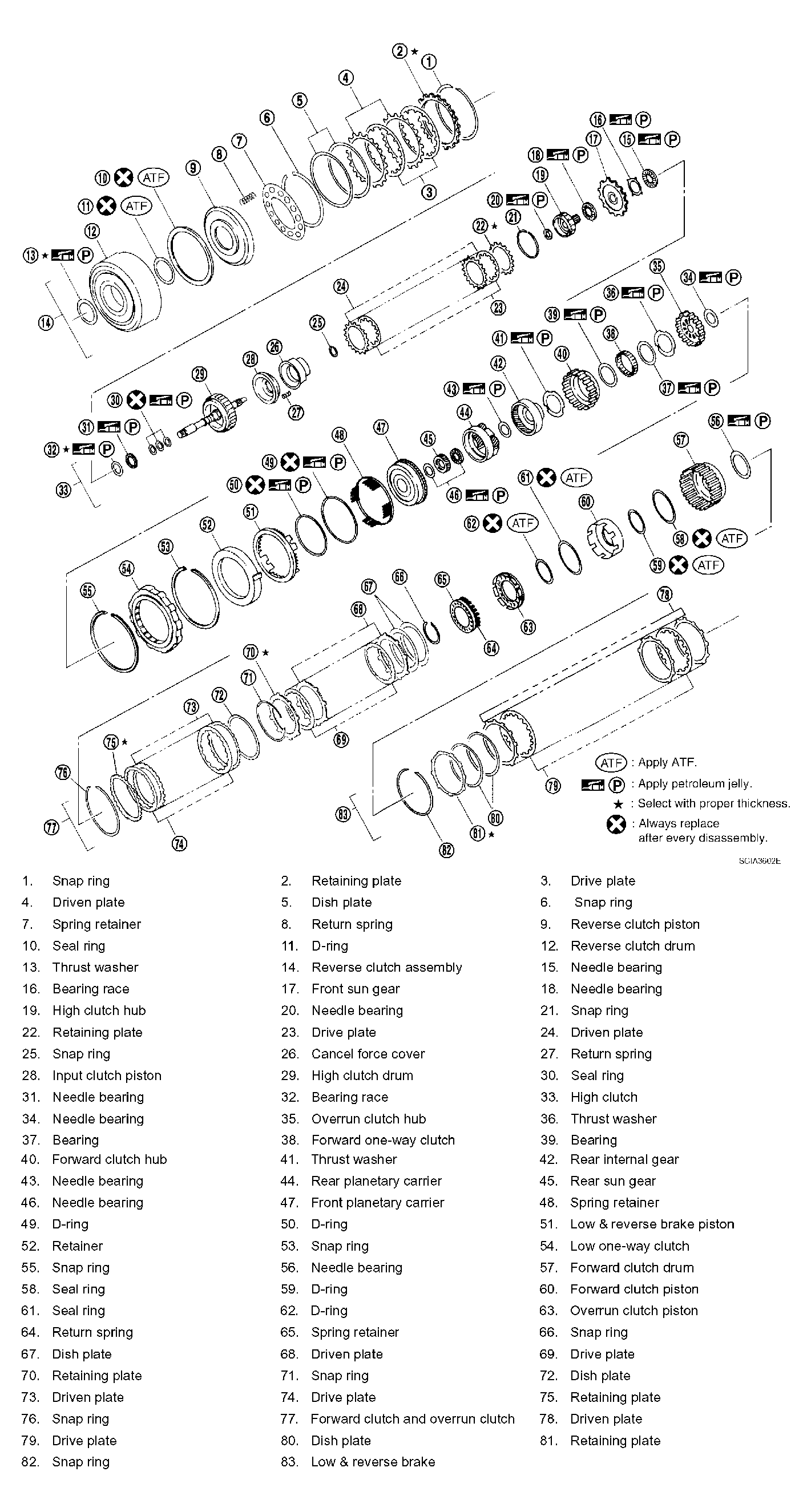

Fig 2: Overhaul Replacement Components With Torque Specifications (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

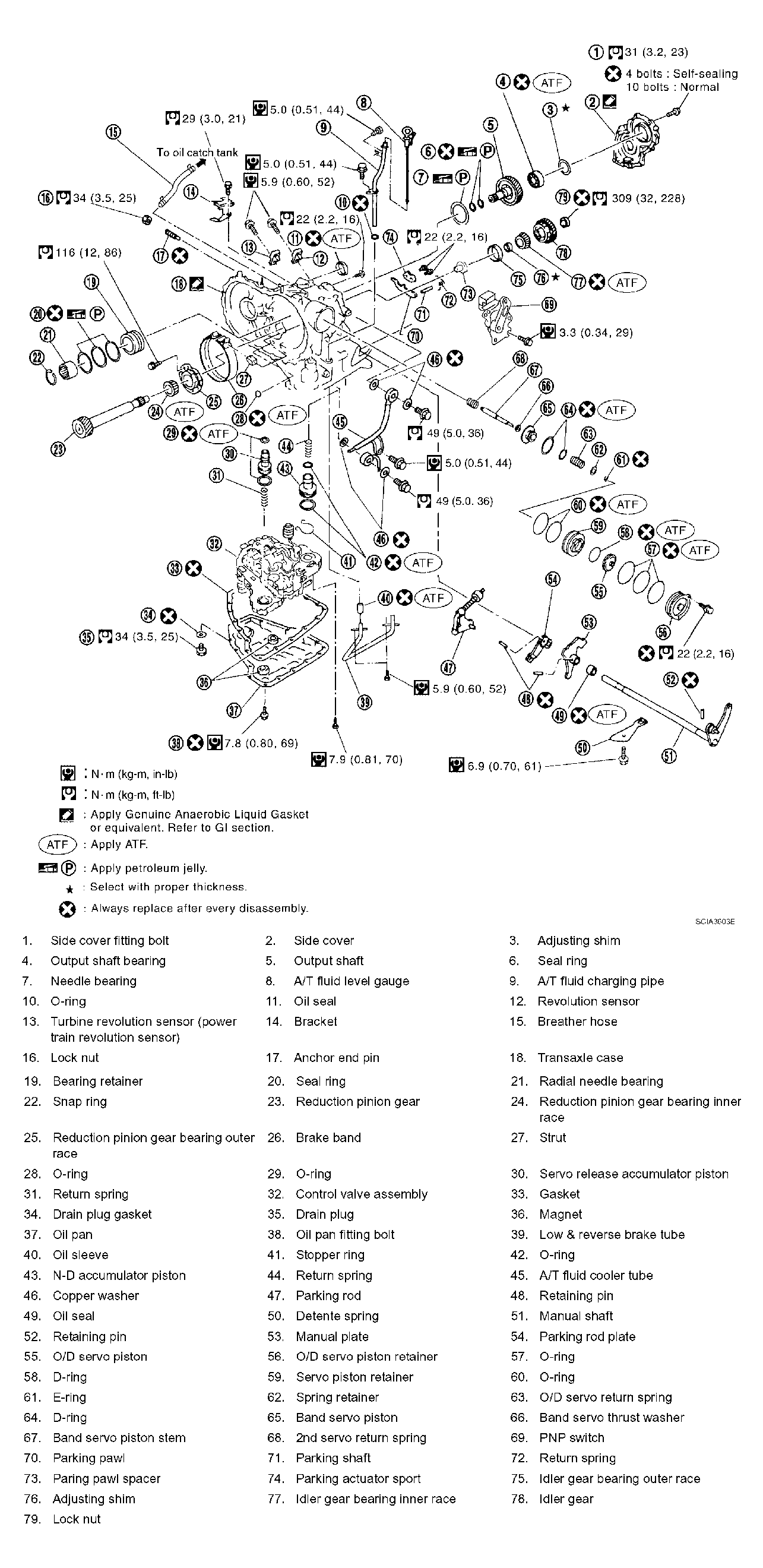

Fig 3: Overhaul Replacement Components With Torque Specifications (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
