Control Valve Assembly: Assembly

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install upper, inter and lower body.
1. Place oil circuit of upper body face up. Install steel balls in their proper positions.

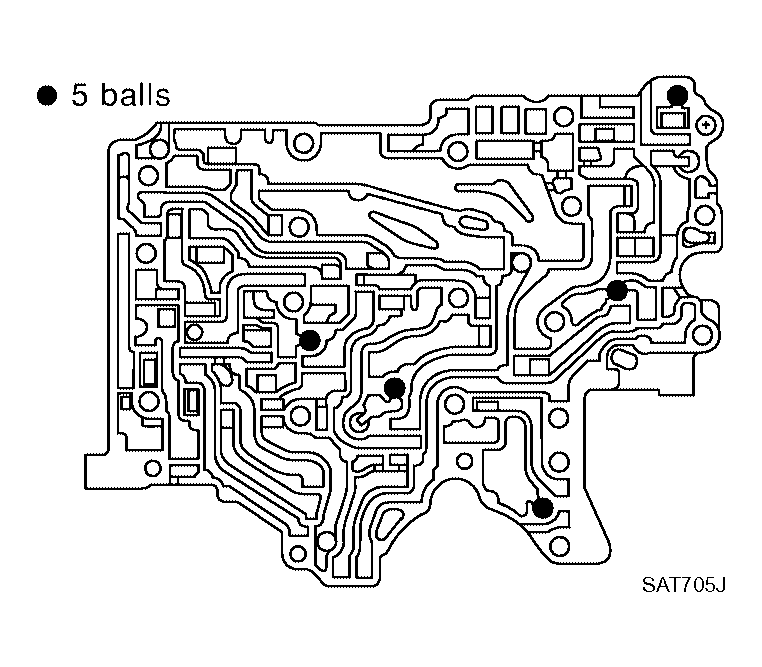

  Fig 1: Identifying Steel Balls
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install reamer bolts f from bottom of upper body. Using reamer bolts as guides, install new separating plate as a set.
  CAUTION: Do not reuse separating plate.

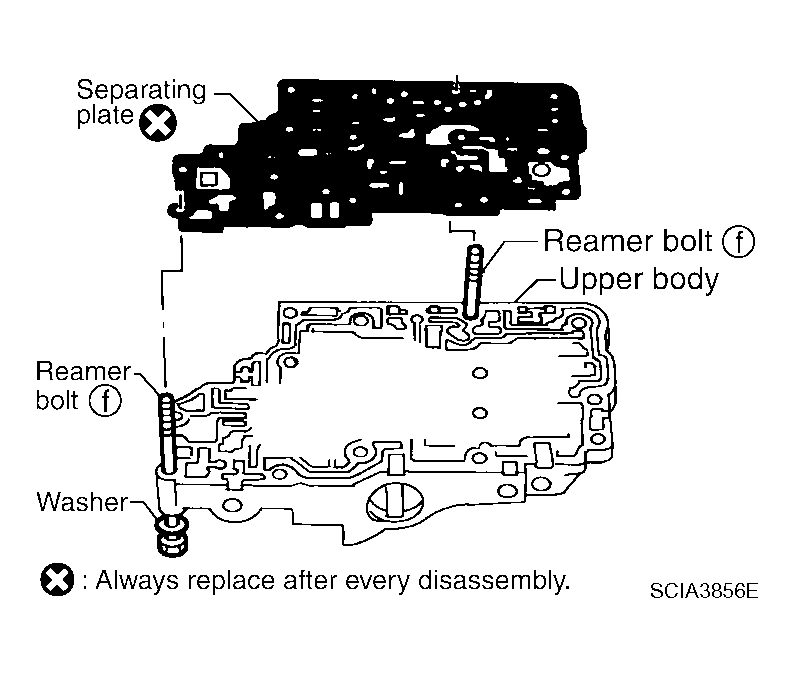

  Fig 2: Identifying Reamer Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install pilot filter.

  Fig 3: Identifying Pilot Filter
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Place lower body as shown (side of inter body face up). Install steel balls in their proper positions.

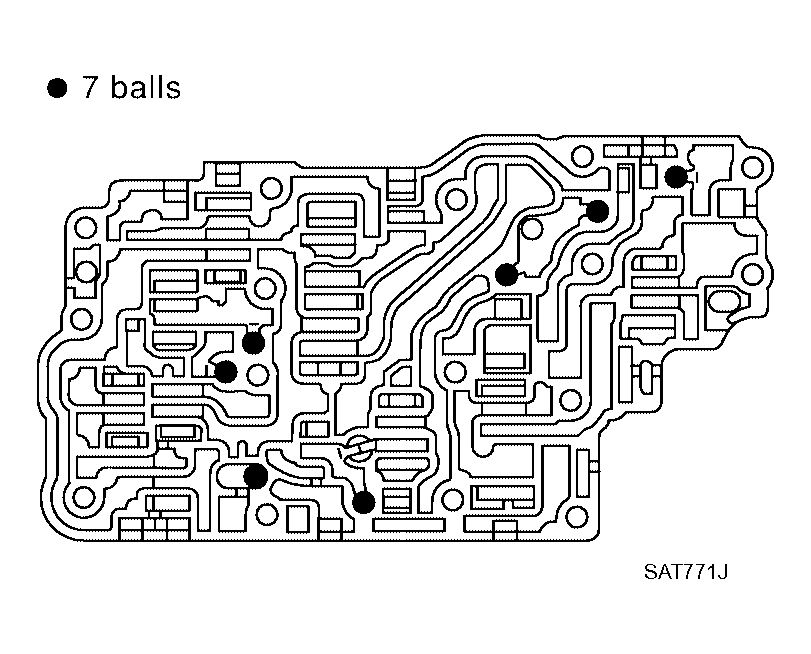

  Fig 4: Identifying Steel Balls
  Courtesy of NISSAN MOTOR CO., U.S.A.
5. Install inter body on upper body using reamer bolts f as guides.
  CAUTION: Be careful not to dislocate or drop steel balls.

  Fig 5: Identifying Inter Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
6. Install check balls and oil cooler relief valve springs in their proper positions in lower body.

  Fig 6: Identifying Check Balls And Oil Cooler Relief Valve Springs
  Courtesy of NISSAN MOTOR CO., U.S.A.
7. Install bolts e from bottom of lower body. Using bolts e as guides, install new separating plate as a set.
  CAUTION: Do not reuse separating plate.
8. Temporarily install support plates on lower body.

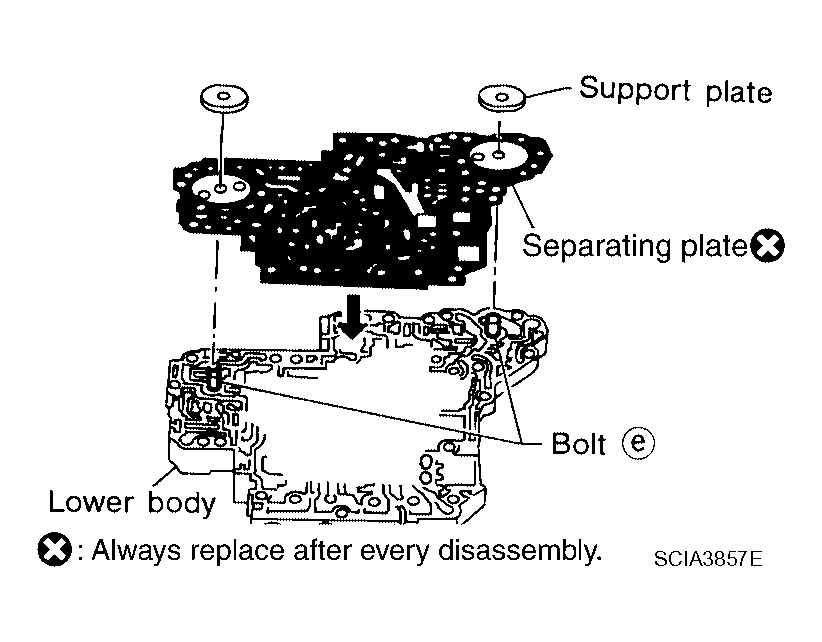

  Fig 7: Identifying Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
9. Install lower body on inter body using reamer bolts f as guides and tighten reamer bolts f slightly.

  Fig 8: Identifying Lower Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install new O-rings to solenoid valves and terminal body.
CAUTION:
- Do not reuse O-rings.
- Apply ATF to O-rings.

  Fig 9: Identifying O-Rings
  Courtesy of NISSAN MOTOR CO., U.S.A.

Install and tighten bolts.

Bolt length, number and location:

BOLT SPECIFICATIONS

Bolt symbol	a	b	c	d	e	f	g
Bolt length "l" mm (in) Courtesy of NISSAN MOTOR CO., U.S.A.	13.5 (0.531)	58.0 (2.283)	40.0 (1.575)	66.0 (2.598)	33.0 (1.299)	78.0 (3.071)	18.0 (0.709)
Number of bolts	6	3	6	11	2	2	1

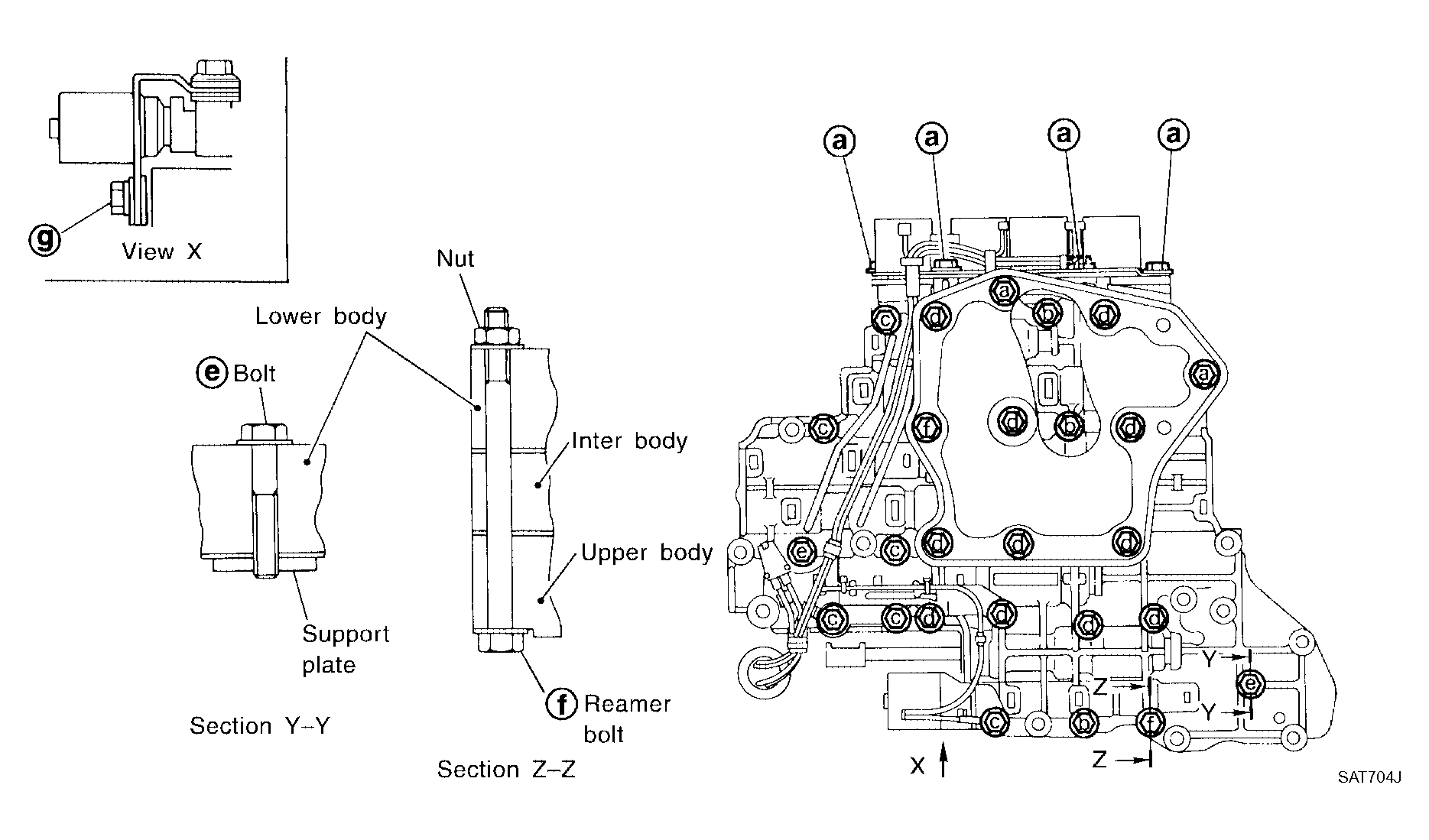

Fig 10: Tightening Bolts In Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.

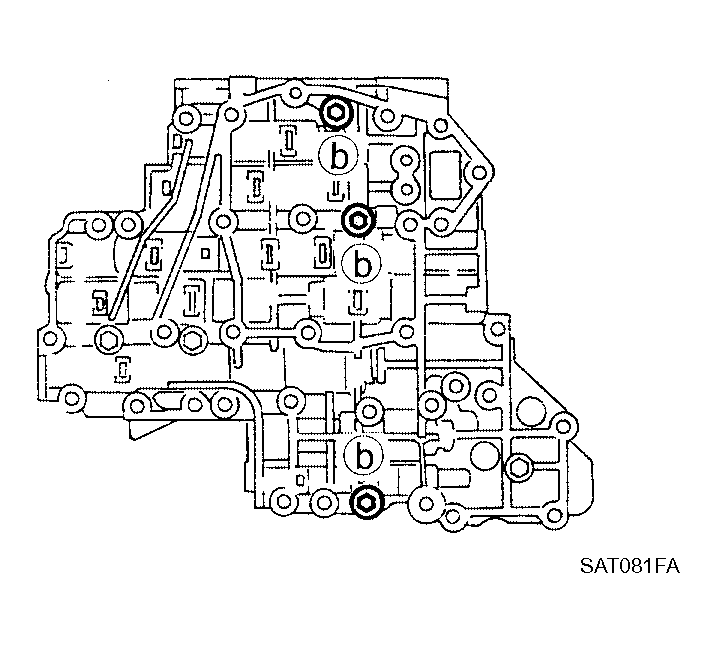

Install and tighten bolts b to specified torque.
Specified torque: Refer to " COMPONENTS ".

Fig 11: Tightening Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install solenoid valve assembly and line pressure solenoid valve to lower body.

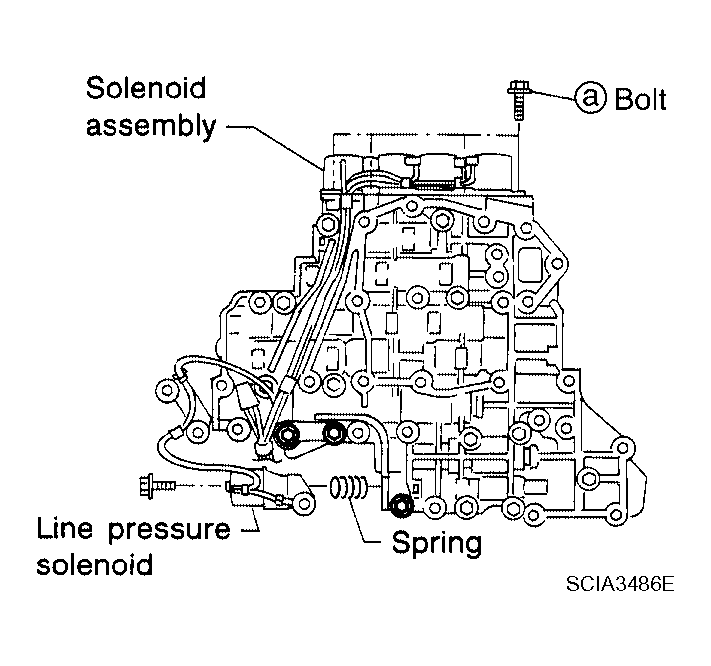

Fig 12: Identifying Solenoid Valve Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Set oil strainer, then tighten bolts a, d, f and nuts to specified torque.
Specified torque: Refer to " COMPONENTS ".

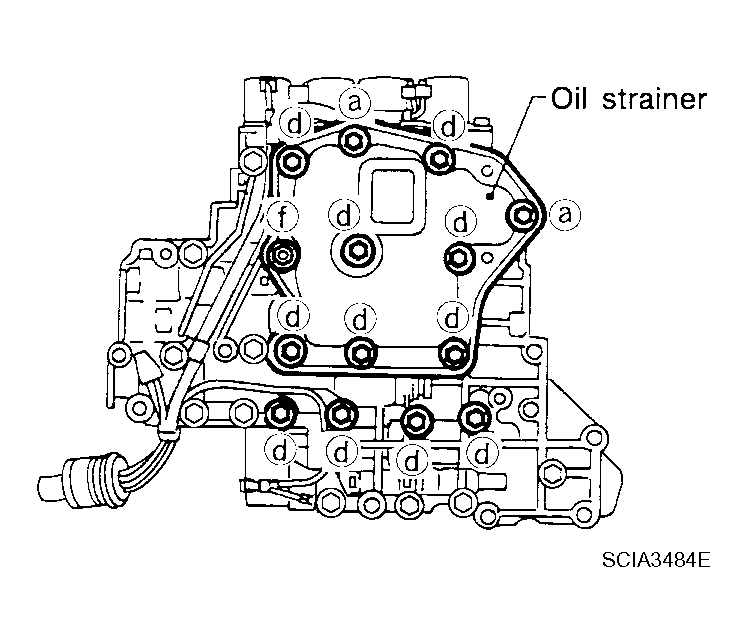

Fig 13: Tightening Bolts In Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten bolts e to specified torque.
Specified torque: Refer to " COMPONENTS ".

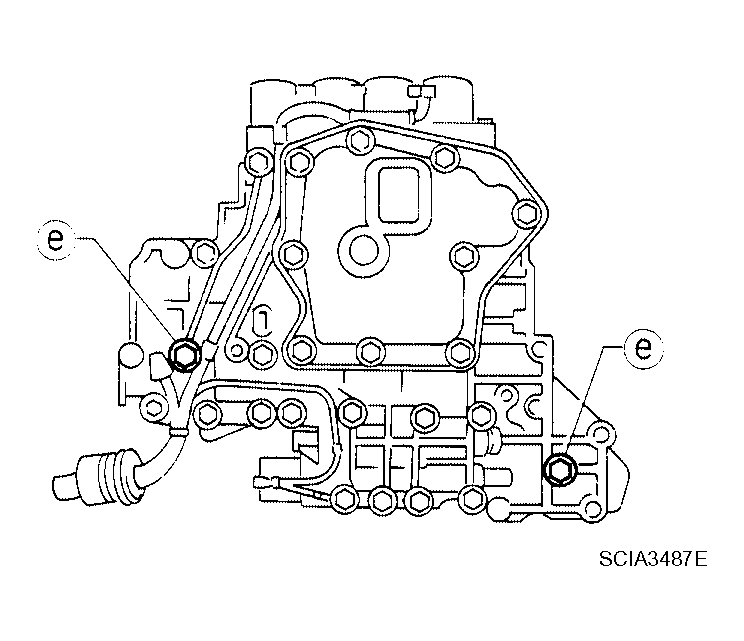

Fig 14: Tightening Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
