Control Valve Upper Body: Assembly: Notes

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Lay control valve body down when installing valves. Do not stand the control valve body upright.

Fig 1: Identifying Sliding Surfaces Of Valves, Sleeves And Plugs
Courtesy of NISSAN MOTOR CO., U.S.A.

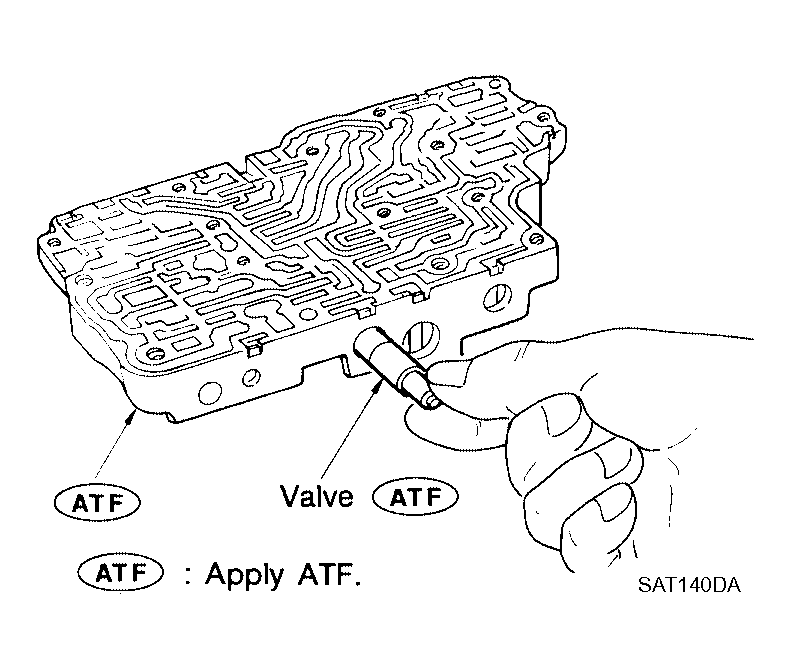

Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.
CAUTION:
- Install each control valve one by one.
- Install control valves after checking, because some of them are similar.
- Be careful not to scratch or damage valve body.

  Fig 2: Identifying Control Valves
  Courtesy of NISSAN MOTOR CO., U.S.A.

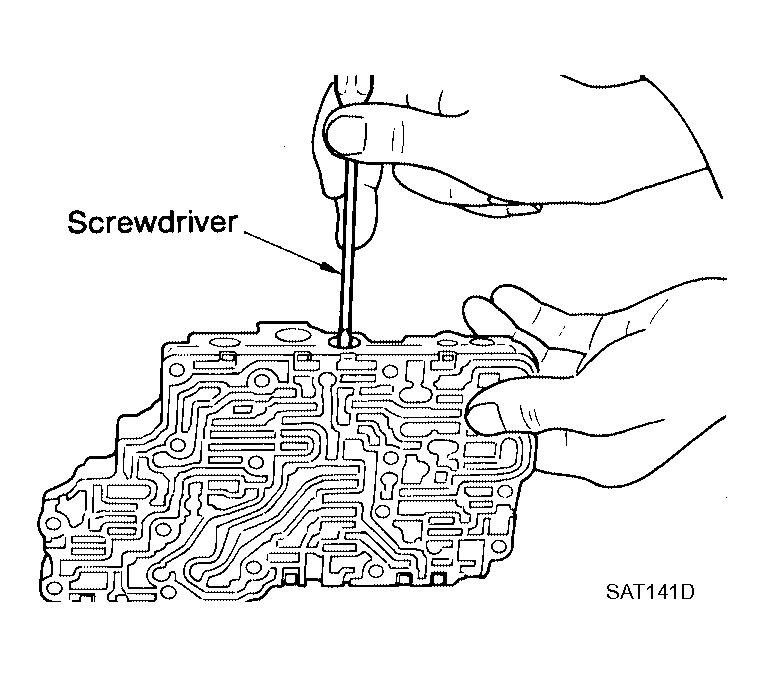

- Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

  Fig 3: Identifying Valves
  Courtesy of NISSAN MOTOR CO., U.S.A.
