Vacuum Hose Drawing

WARNING: This page is about a different car, the 2011 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

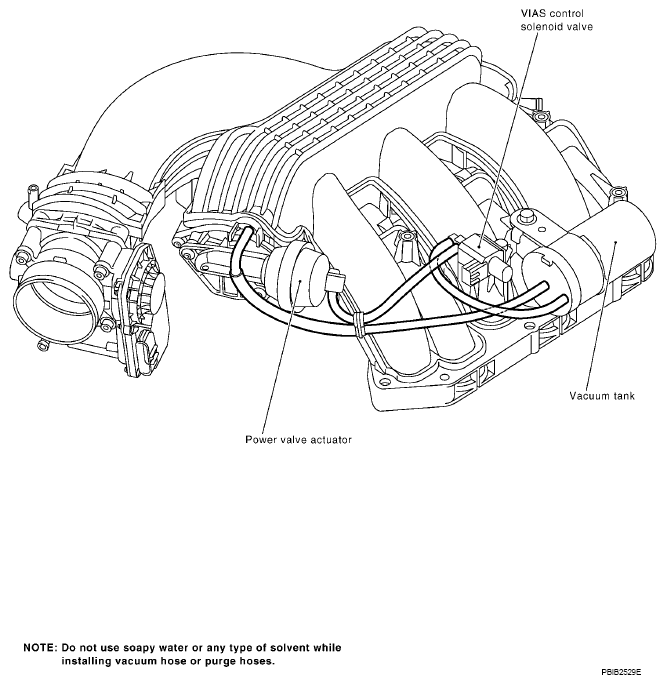

Fig 1: Identifying Power Valve Actuator, Vacuum Tank And VIAS Control Solenoid Valve

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
