Component Location Graphics

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

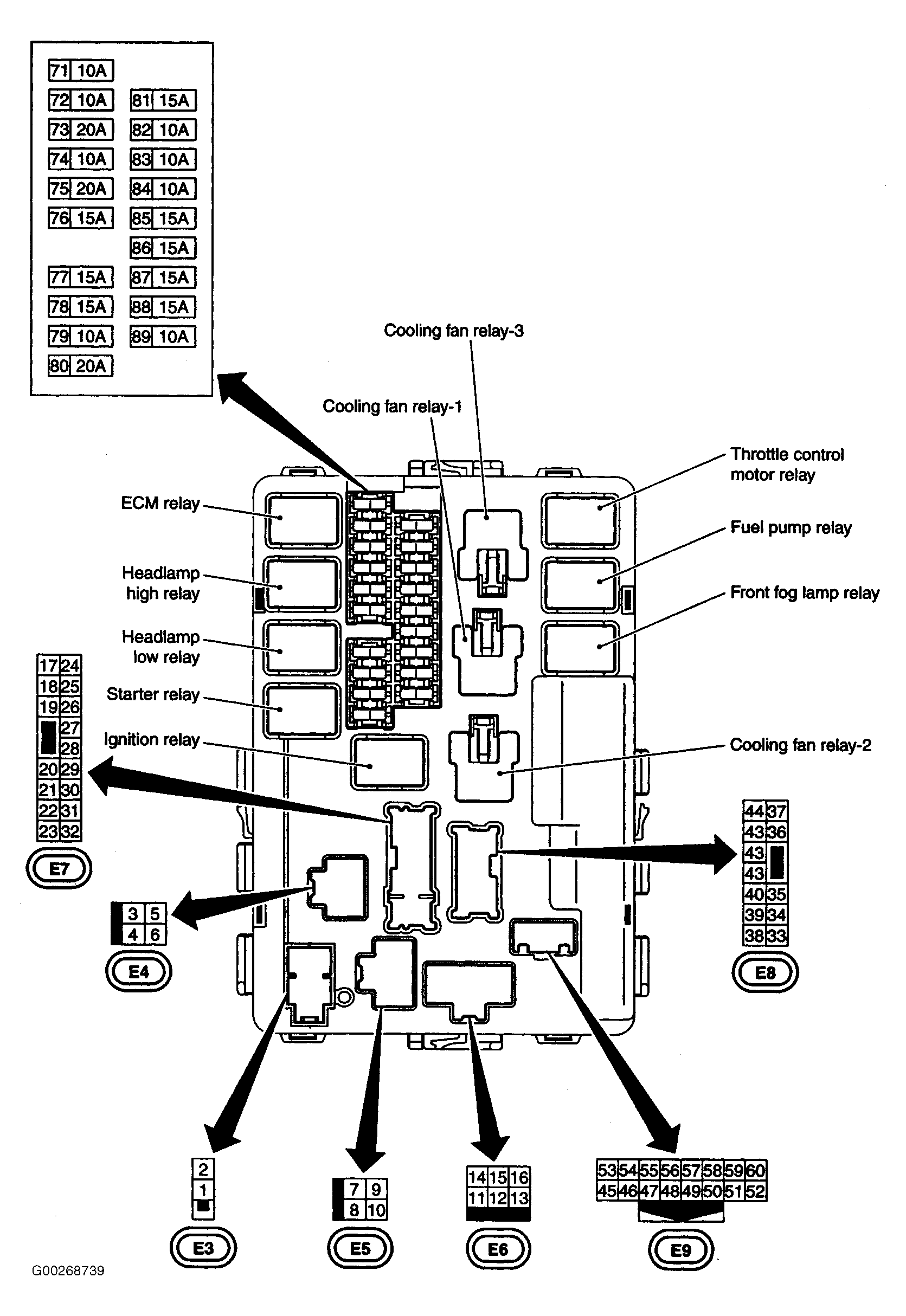

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00268739

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Dash & Center Console

G00263228

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Engine Compartment

G00263230

Courtesy of NISSAN MOTOR CO., U.S.A.

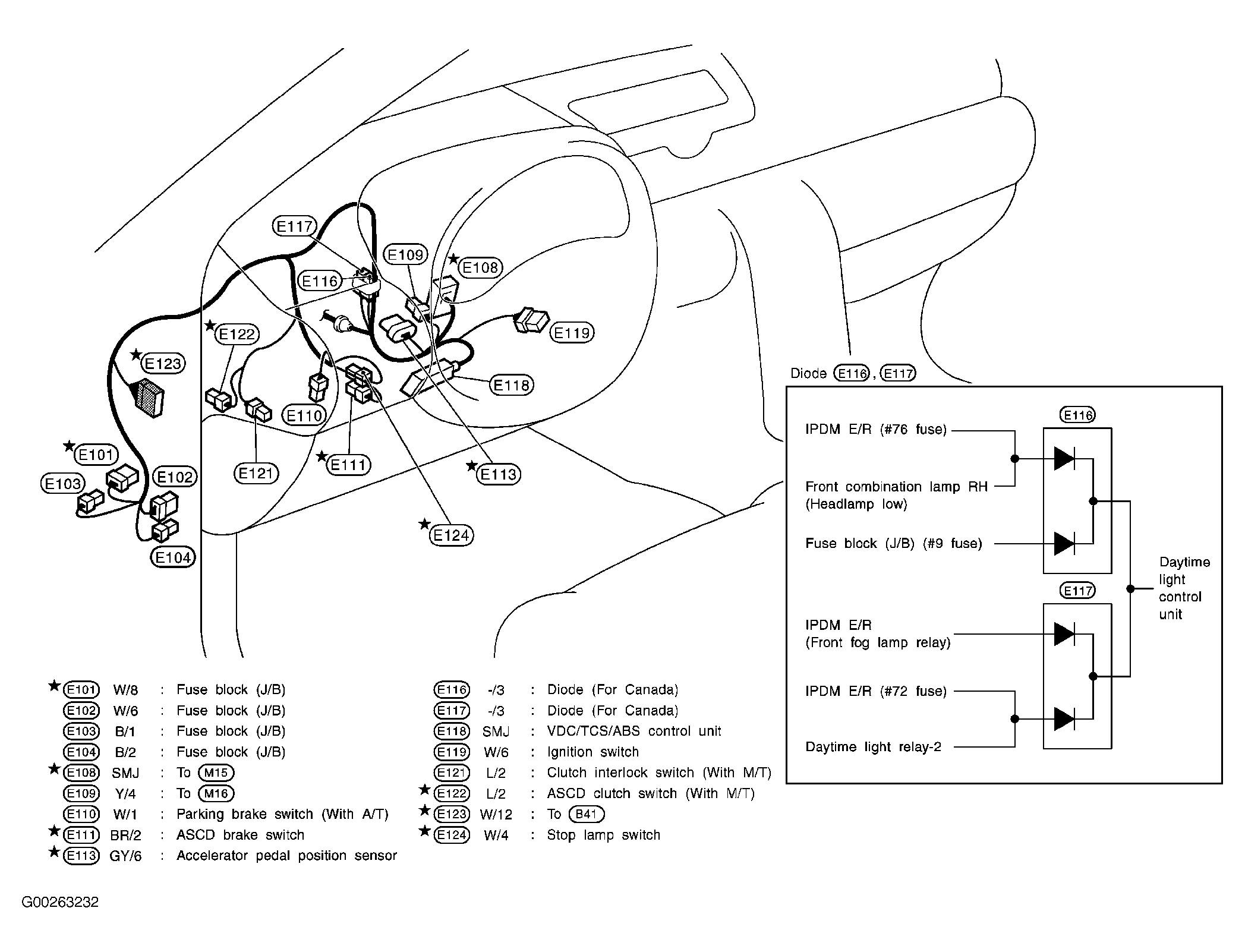

Fig 4: Left Side Of Dash

G00263232

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Right Side Of Engine Compartment

G00263233

Courtesy of NISSAN MOTOR CO., U.S.A.

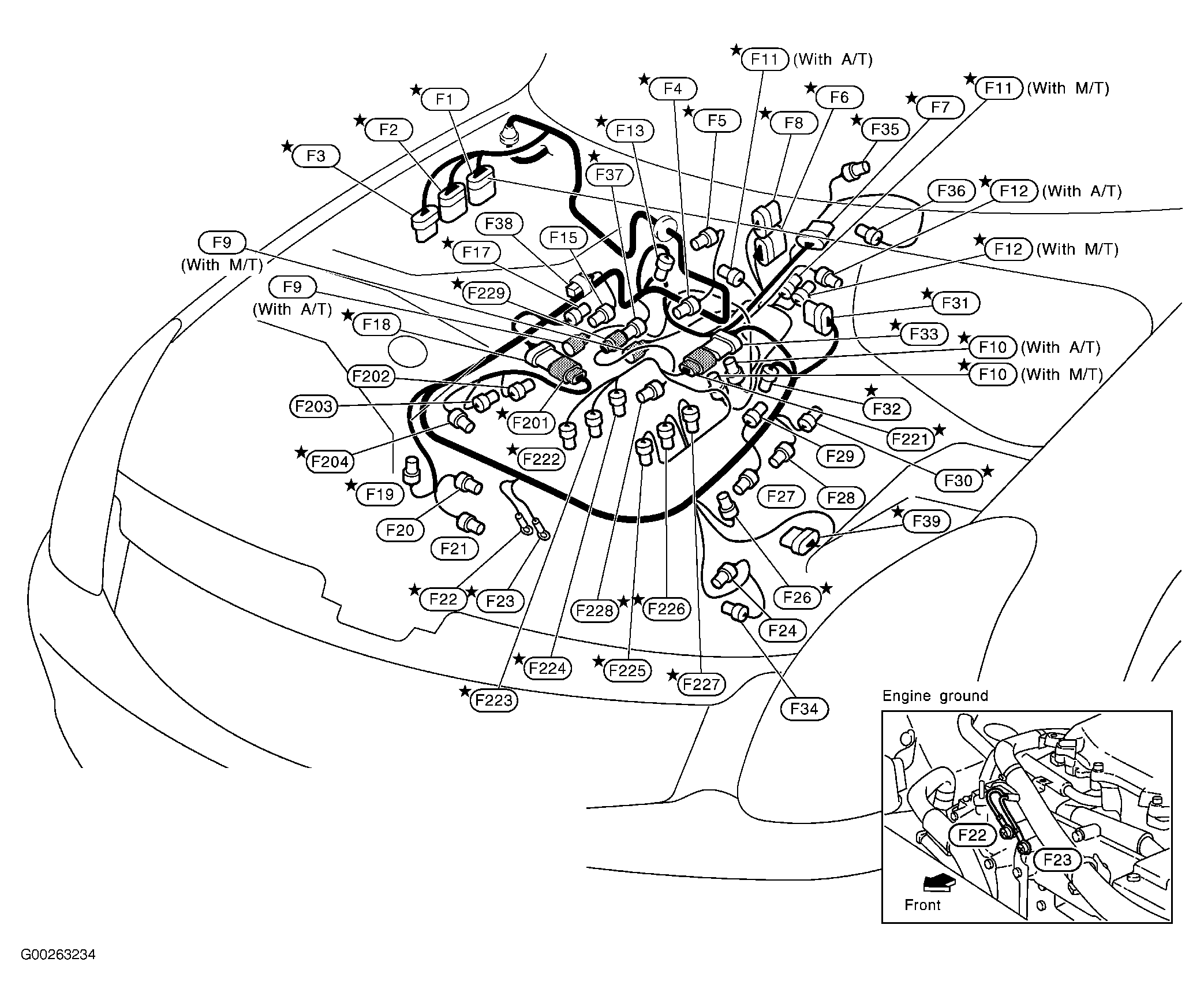

Fig 6: Top Of Engine (Early Production)

G00263234

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Passenger Compartment

G00263236

Courtesy of NISSAN MOTOR CO., U.S.A.

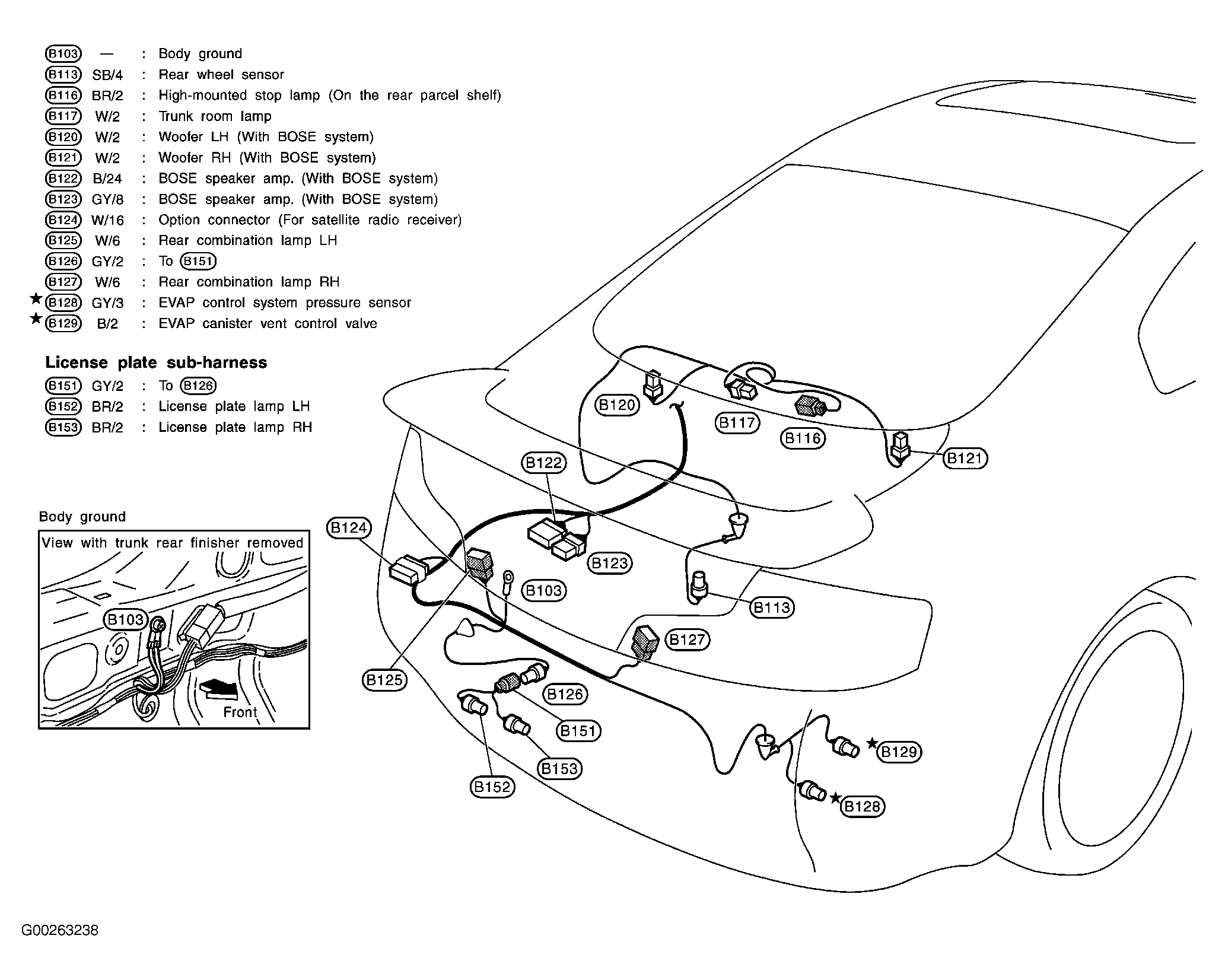

Fig 8: Rear Of Vehicle

G00263238

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Right Side Of Vehicle

G00263239

Courtesy of NISSAN MOTOR CO., U.S.A.

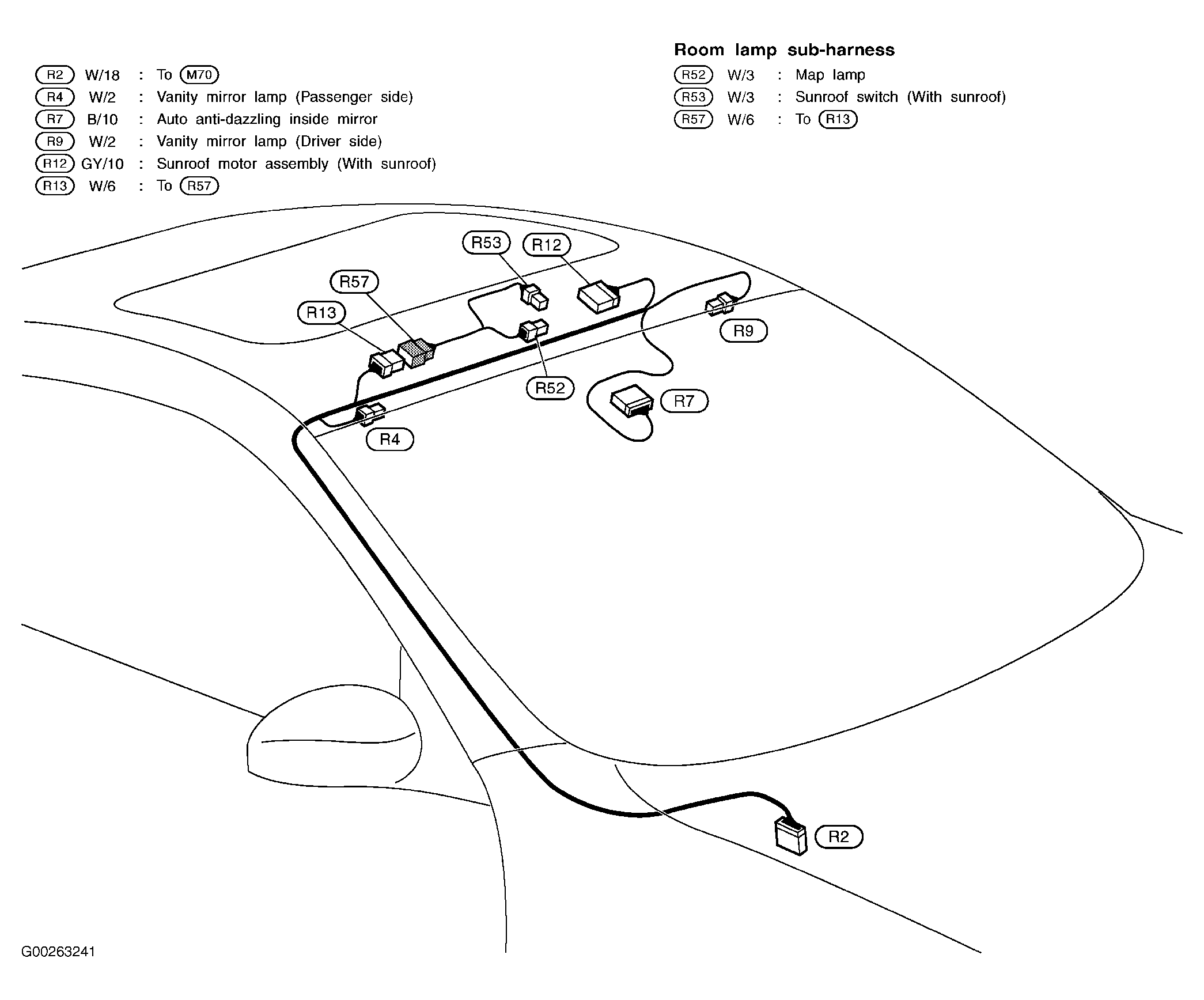

Fig 10: Roof

G00263241

Courtesy of NISSAN MOTOR CO., U.S.A.

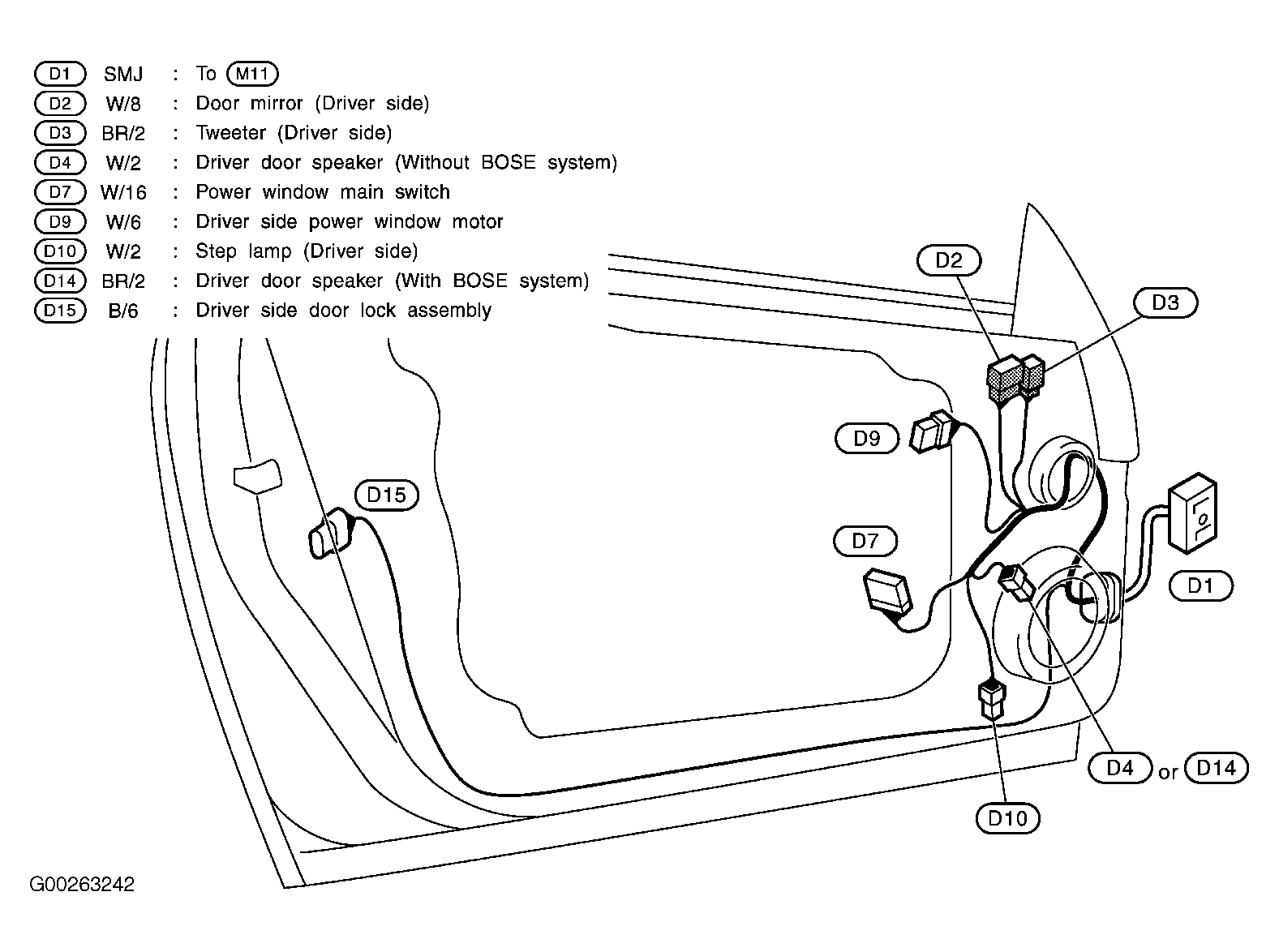

Fig 11: Driver Door

G00263242

Courtesy of NISSAN MOTOR CO., U.S.A.

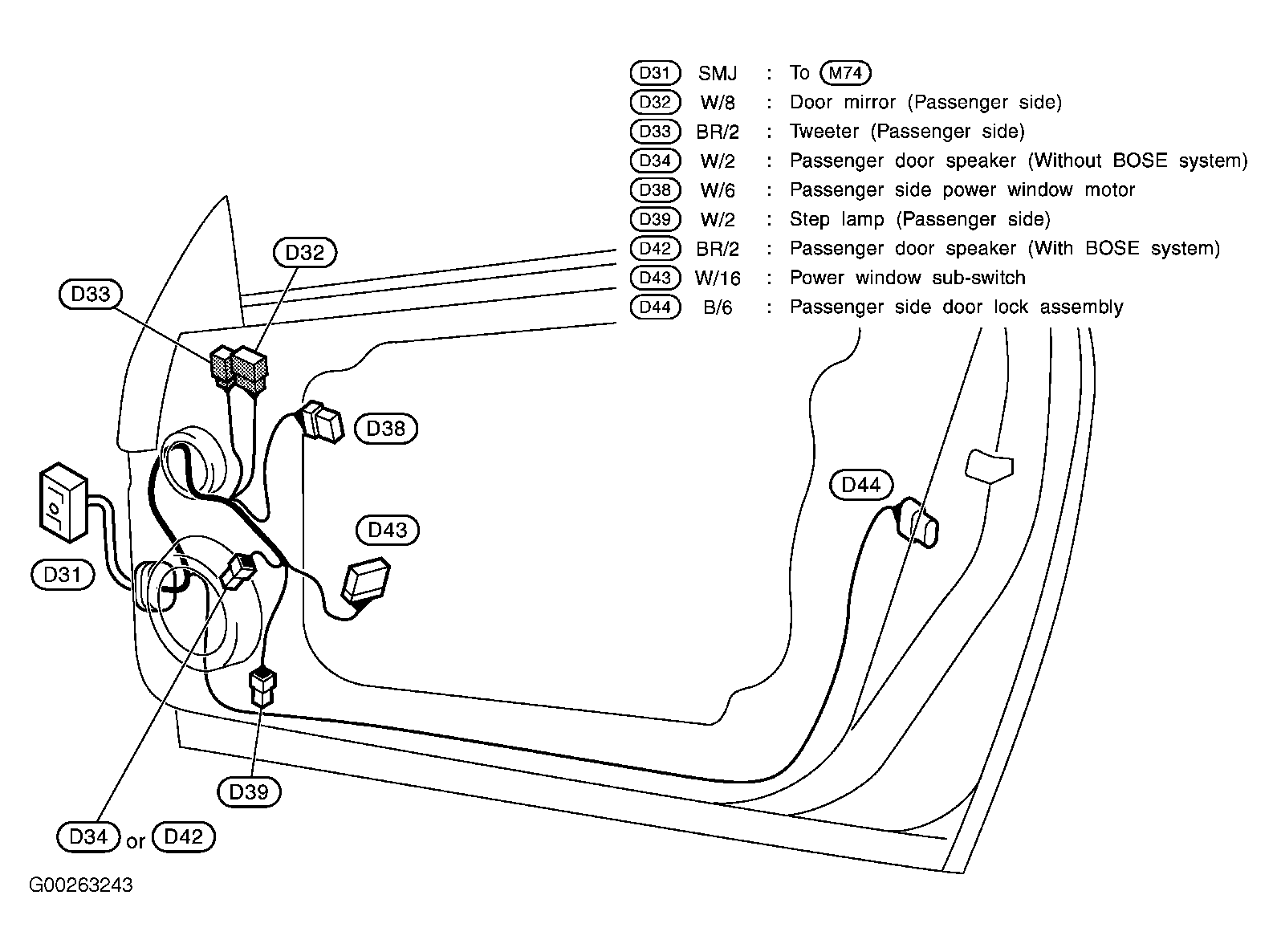

Fig 12: Front Passenger Door

G00263243

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Engine Compartment

G00263244

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Dash Views (1 Of 2)

G00263245

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Dash Views (2 Of 2)

G00263246

Courtesy of NISSAN MOTOR CO., U.S.A.

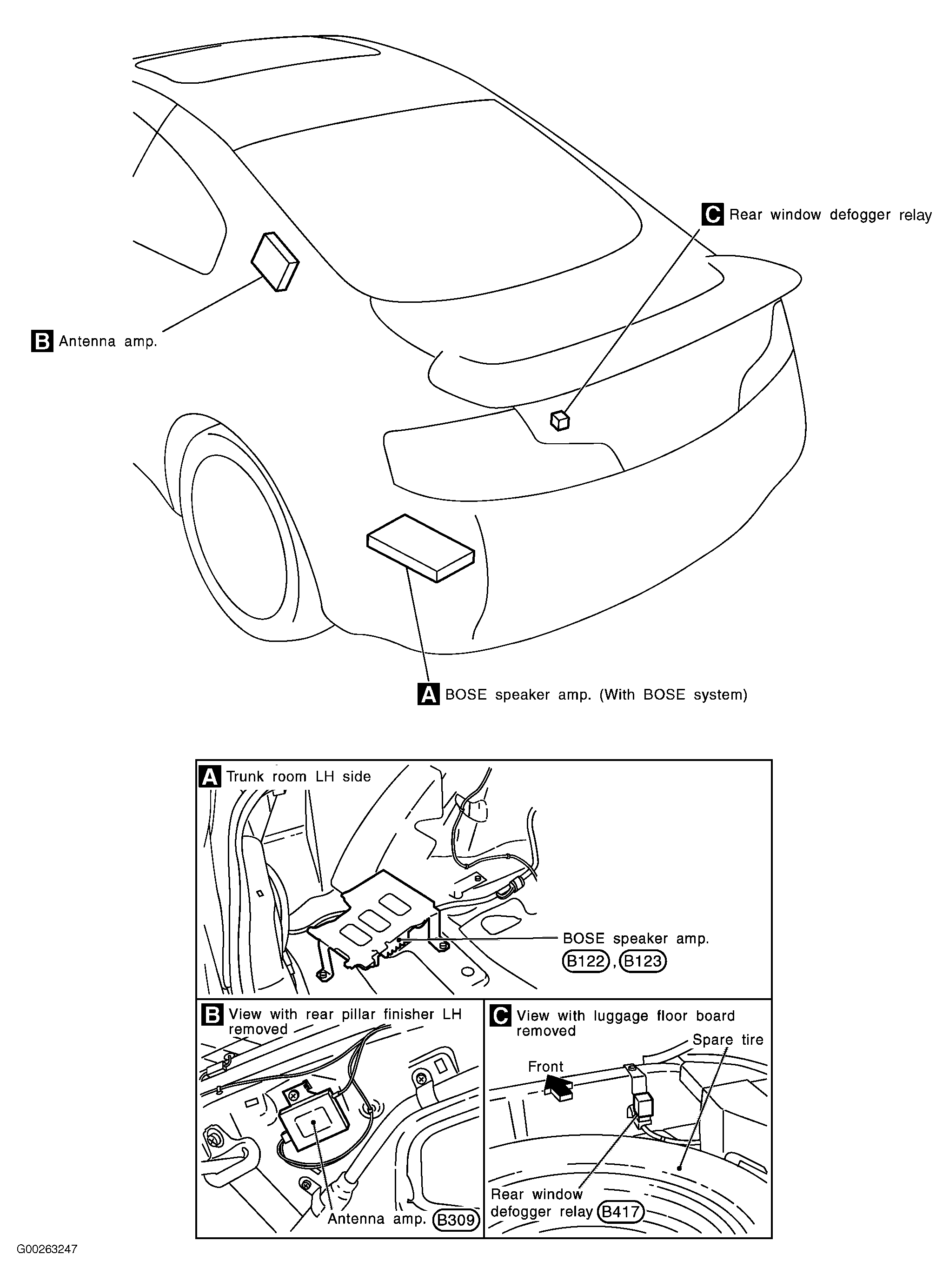

Fig 16: Trunk

G00263247

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Right Kick Panel (Early Production)

G00263235

Courtesy of NISSAN MOTOR CO., U.S.A.

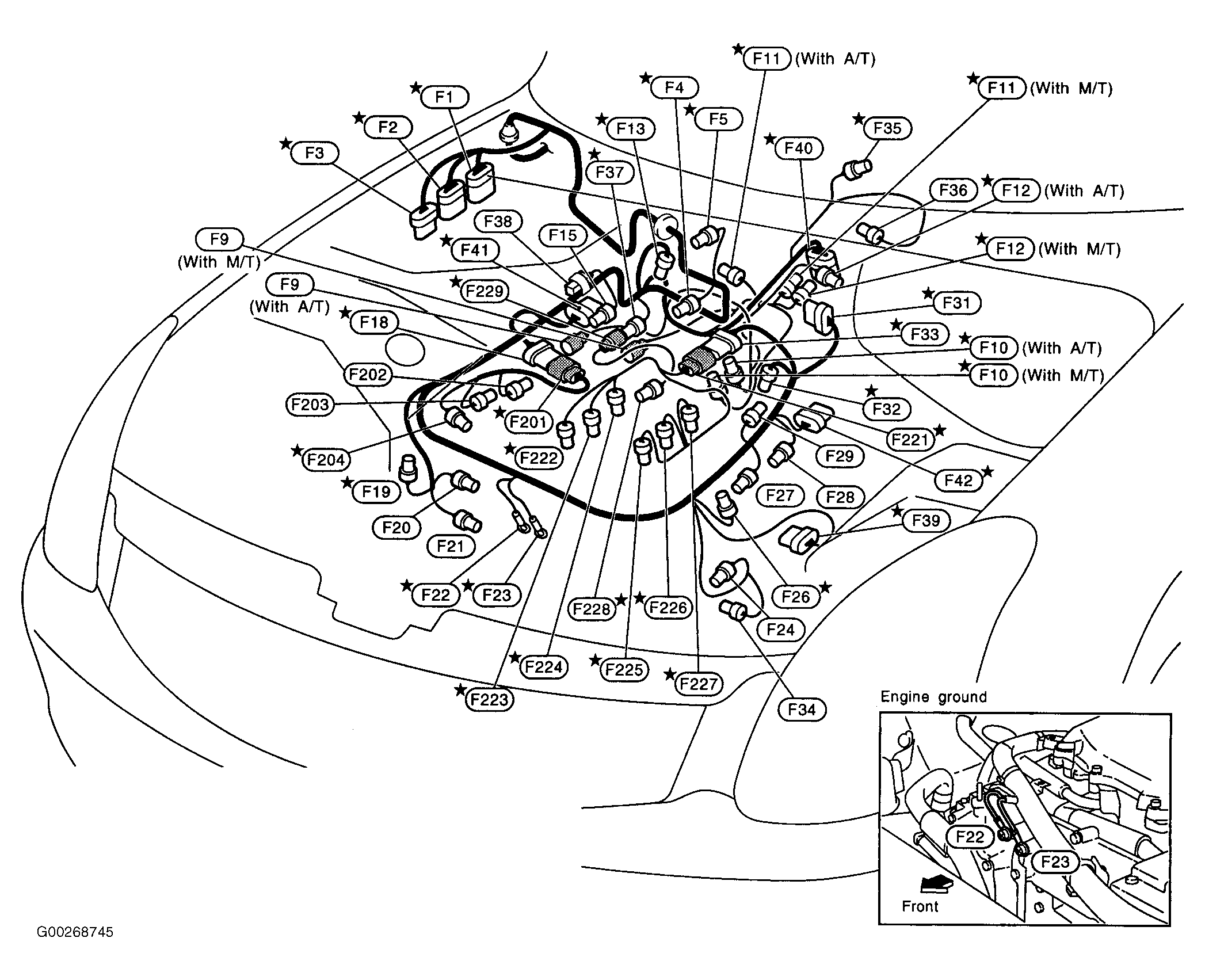

Fig 18: Top Of Engine (Late Production)

G00268745

Courtesy of NISSAN MOTOR CO., U.S.A.
