Control Units
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| BCM (Body Control Module) | Behind left kick panel. See Figure . |
| Daytime Light Control Unit (Canada) (E25) | At right front corner of engine compartment. See Figure . |
| Driver Seat Control Unit | Under driver seat. See Figure . |
| ECM (Engine Control Module) | Behind right kick panel. See Figure . |

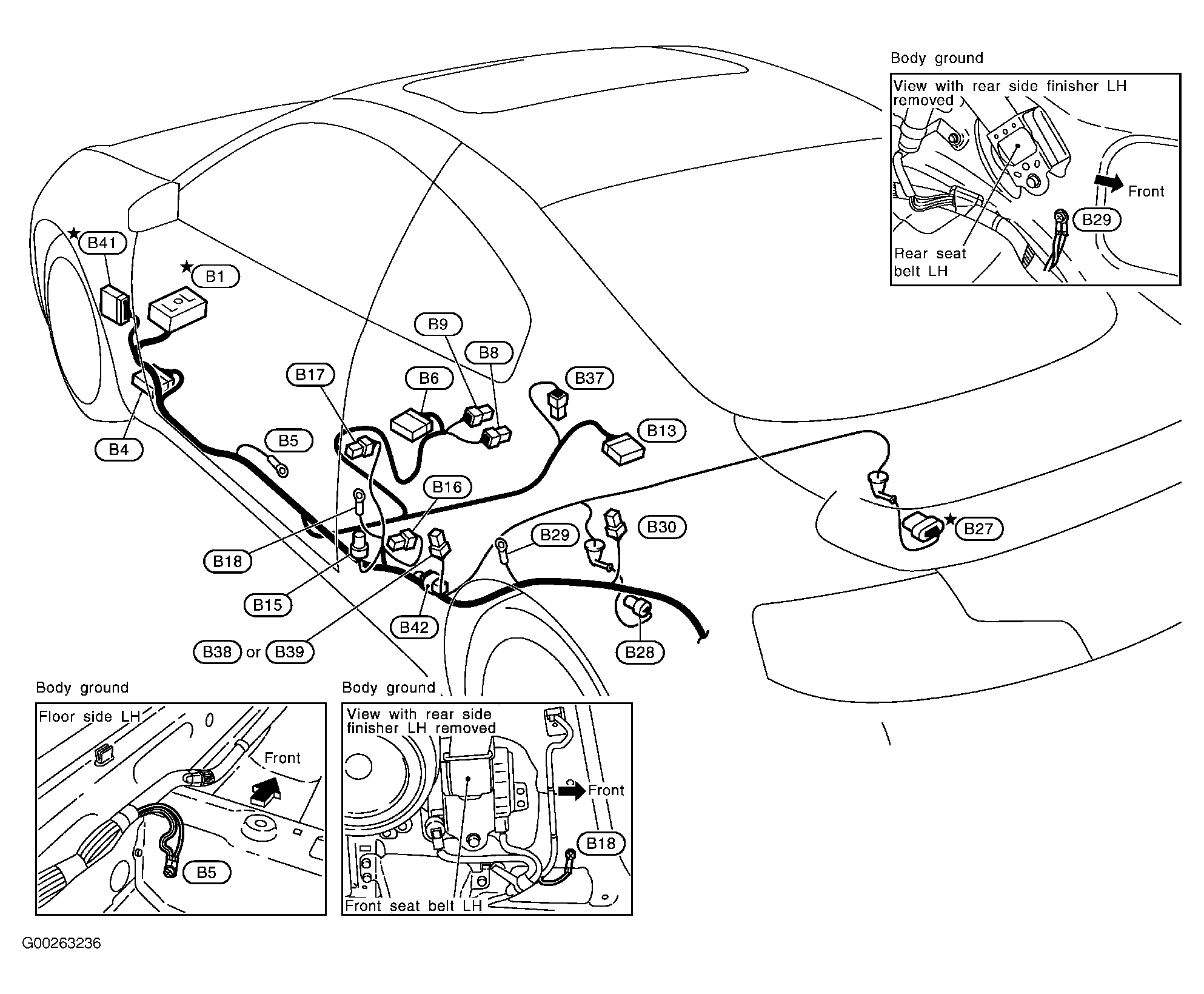

| Front Left Side Air Bag Module (B9) | Under driver seat. See Figure . |

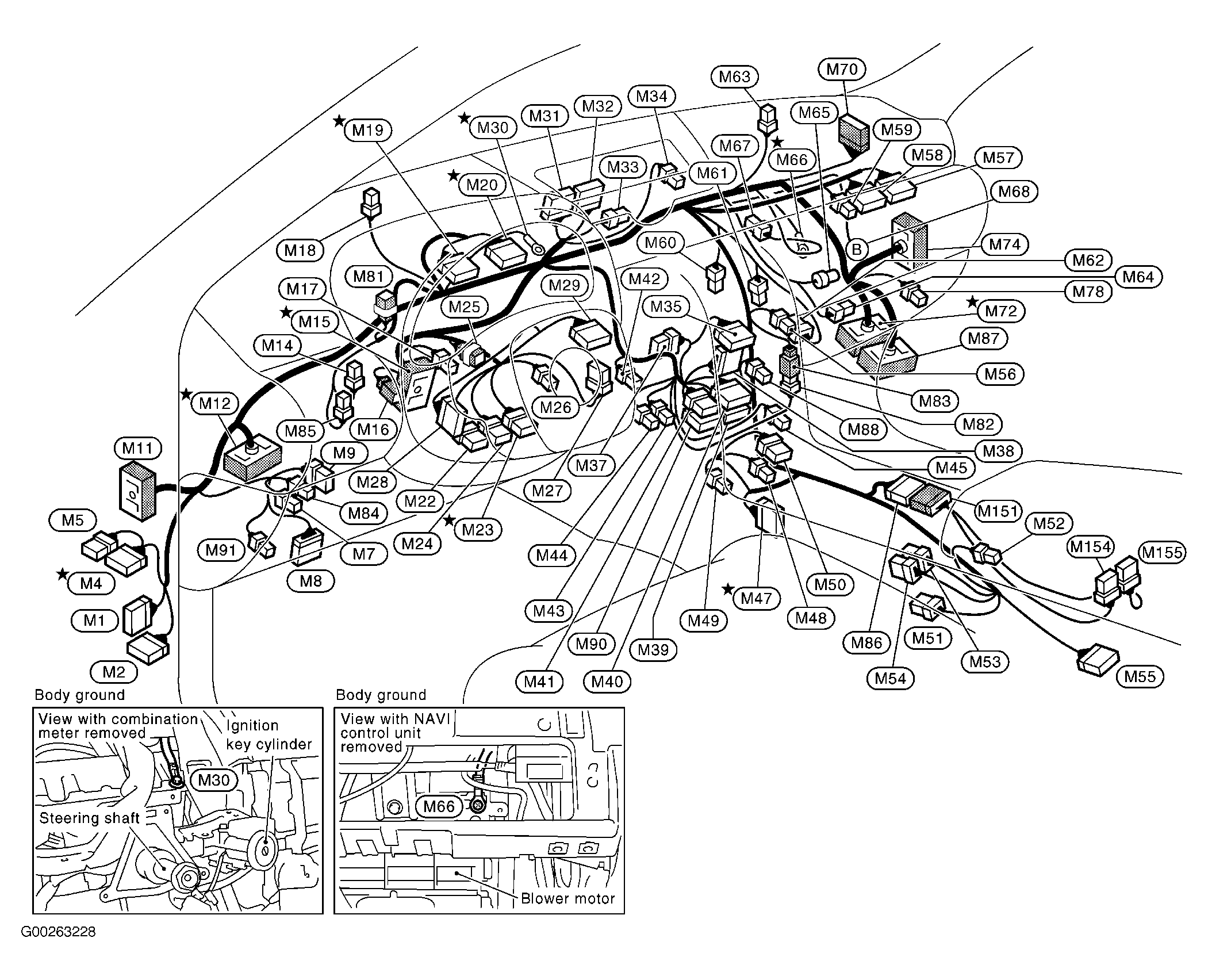

| Front Passenger Air Bag Module (M65) | At top right side of dash. See Figure . |

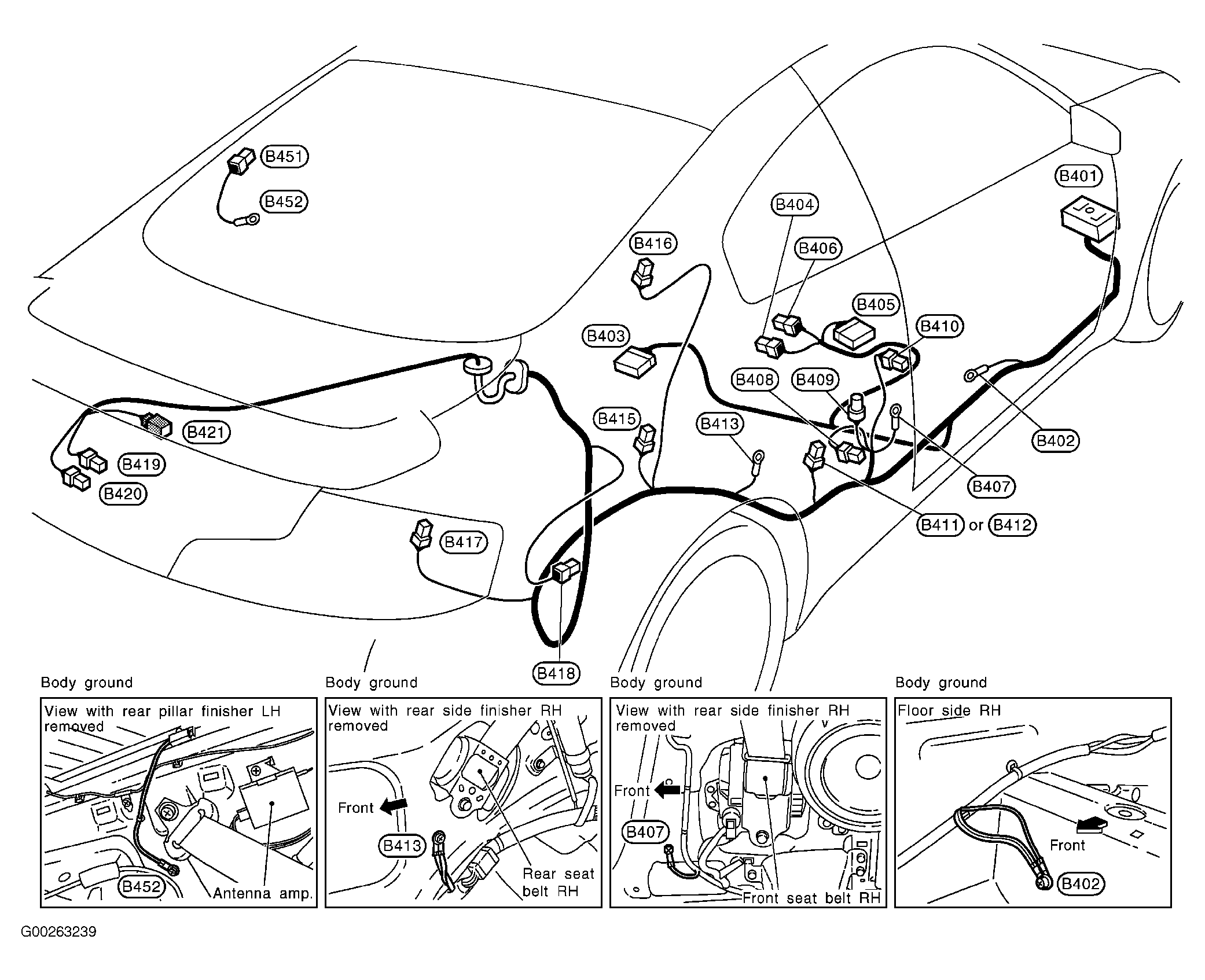

| Front Right Side Air Bag Module (B404) | Under front passenger seat. See Figure . |
| Heater & Cooling Unit (M60) | Behind center of dash. See Figure . |
| Left Side Curtain Air Bag Module (B30) | At left "C" pillar. See Figure . |
| NAVI Control Unit | Behind right side of dash. See Figure . |
| Passenger Side Seat Control Unit | Under front passenger seat. See Figure . |
| Remote Keyless Entry Receiver | Behind right side of dash. See Figure . |
| Right Side Curtain Air Bag Module (B415) | At right "C" pillar. See Figure . |
| TCM (Transmission Control Module) (Early Production) | Behind right kick panel. See Figure . |
| VDC Actuator | At left rear corner of engine compartment. See Figure . |
| VDC/TCS/ABS Control Unit | Behind left side of dash. See Figure . |
