Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. If necessary install the valve guide. Refer to VALVE GUIDE REPLACEMENT .
  2. If necessary install valve seat. Refer to VALVE SEAT REPLACEMENT
  3. Using tool install valve oil seal.
    • Apply engine oil on new valve oil seal joint and seal lip.
    1. Tool number: KV10115600 (J-38958)

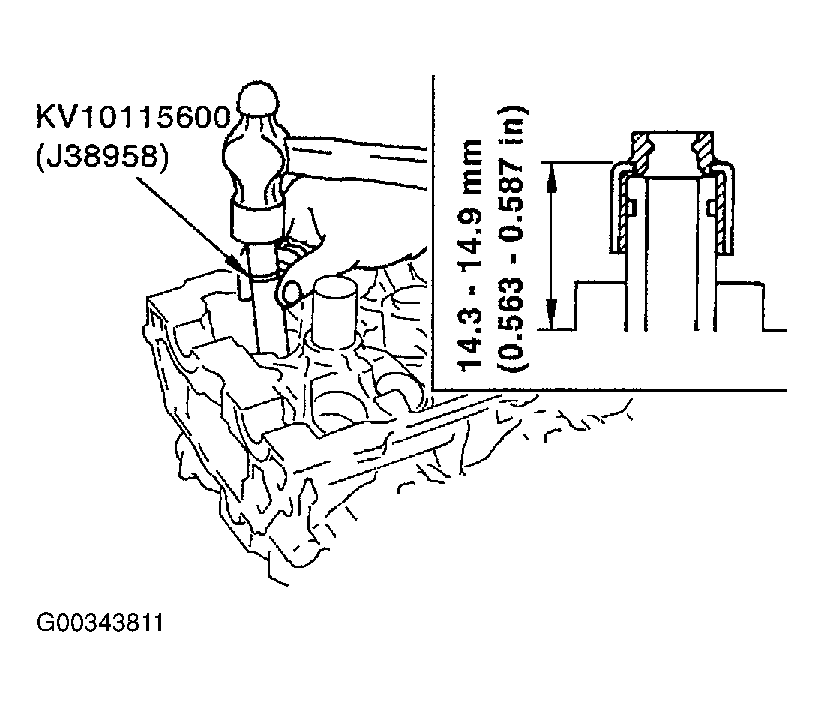

    Fig 1: Installing Valve Oil Seal
    G00343811Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install valves.
    • Install larger diameter to intake side.
  5. Install valve spring seats.
  6. Install valve springs.
    • Install narrow pitch (Paint mark side) to cylinder head side.
  7. Install valve spring retainers.
    Fig 2: Identifying Narrow Pitch (Paint Mark Side) Of Valve Spring
    G00343812Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Using tool install valve collets.
    1. Tool number: KV10116200 (J-26336-B)
    2. KV10115900 (J-26336-20)
    3. KV10109230 ( - )
    CAUTION: When working, take care not to damage valve lifter holes.
  9. Install valve lifters.
    • Install removed parts in there same locations.
    • If installing new lifters, select the correct size lifter for proper valve clearance. Refer to VALVE CLEARANCE .

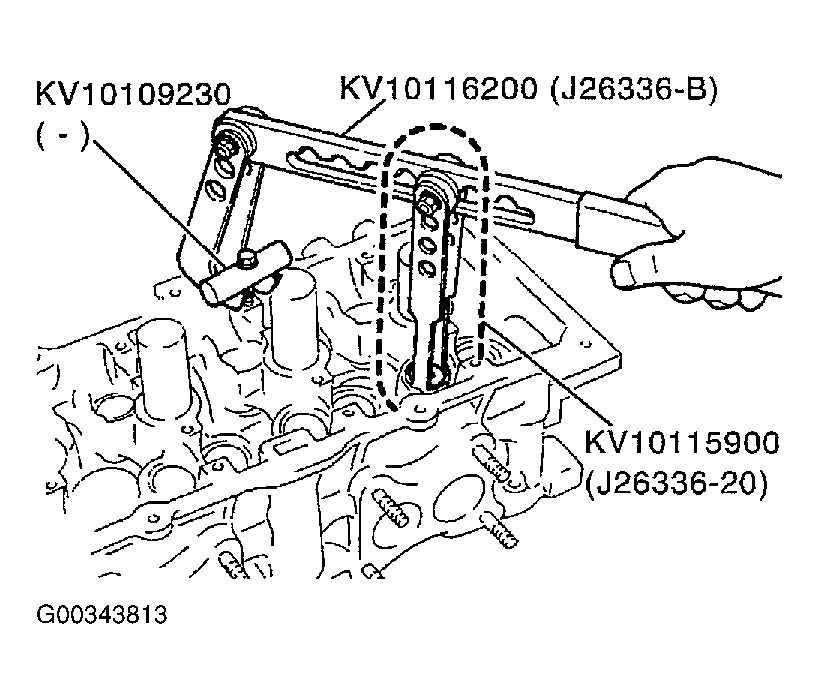

    Fig 3: Installing Valve Spring Retainers
    G00343813Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install spark plug tube.
    • Press-fit spark plug tube following procedure below.
    • Remove old liquid gasket adhering to cylinder-head mounting hole.
    • Apply liquid gasket to area within approximately 12 mm (0.47 in) from edge of spark plug tube press-fit side. Use Genuine RTV Silicone Sealant or equivalent. See RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION.
    • Using a drift, press-fit spark plug tube so that its height "H" is as specified in the figure.
      Fig 4: Applying Liquid Gasket
      G00343814Courtesy of NISSAN MOTOR CO., U.S.A.
      1. Standard press-fit height "H": 38.4 - 39.4 mm (1.512 - 1.551 in)
      CAUTION:
      • When press-fitting, take care not to deform spark plug tube.
      • After press-fitting, wipe off liquid gasket protruding onto cylinder-head upper face.
  11. Install spark plugs.
