Removal And Installation: Removal
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove engine room cover with power tool. Refer to ENGINE ROOM COVER .
- Remove air duct and resonator assembly (inlet). Refer to AIR CLEANER AND AIR DUCT (for left bank only).
- Move harness on upper rocker cover and its peripheral aside.
- Remove electric throttle control actuator loosening bolts diagonally (for left bank only).
- Remove ignition coil. Refer to IGNITION COIL .
- Remove PCV hose from PCV control valve.

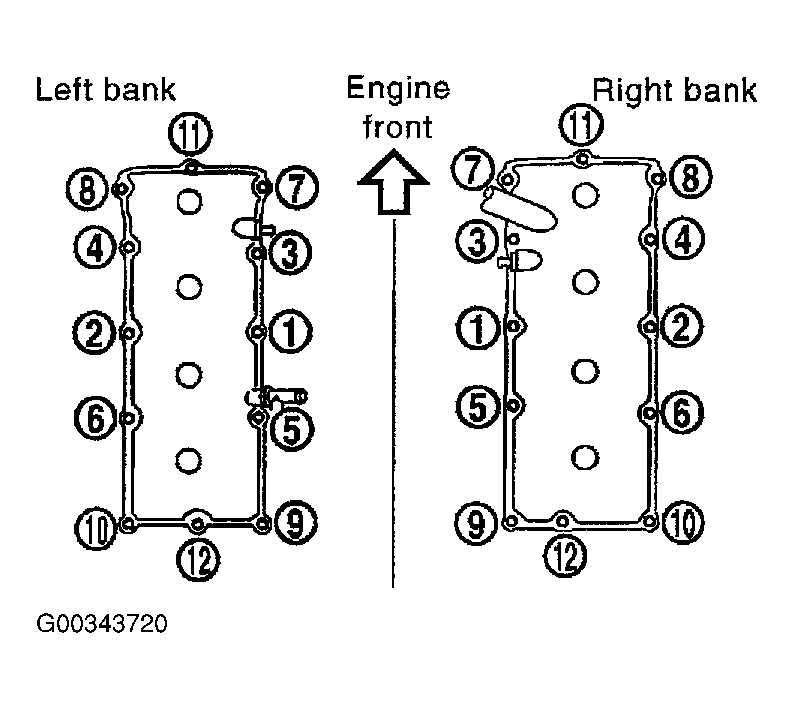

- Loosen bolts in REVERSE ORDER shown using power tool.CAUTION: Do not hold the rocker cover by the oil filler neck (right bank).
