Section 298 (Rear Suspension): Description

WARNING: This page is about a different car, the 2004 Nissan Altima, 2003 Nissan Altima, and 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Altima uses an independent multi-link suspension system with coil springs and stabilizer bar. See Fig 1 .

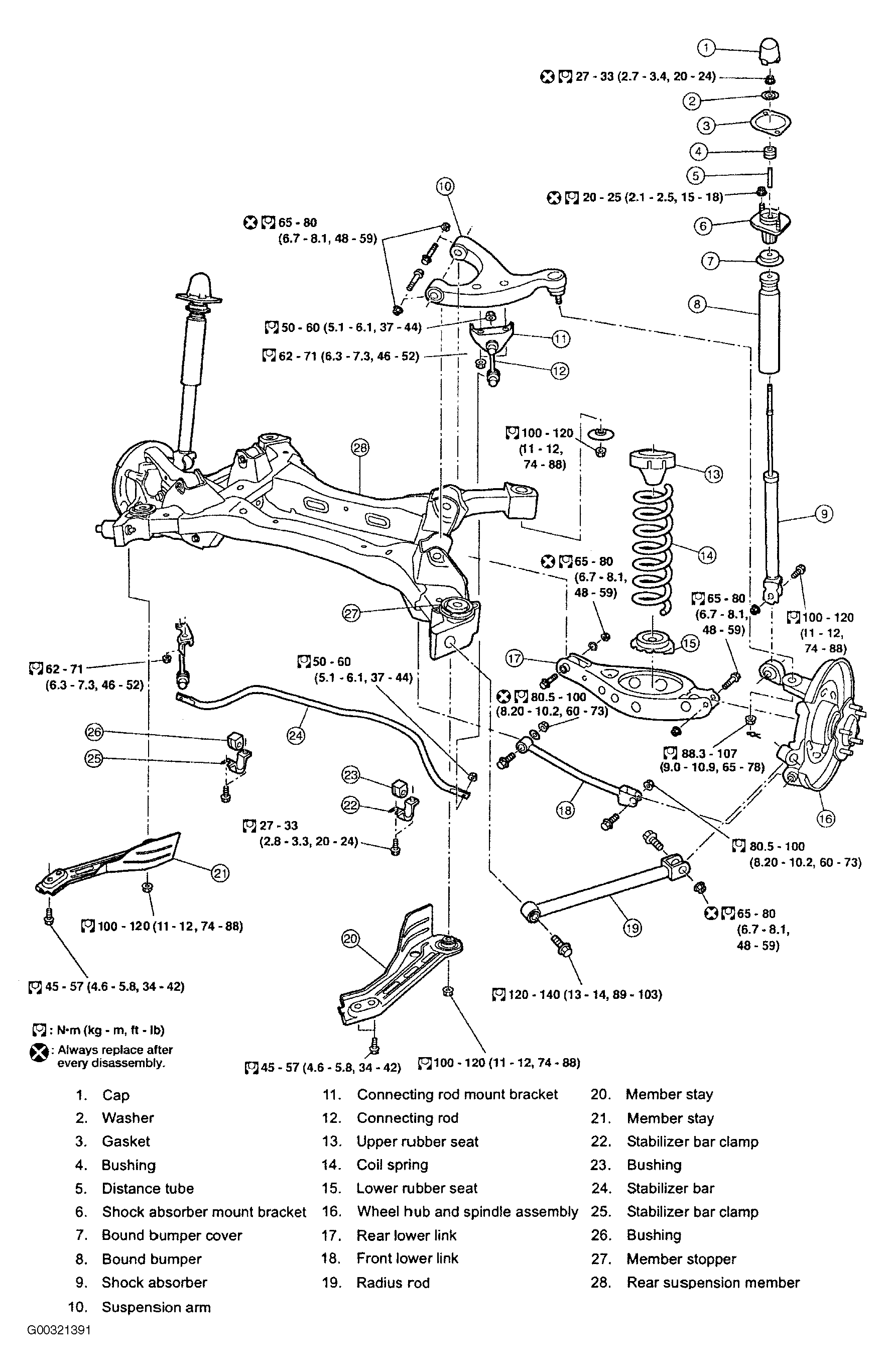

Fig 1: Exploded View Of Rear Suspension Components

Courtesy of NISSAN MOTOR CO., U.S.A.
