Section 301 (Rear Suspension System): Description

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Quest uses an independent multi-link suspension system with coil springs and stabilizer bar. See Fig 1 and Fig 2 .

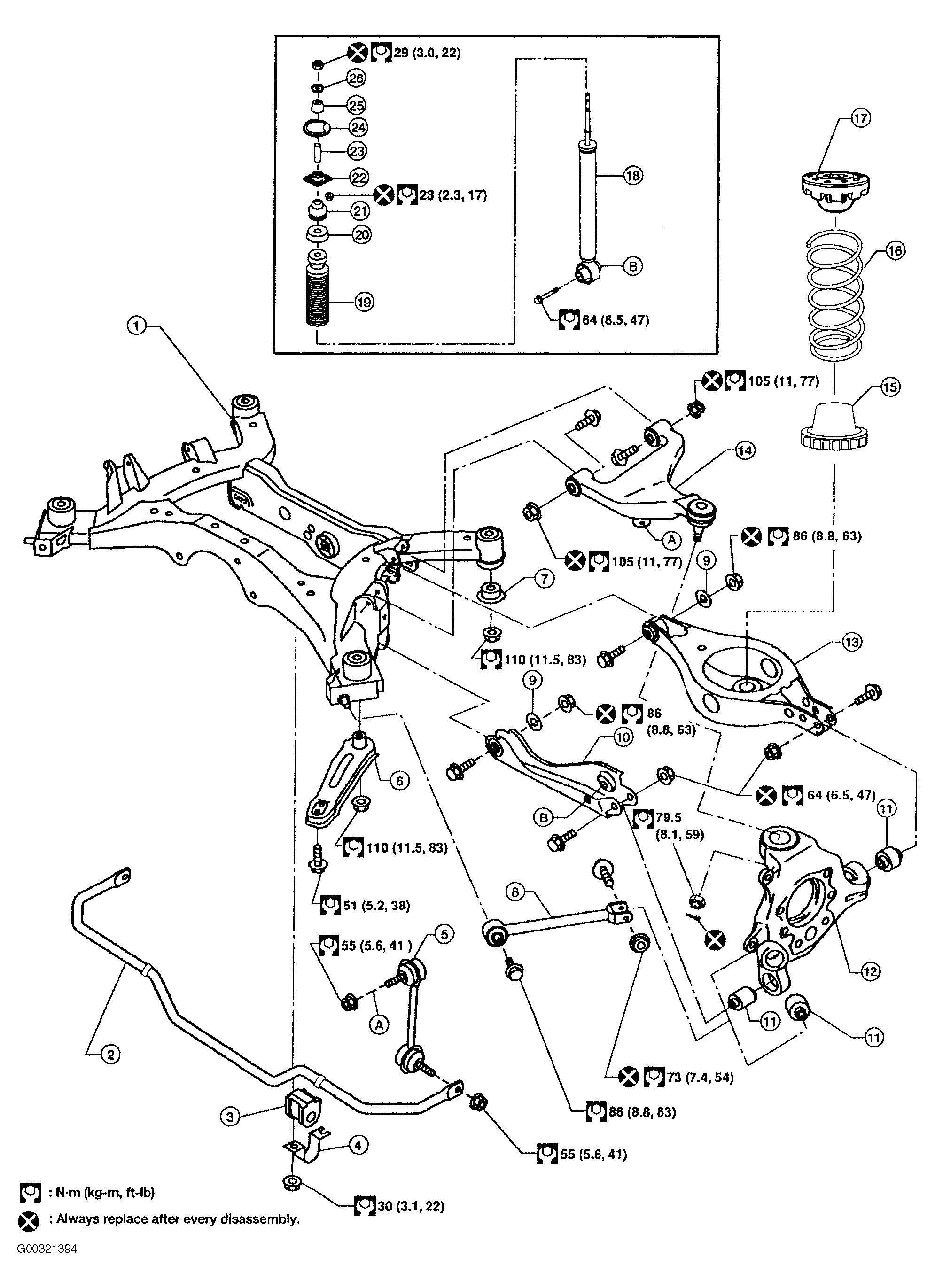

Fig 1: Exploded View Of Rear Suspension Components (1 Of 2)
G00321394Courtesy of NISSAN MOTOR CO., U.S.A.

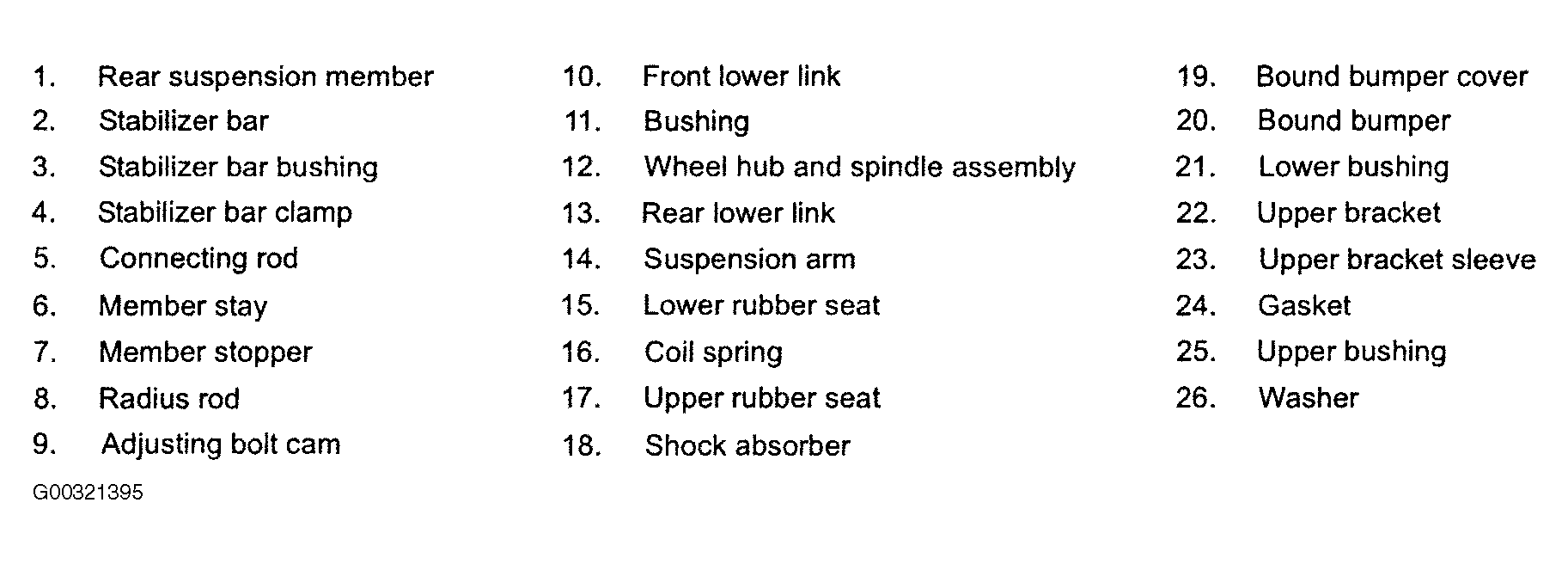

Fig 2: Exploded View Of Rear Suspension Components (2 Of 2)
G00321395Courtesy of NISSAN MOTOR CO., U.S.A.
