Section 303 (Front Suspension): Description

WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

M45 uses MacPherson struts and a stabilizer bar. See Fig 1 .

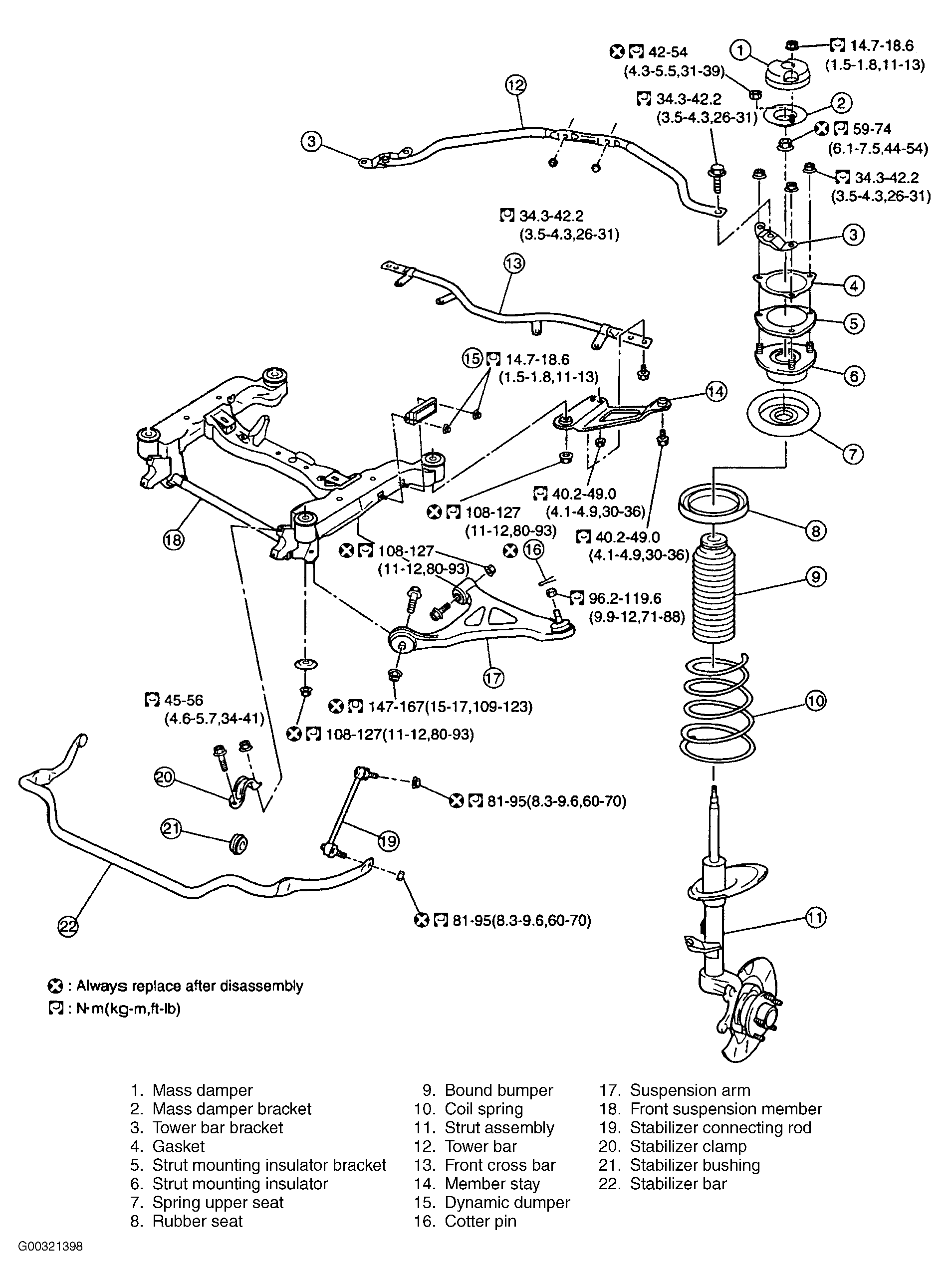

Fig 1: Exploded View Of Front Suspension Components

Courtesy of NISSAN MOTOR CO., U.S.A.
