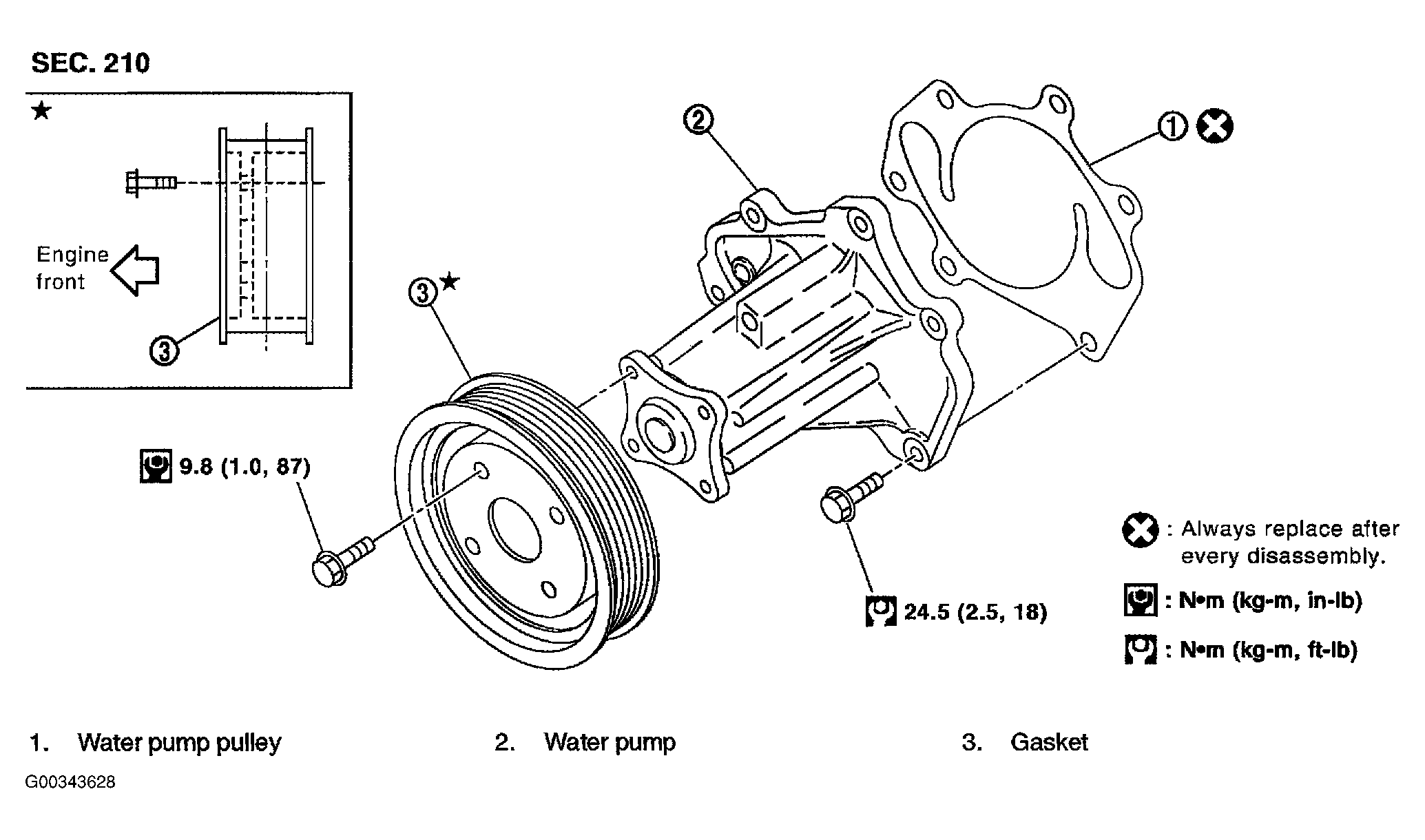

Removal And Installation: Notes
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- When removing water pump, be careful not to get engine coolant on drive belt.
- Water pump can not be disassembled and should be replaced as a unit.
