Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.

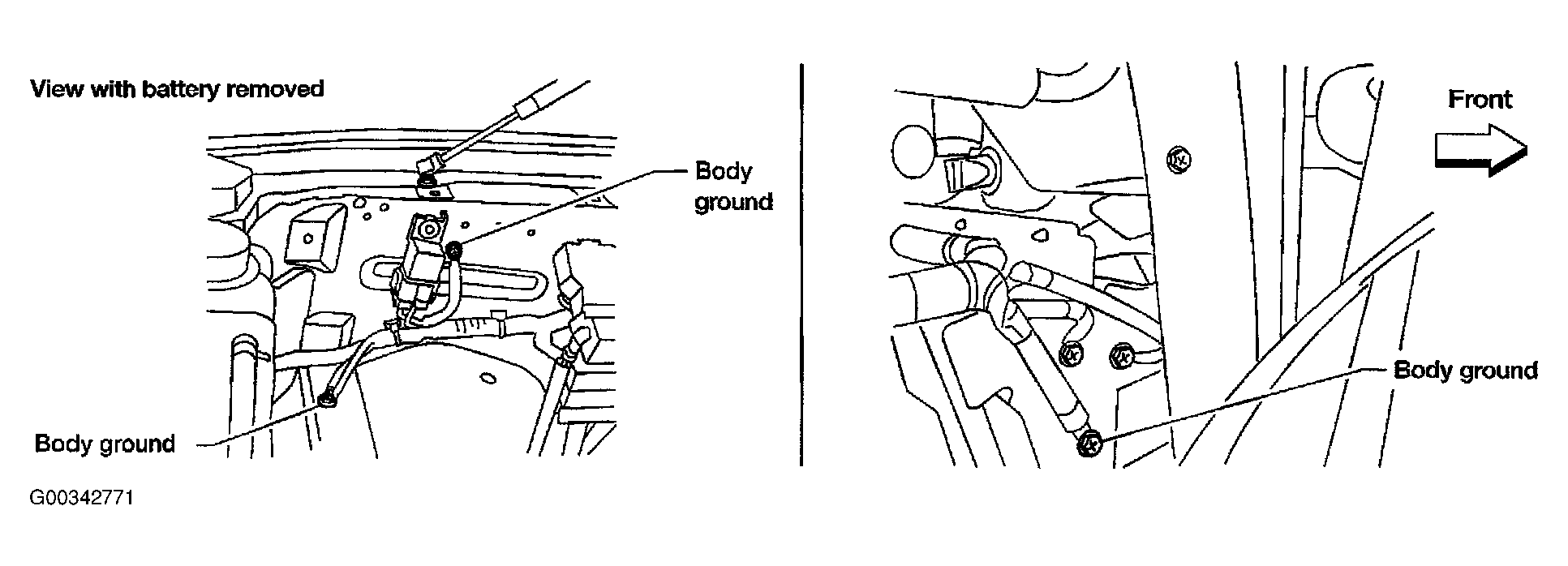

Fig 1: Locating Ground Screws
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GROUND INSPECTION .

OK or NG
1. OK: GO TO 2.
2. NG: Repair or replace ground connections.
CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to COMPONENT INSPECTION .

OK or NG
1. OK: GO TO 3.
2. NG: Replace engine coolant temperature sensor.
CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70°C (158°F)] condition, grasp lower radiator hose and confirm the engine coolant does not flow.

OK or NG
1. OK: GO TO 4.
2. NG: Repair or replace thermostat. Refer to THERMOSTAT AND WATER PIPING .
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
1. INSPECTION END
