CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SELF-DIAGNOSTIC RESULT
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Connect to CONSULT-II, and select "BCM" on "SELECT SYSTEM" screen.
2. Select "BCM control unit" on "SELECT WORK ITEM" screen, and select "SELF-DIAG RESULTS".
3. Check display content in self-diagnostic results.

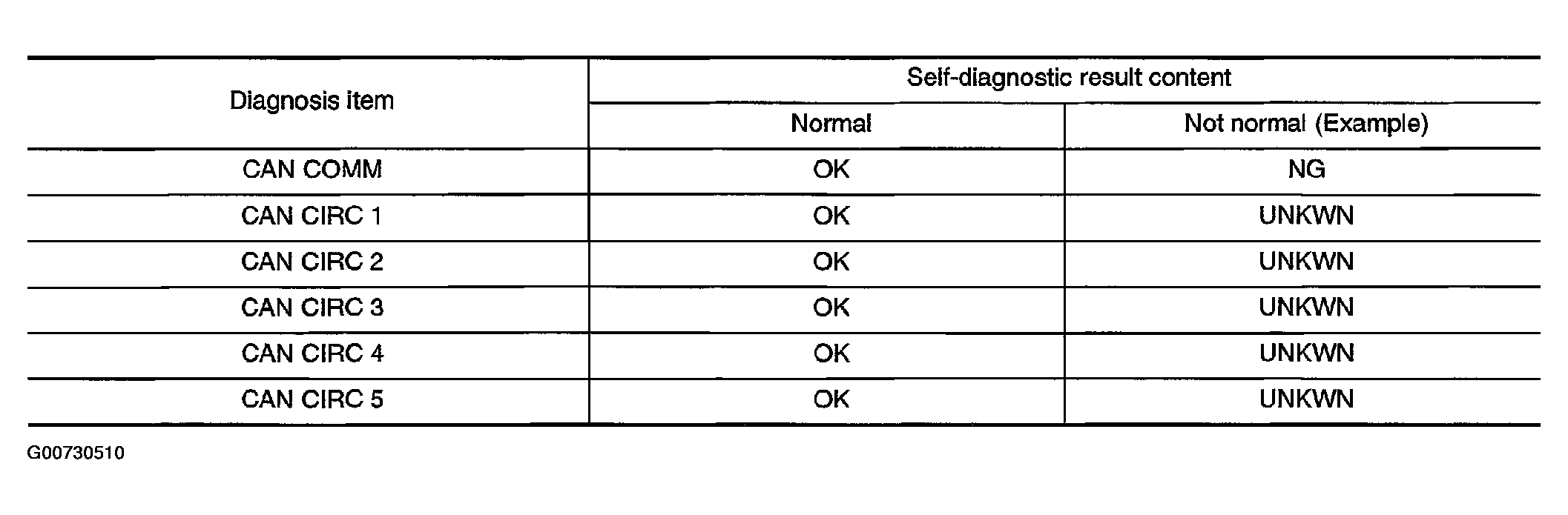

  Fig 1: Checking Display Content In Self-Diagnostic Results
  Courtesy of NISSAN MOTOR CO., U.S.A.
Contents displayed

No malfunction: INSPECTION END

Malfunction in CAN communication system: GO TO 2.
SYMPTOM CHECK
1. Select "CAN diagnosis support monitor" in data monitor.
2. Select "START" and check display content.

  Fig 2: Symptom Check Table
  Courtesy of NISSAN MOTOR CO., U.S.A.
After printing the monitor items, go to "CAN System". Refer to PRECAUTIONS WHEN USING CONSULT-II .
