Disassembly And Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

NOTE: Install the inner rotor and outer rotor with the punched marks on the oil pump cover side.

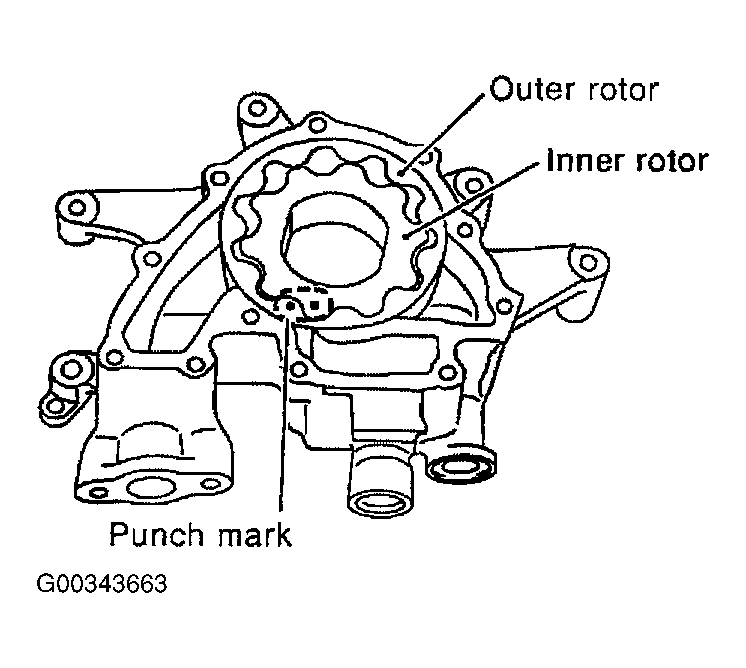

Fig 1: Installing The Inner Rotor And Outer Rotor With The Punched Marks On The Oil Pump Cover Side
G00343663Courtesy of NISSAN MOTOR CO., U.S.A.
