Removal And Installation: Installation
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
- Installation is in the reverse order of removal, paying attention of the following:

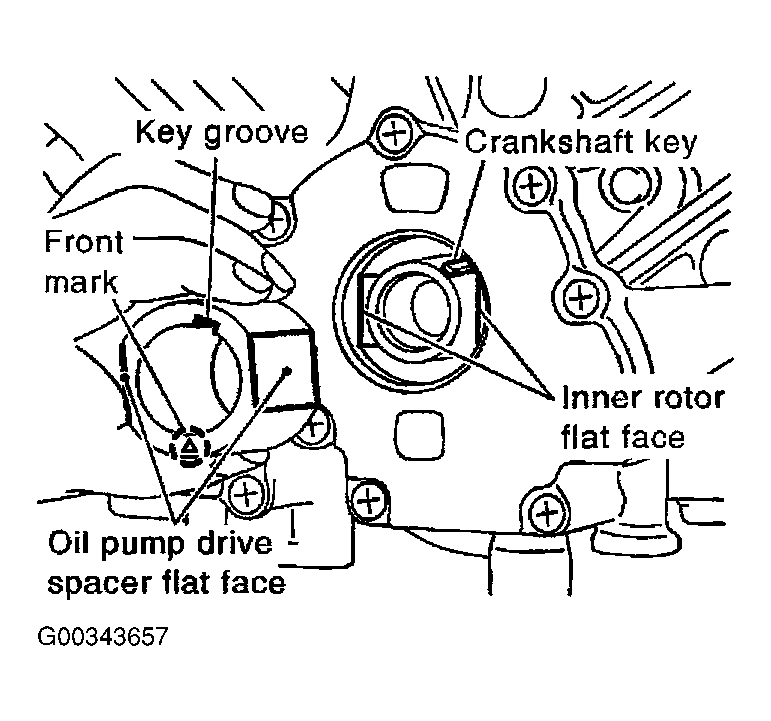

- When inserting the oil pump drive spacer, align the crankshaft key and the flat face of the inner rotor.
- If they are not aligned, rotate the oil pump inner rotor by hand.
- Make sure that the each part is aligned. Using a tool such as a plastic hammer, tap lightly until it reaches the end.
