Cooling Fan Control

Fig 1: System Description

Courtesy of NISSAN MOTOR CO., U.S.A.

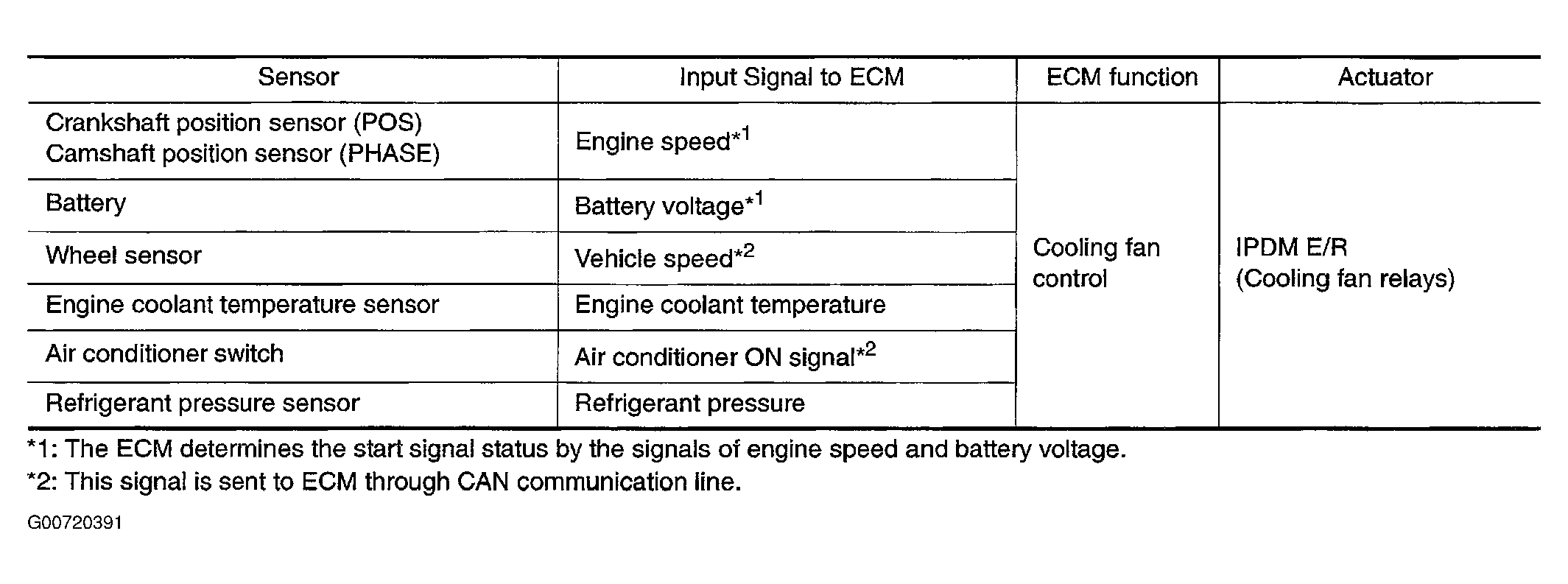

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].

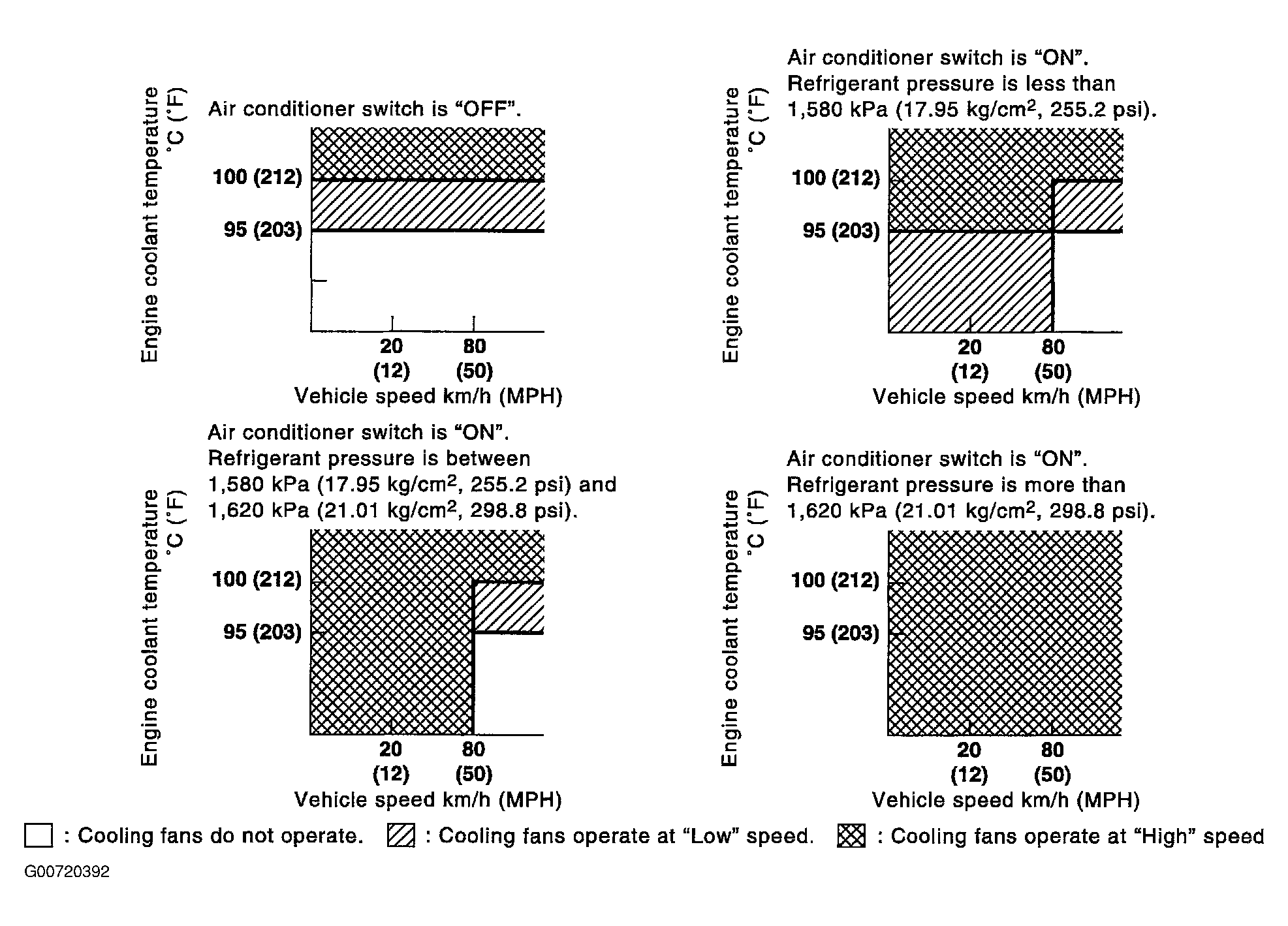

Cooling Fan Operation

Fig 2: Cooling Fan Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling Fan Relay Operation

The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
