Data Monitor Mode

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Monitored Item

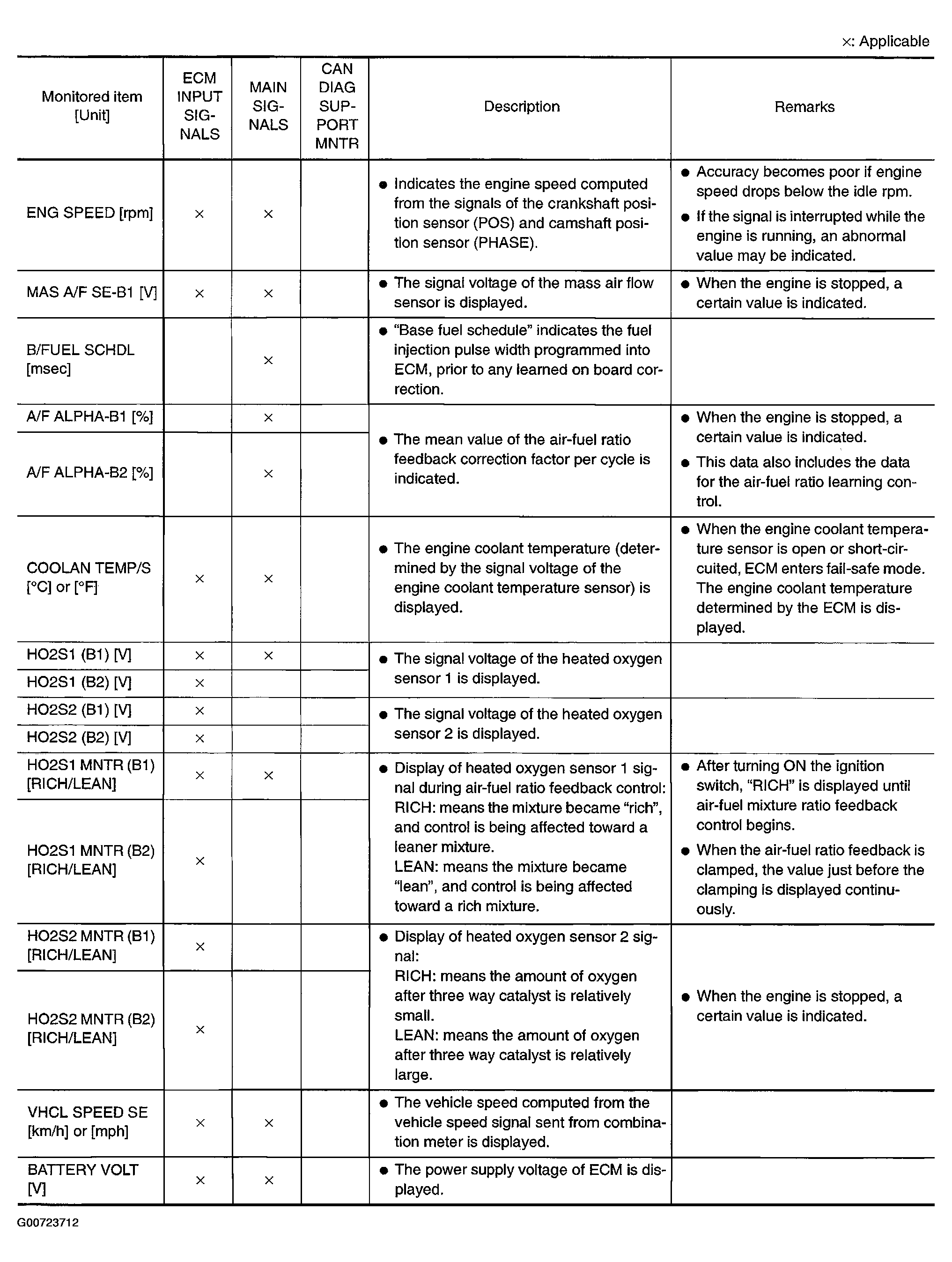

Fig 1: Consult-II Data Monitor Mode (1 Of 5)

G00723712

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Consult-II Data Monitor Mode (2 Of 5)

G00723713

Courtesy of NISSAN MOTOR CO., U.S.A.

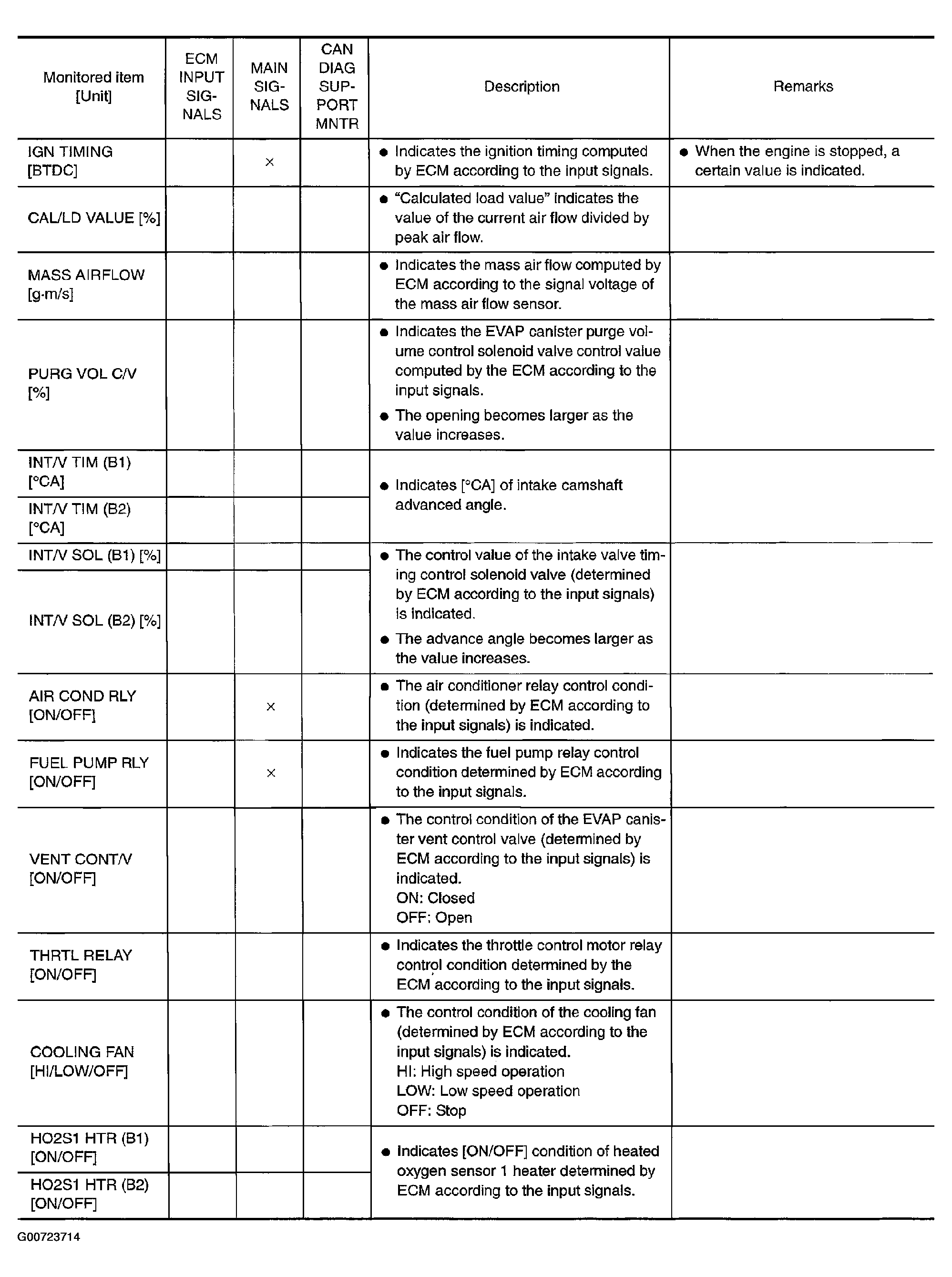

Fig 3: Consult-II Data Monitor Mode (3 Of 5)

G00723714

Courtesy of NISSAN MOTOR CO., U.S.A.

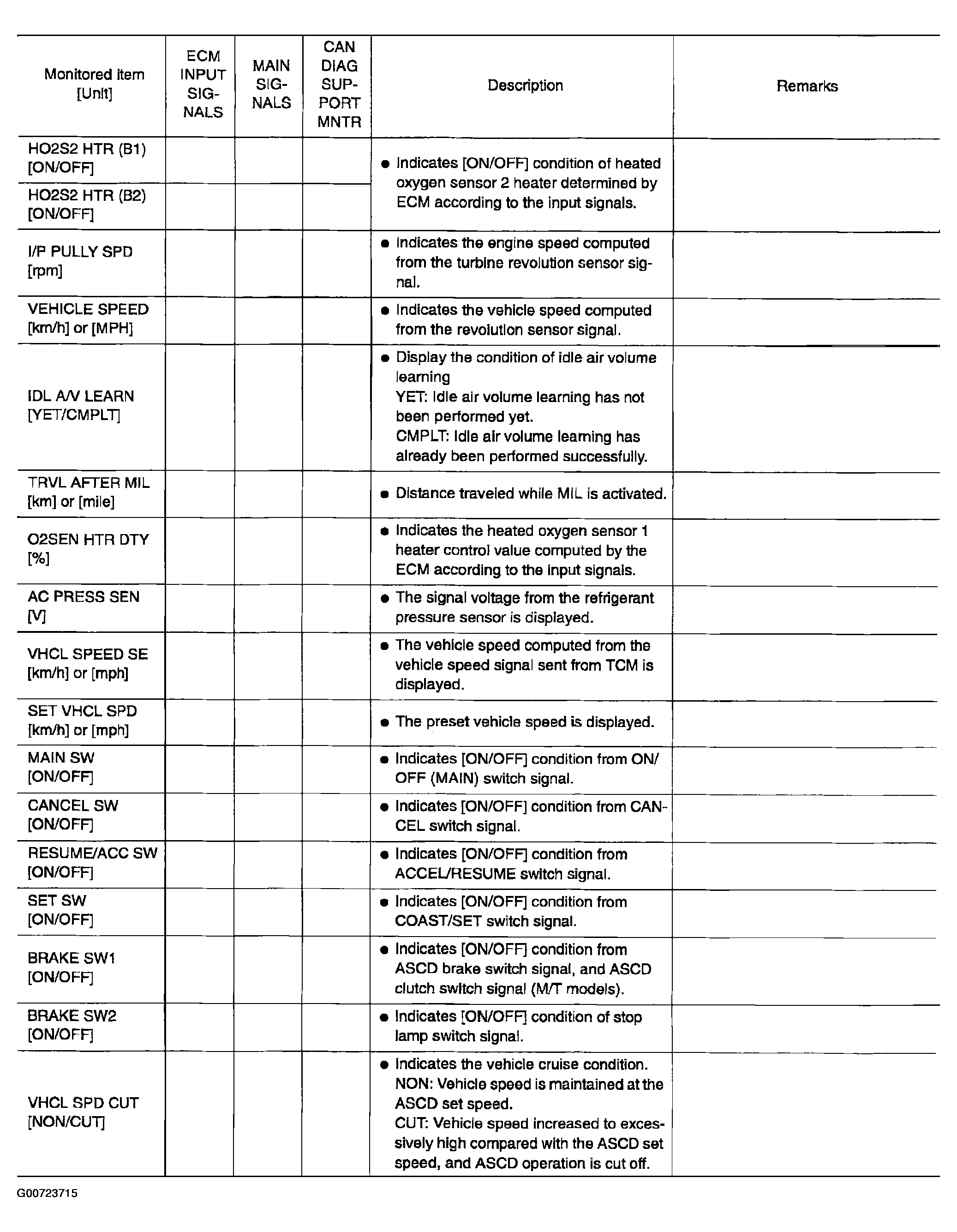

Fig 4: Consult-II Data Monitor Mode (4 Of 5)

G00723715

Courtesy of NISSAN MOTOR CO., U.S.A.

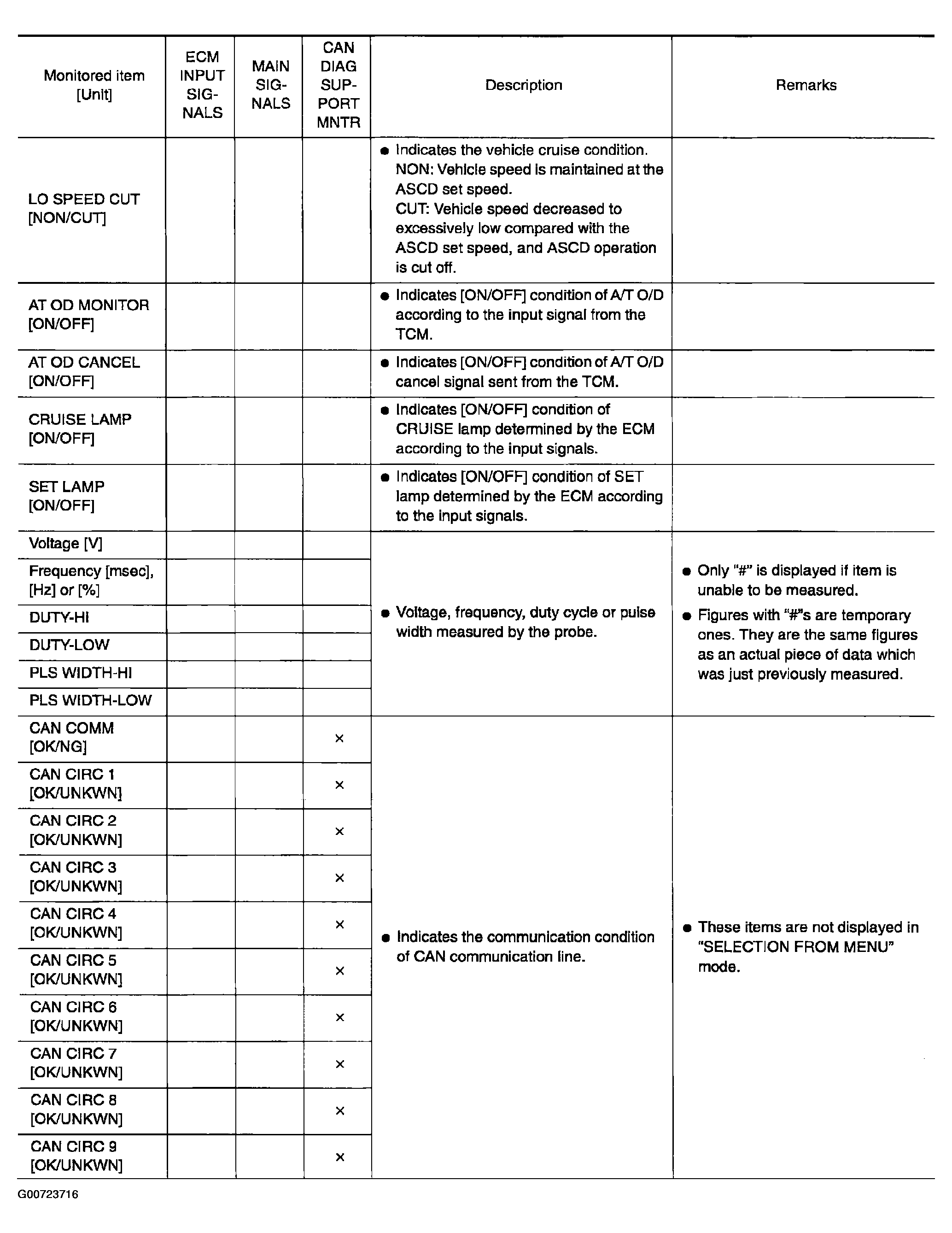

Fig 5: Consult-II Data Monitor Mode (5 Of 5)

G00723716

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
