Inspection Procedure

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.

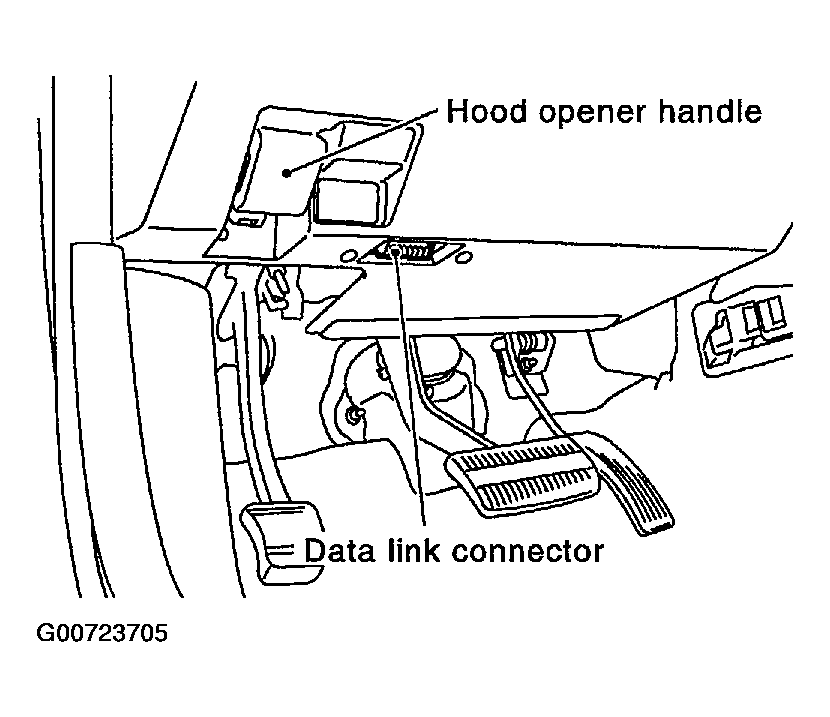

Connect "GST" to data link connector, which is located under LH dash panel near the hood opener handle. See Figure.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are shown).

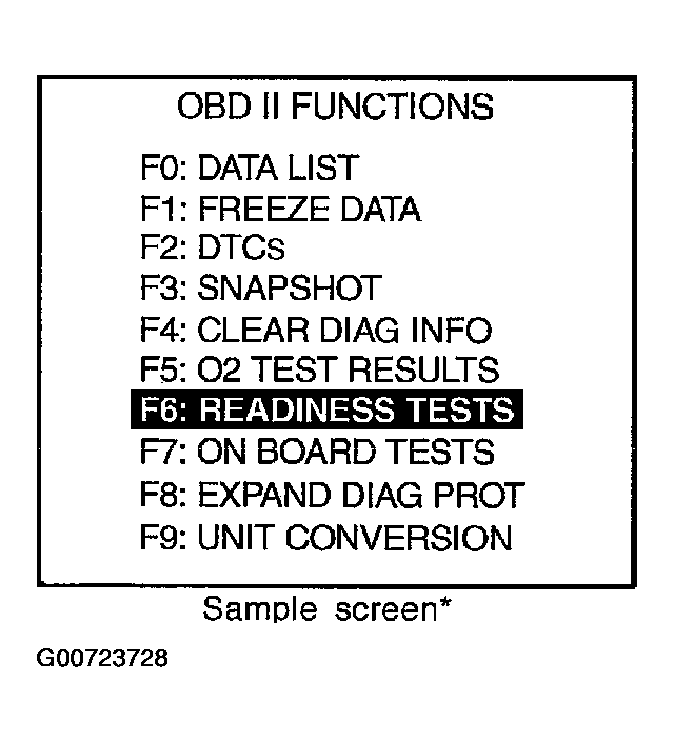

Fig 1: GST Sample Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic mode according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.

Fig 2: GST Sample Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
