System-Basic Engine Control System

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

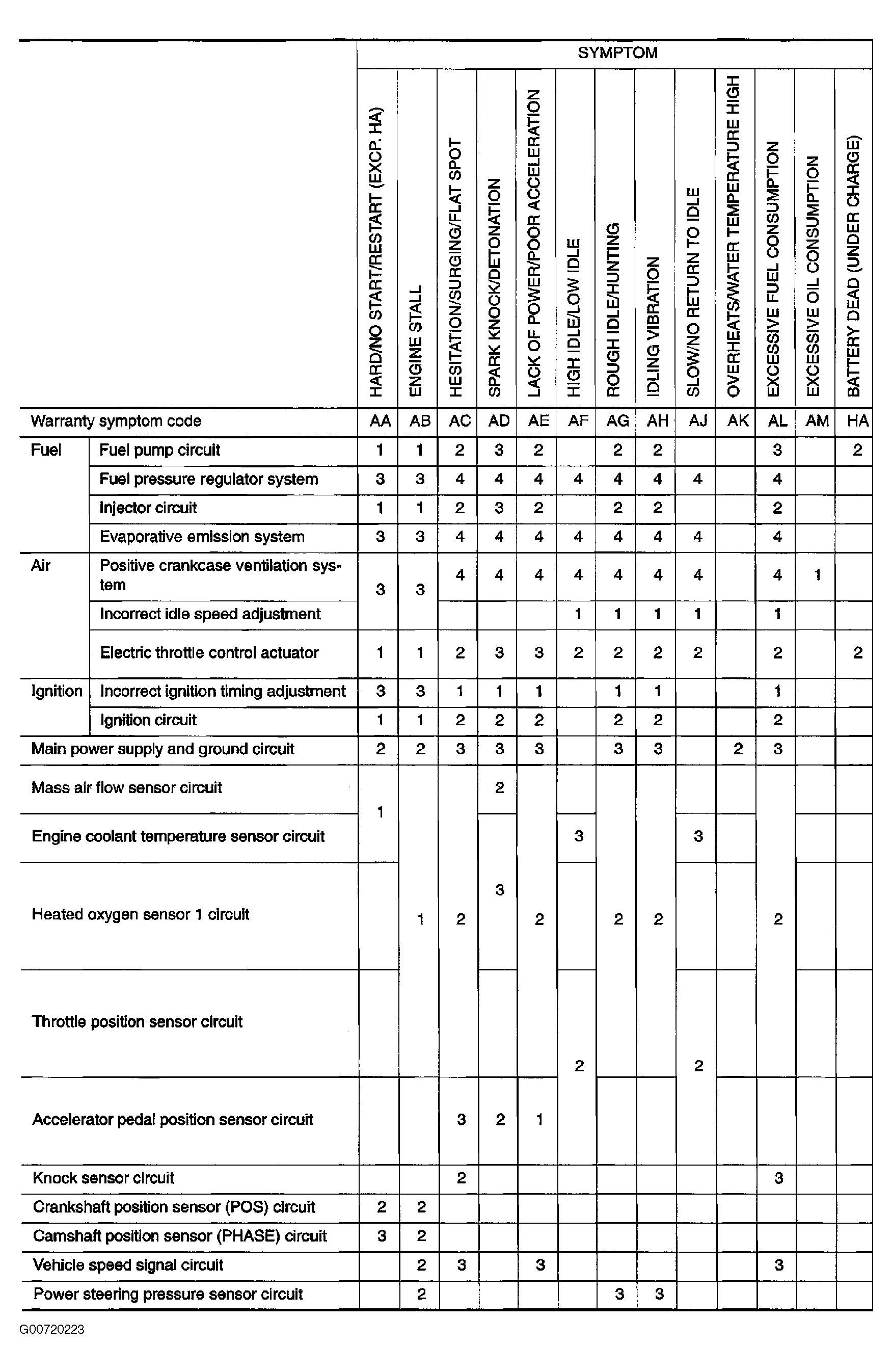

Fig 1: Symptom Matrix Chart (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

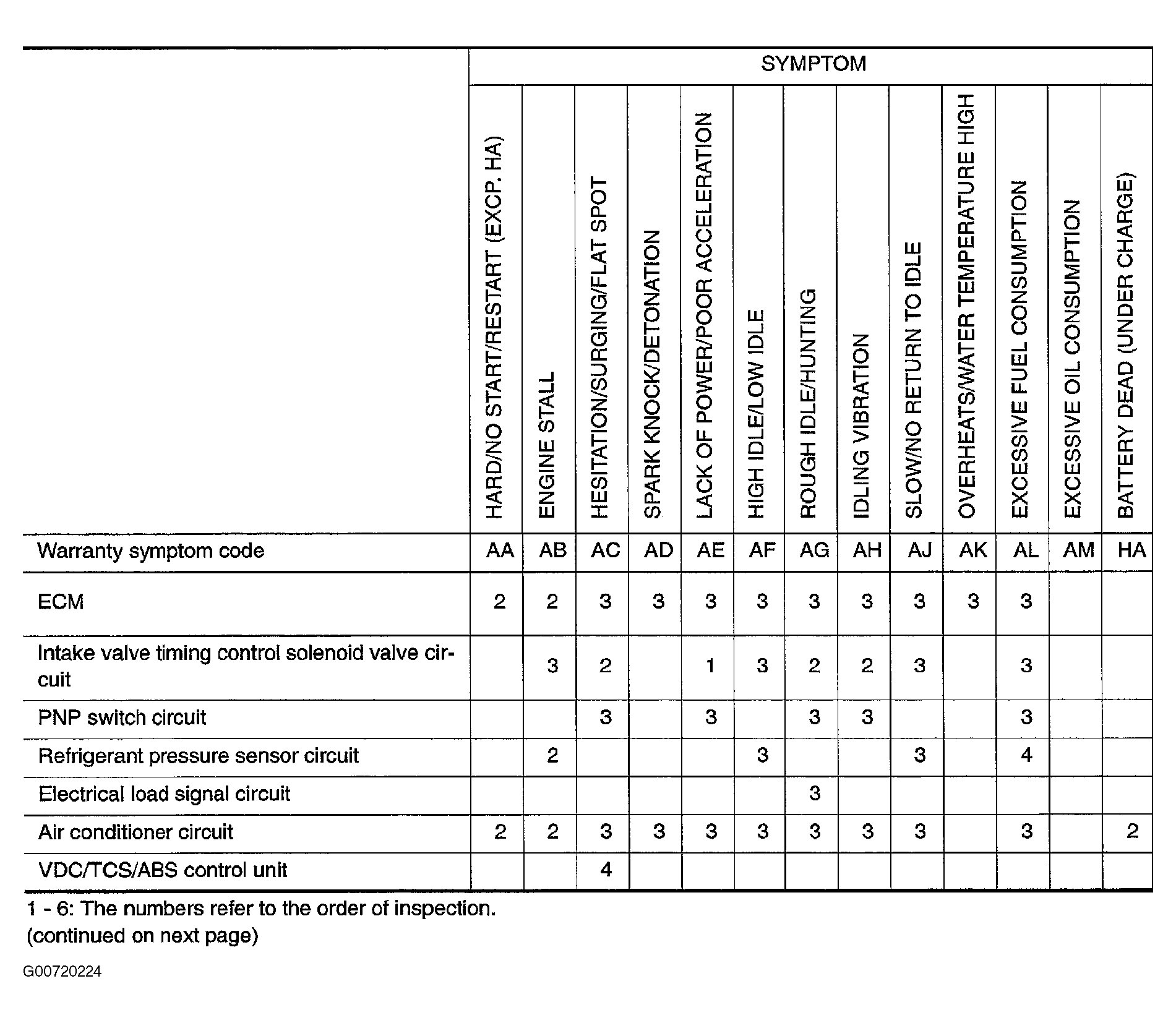

Fig 2: Symptom Matrix Chart (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.
