Camber And Caster

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure camber and caster of both the right and left wheels with a suitable alignment gauge and adjust as necessary to specification.

    Camber : Refer to FRONT WHEEL ALIGNMENT .

    Fig 1: Measure Camber And Caster
    G00728279Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If outside of the specified value, adjust camber and caster using the adjusting bolts in the lower links.
    CAUTION: After adjusting the camber then check the toe-in.
    NOTE: Camber changes about 3' (0.11°) minutes with each graduation of one adjusting bolt. Refer to chart below for examples of lower link adjusting bolt effect on camber and caster.

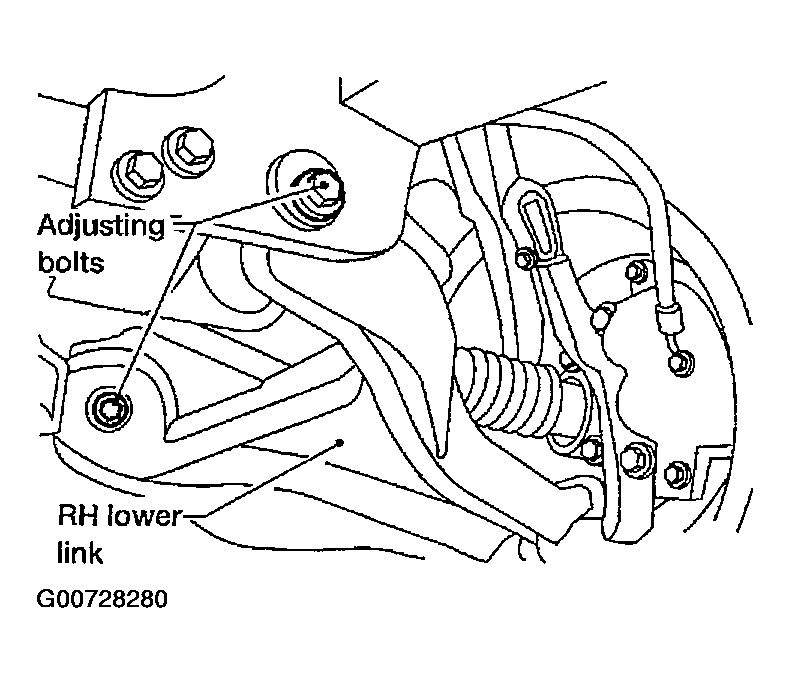

    Fig 2: Locating Adjusting Bolts
    G00728280Courtesy of NISSAN MOTOR CO., U.S.A.

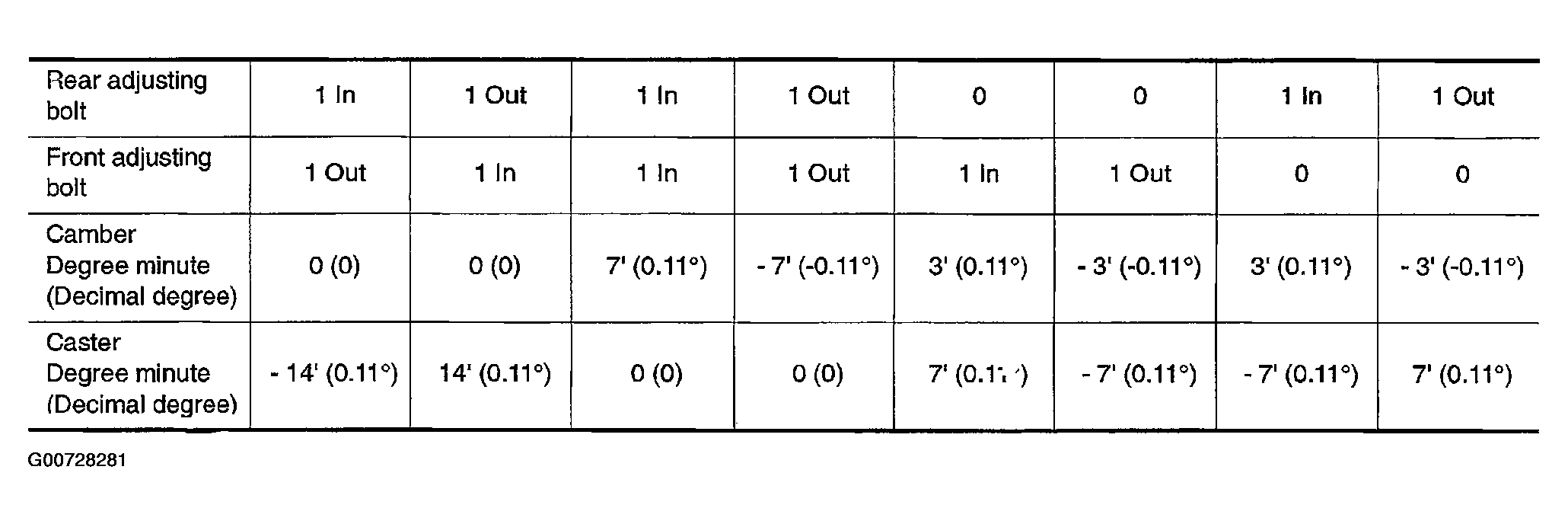

    Fig 3: Lower Link Adjusting Bolt Effect On Camber And Caster Chart
    G00728281Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Tighten the adjusting bolt nuts to specification. Refer to Figure.
