CONSULT-II Setting Procedure

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

For details, refer to the separate "CONSULT-II Operation Manual".

Turn ignition switch "OFF".
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located in instrument lower panel on driver side.

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON". (Do not start engine.)
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A/T".
If "A/T" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (PLC) CIRCUIT in GENERAL INFORMATION - TITAN article in GENERAL INFORMATION. .

Fig 3: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

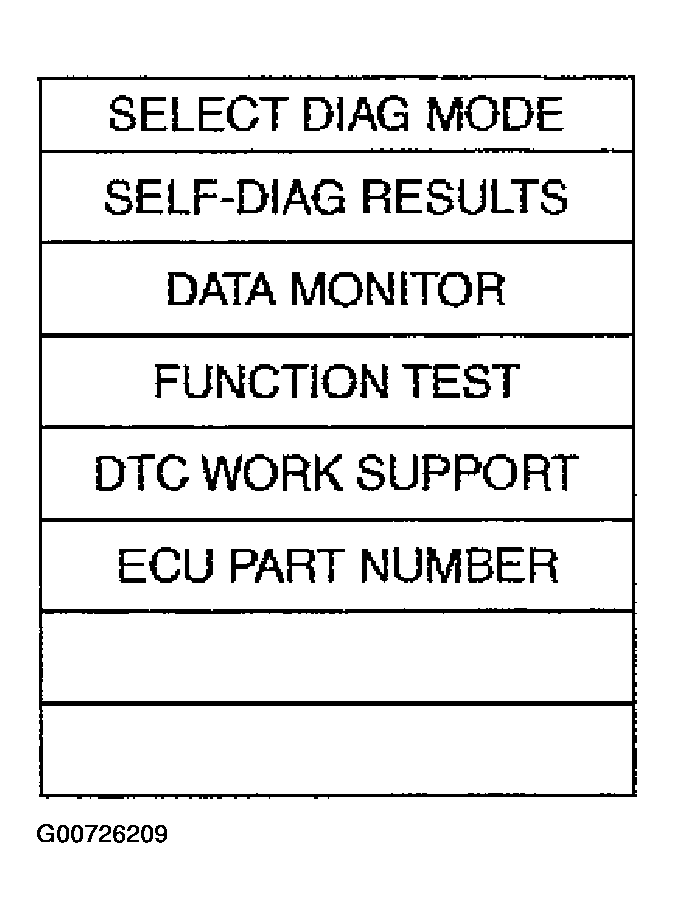

Touch "DTC WORK SUPPORT".

Fig 4: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

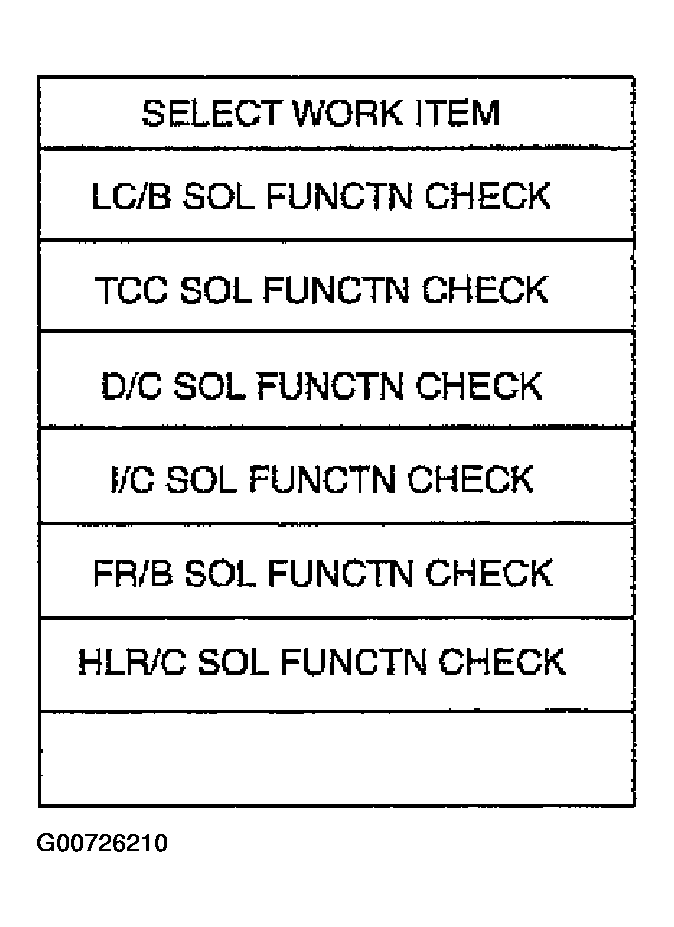

Touch select item menu.

Fig 5: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 6: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in appropriate TROUBLE DIAGNOSIS FOR DTC".

Fig 7: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.

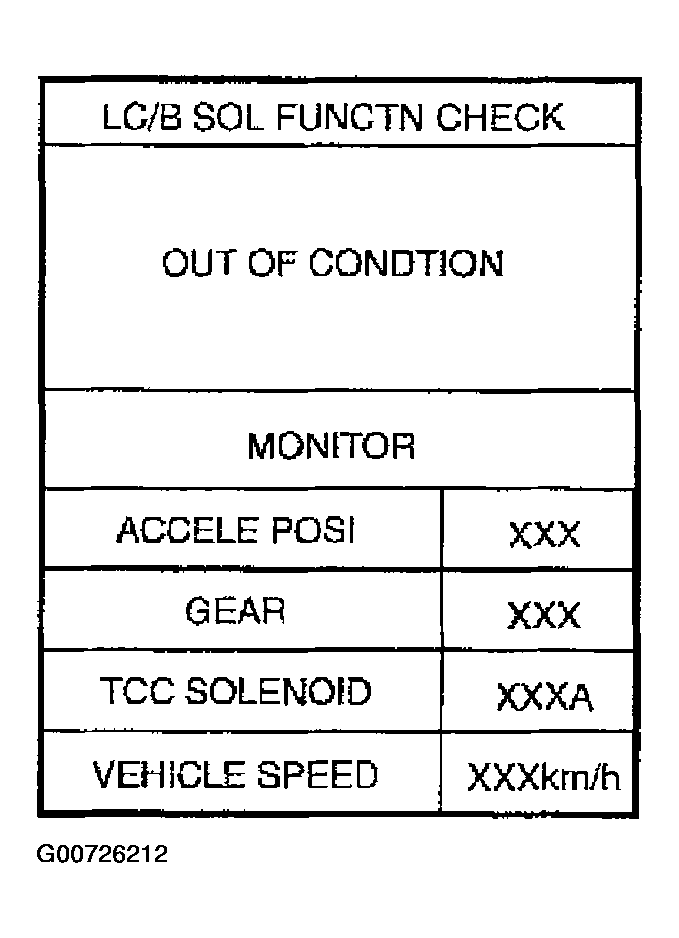

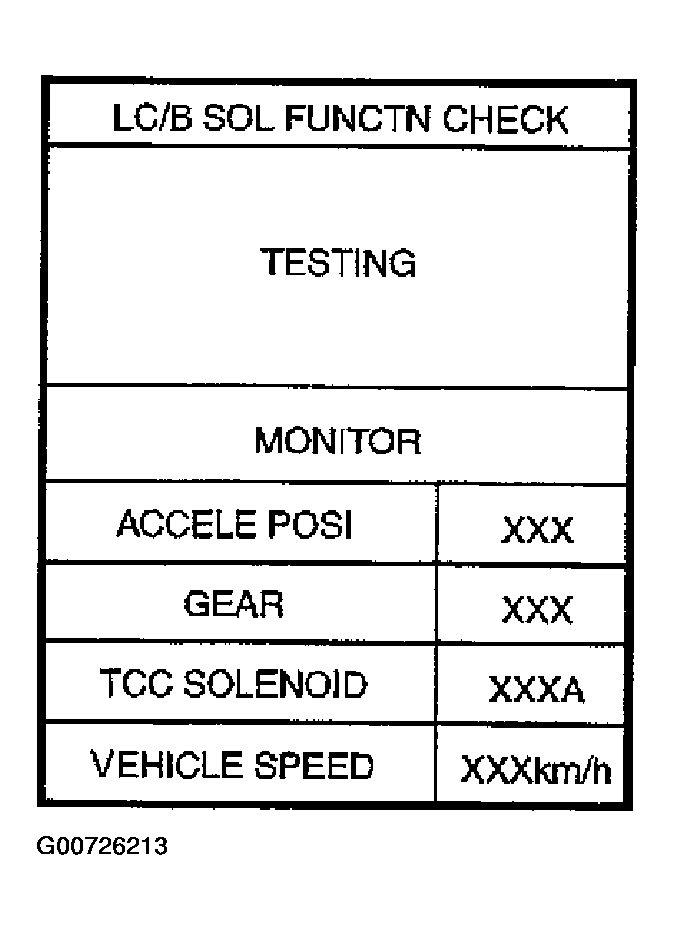

- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to TESTING".
Fig 8: CONSULT-II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.
