Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front final drive assembly.

    Front final drive bolts : 182.5 N.m (19 Kg-m, 135 ft-lb)

  2. Connect the vent hose.
  3. Install the front cross member.
  4. Install LH and RH drive shaft. Refer to DRIVE SHAFT .
  5. Install front propeller shaft. Refer to FRONT PROPELLER SHAFT .

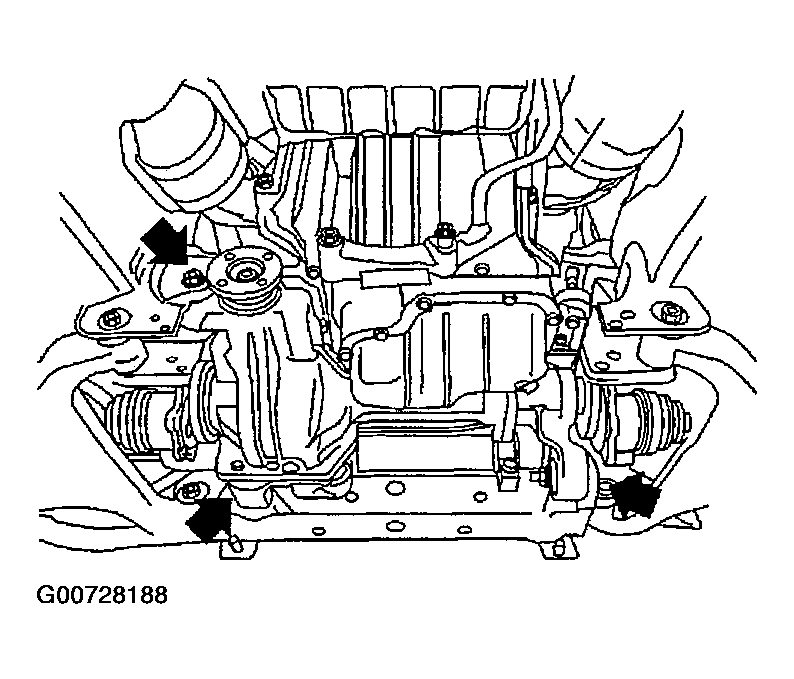

Fig 1: Installing Front Final Drive Assembly
G00728188Courtesy of NISSAN MOTOR CO., U.S.A.
