Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

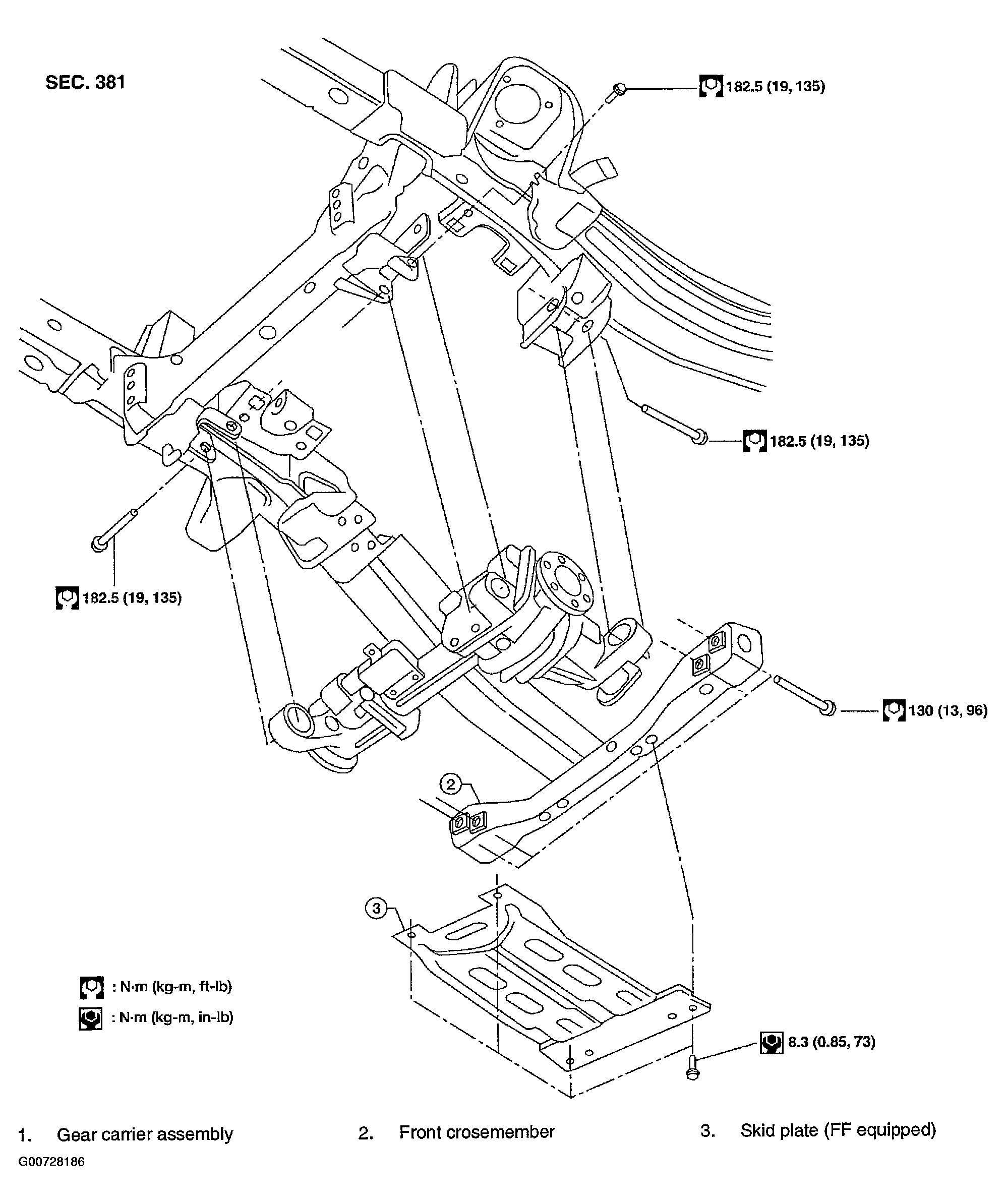

Fig 1: Removing & Installing Front Final Drive Assembly With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
