Seat Back Assembly

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Remove appropriate front seat from vehicle. Refer to diagram when replacing seat back assembly. See Fig 1 & Fig 2 . Tighten seat back bolts and front seat mounting bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

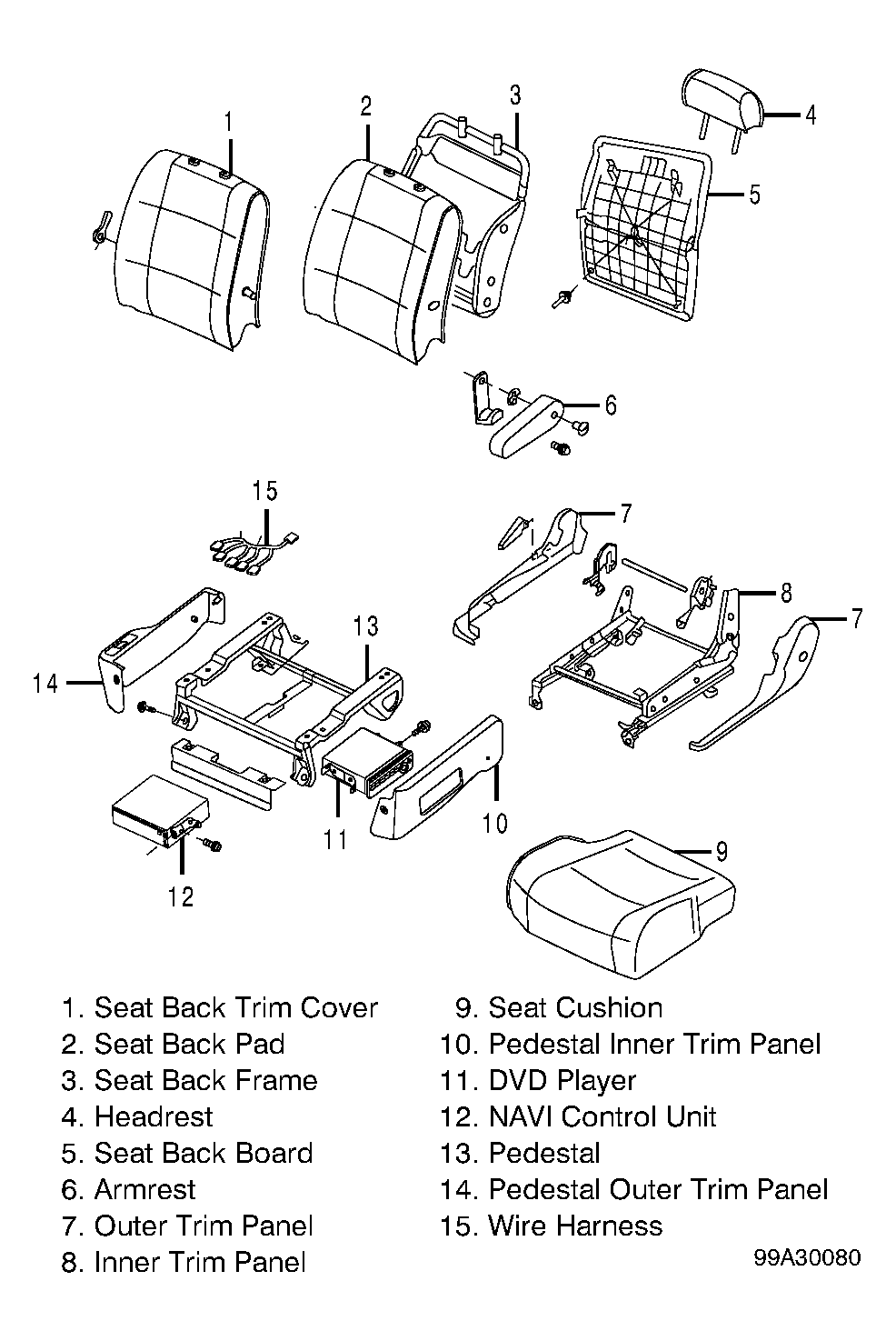

Fig 1: Identifying Front Assembly Components (Power Seat)

Courtesy of NISSAN MOTOR CO., U.S.A.

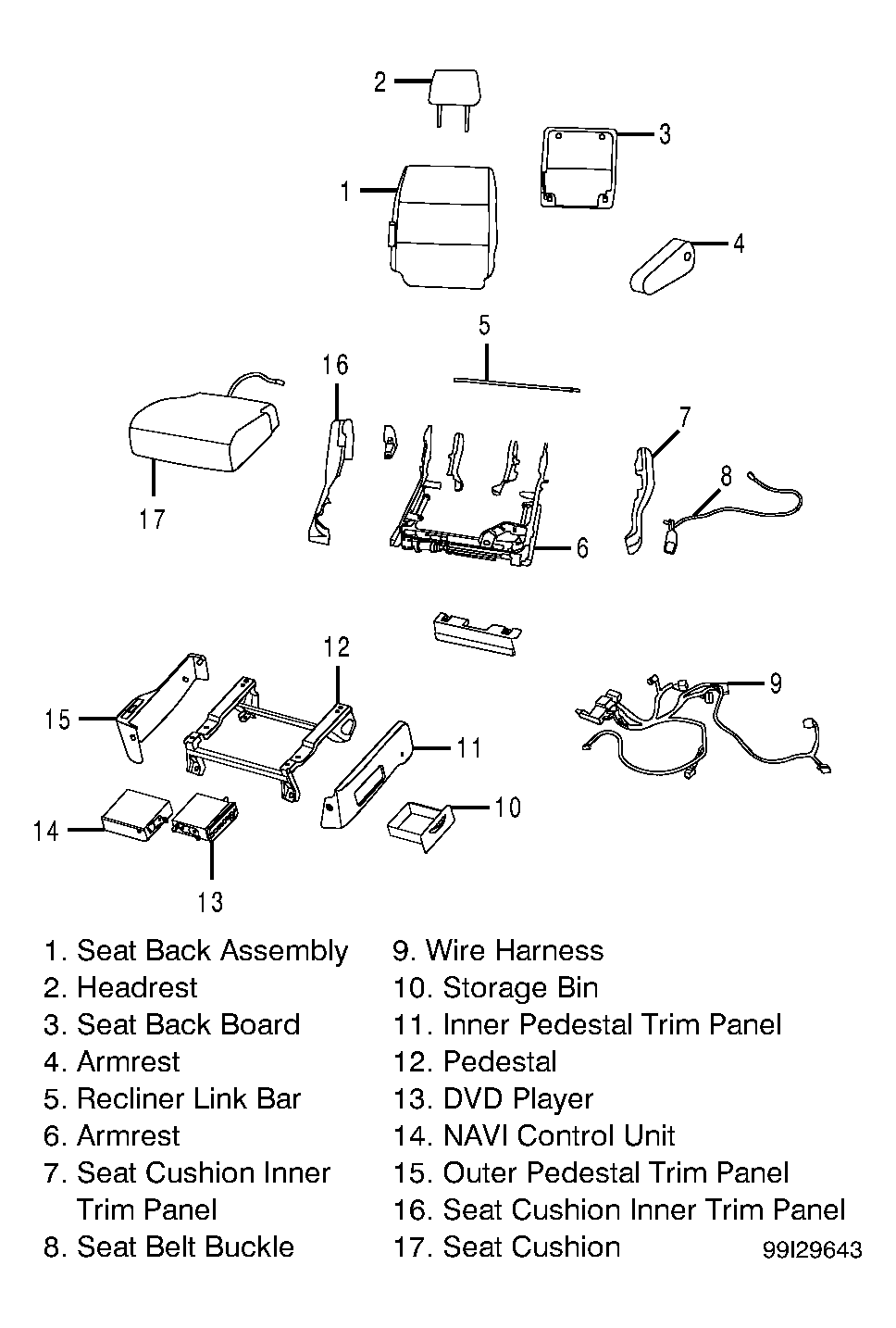

Fig 2: Identifying Front Assembly Components (Manual Seat)

Courtesy of NISSAN MOTOR CO., U.S.A.
