Current Codes Using Consult Tester
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

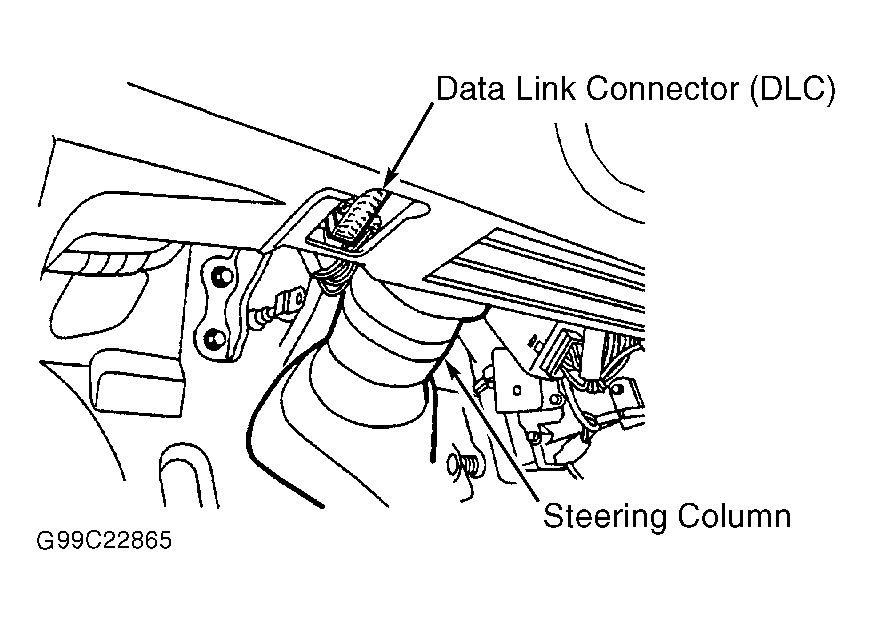

- Turn ignition off. Connect CONSULT tester to Data Link Connector (DLC), located under left side of instrument panel, using CONSULT CONVERTER. See Fig 1 . Turn ignition on. Touch START (NISSAN BASED VHCL) on CONSULT tester. Touch AIR BAG. Select SELF-DIAG (CURRENT).
- If any codes are present, message will be displayed on CONSULT tester. Touch PRINT on CONSULT tester. Compare codes to present fault messages. See PRESENT FAULT MESSAGES . Touch BACK until SELECT SYSTEM appears. Turn off CONSULT tester. Turn ignition off. Disconnect CONSULT tester from DLC. Disconnect both battery cables. After repair is complete, codes must be cleared. See CLEARING CODES under DIAGNOSTICS.
