Description Of Control System
WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

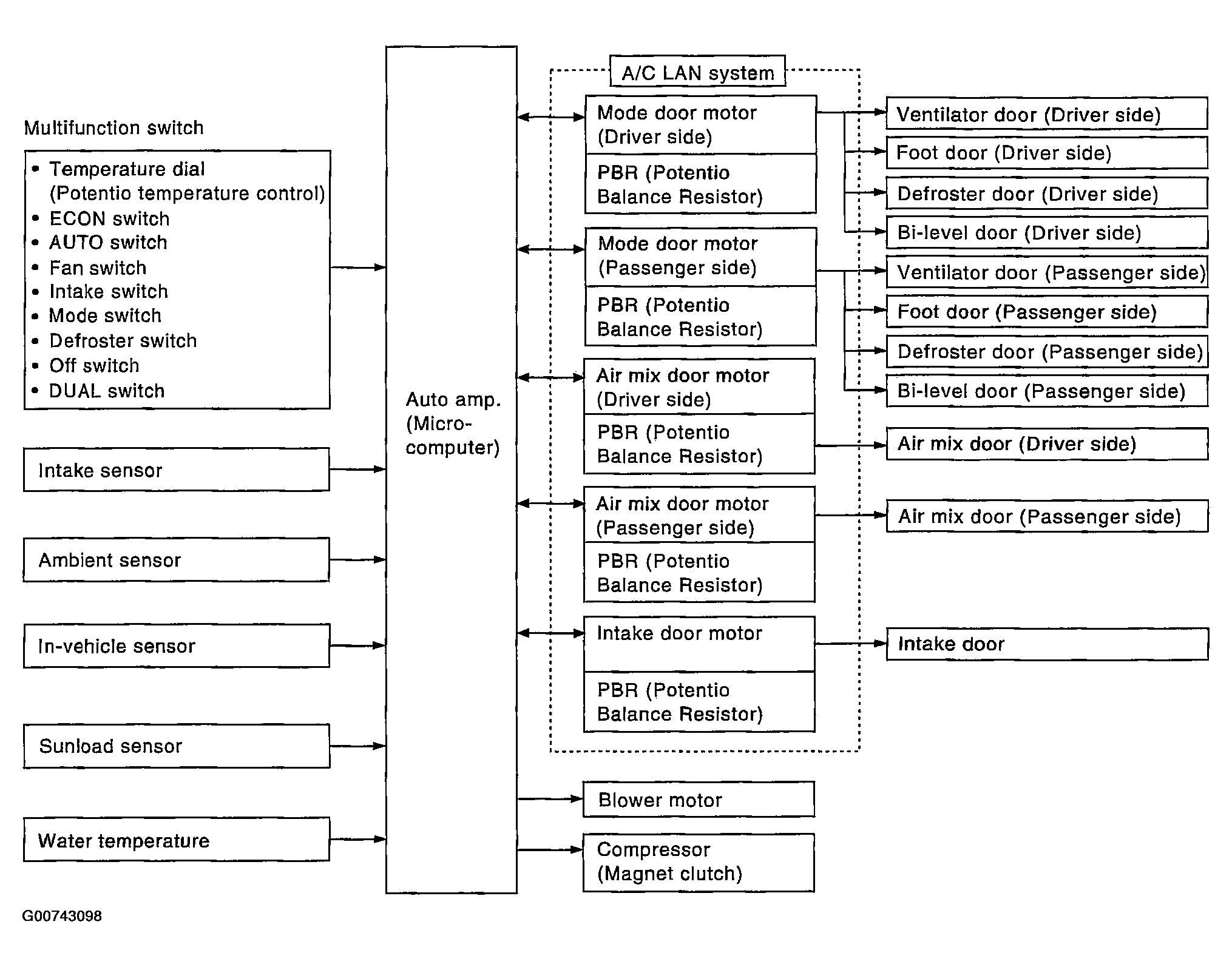

The control system consists of input sensors, switches, the auto amp. (microcomputer) and outputs.
The relationship of these components is shown below:
Courtesy of NISSAN MOTOR CO., U.S.A.
