WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
SYMPTOM: Mode door motor, intake door motor and/or air mix door motor does not operate normally.

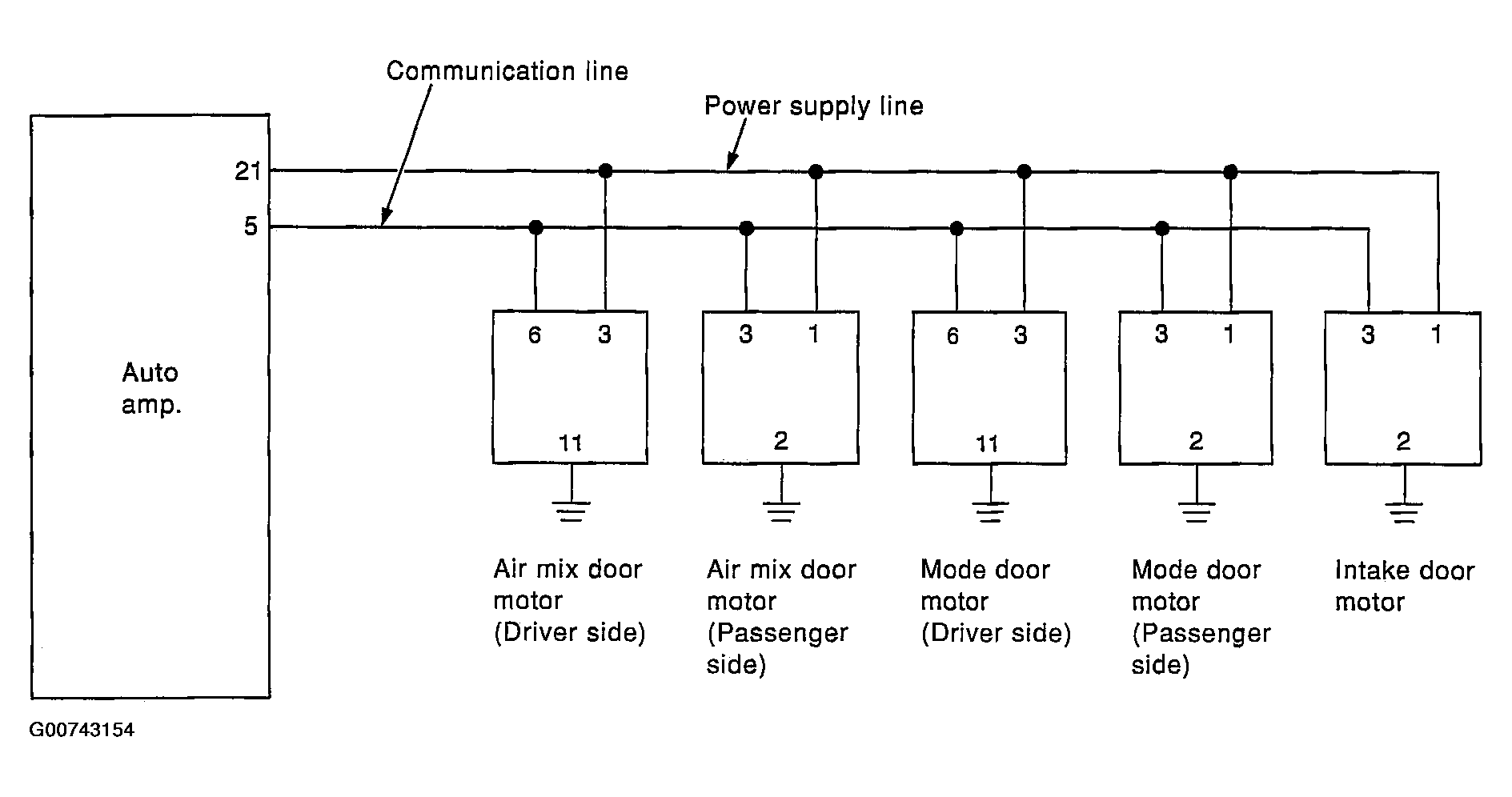

Fig 1: Checking LAN System Circuit For Normal Operation
