Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

If necessary, install the stud bolts.
1. Stud bolts : 9.8 - 11.8 N.m (1.0 - 1.2 kg-m, 87 - 104 in-lb)
Install intake manifold bolts in three steps in the order shown.
1. Step 1 : 4.9 - 9.8 N.m (0.5 - 0.99 kg-m, 44 - 86 in-lb)
2. Step 2 : 26.5 - 31.4 N.m (2.7 - 3.2 kg-m, 20 - 23 ft-lb)
3. Step 3 : 26.5 - 31.4 N.m (2.7 - 3.2 kg-m, 20 - 23 ft-lb)

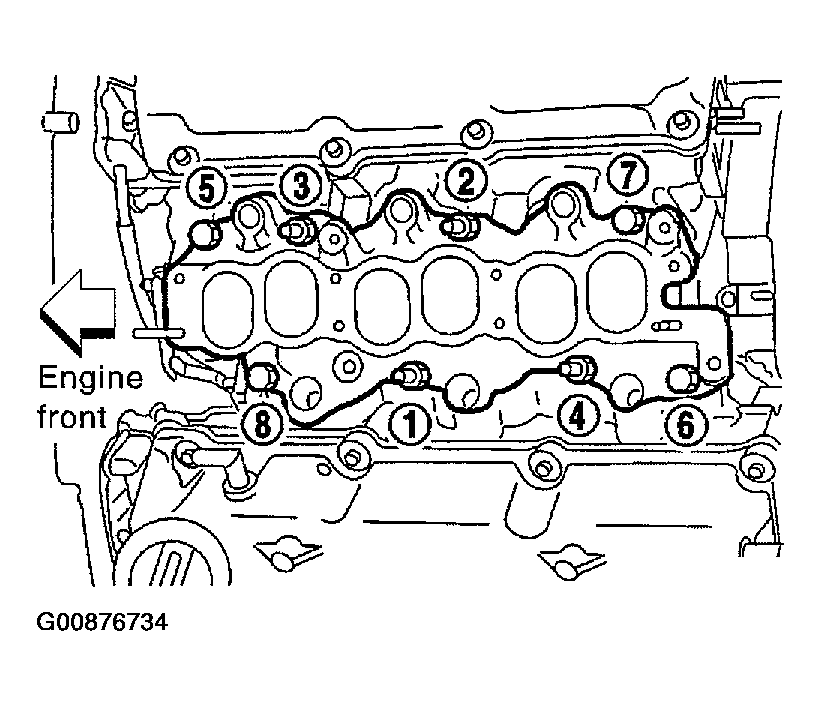

Fig 1: Install Intake Manifold Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
