Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Before disassembling, measure the end play for 3rd, 4th, 5th, and 6th input gears.
End play standard values

3rd gear : 0.18 - 0.31 mm (0.0071 - 0.0122 in)

4th gear : 0.20 - 0.30 mm (0.0079 - 0.0118 in)

5th gear : 0.06 - 0.16 mm (0.0024 - 0.0063 in)

6th gear : 0.06 - 0.16 mm (0.0024 - 0.0063 in)

CAUTION: If measurement is outside the standard value, disassemble to check the contact surfaces of the gear, shaft, and hub. Adjust using the correct size snap ring for assembly.

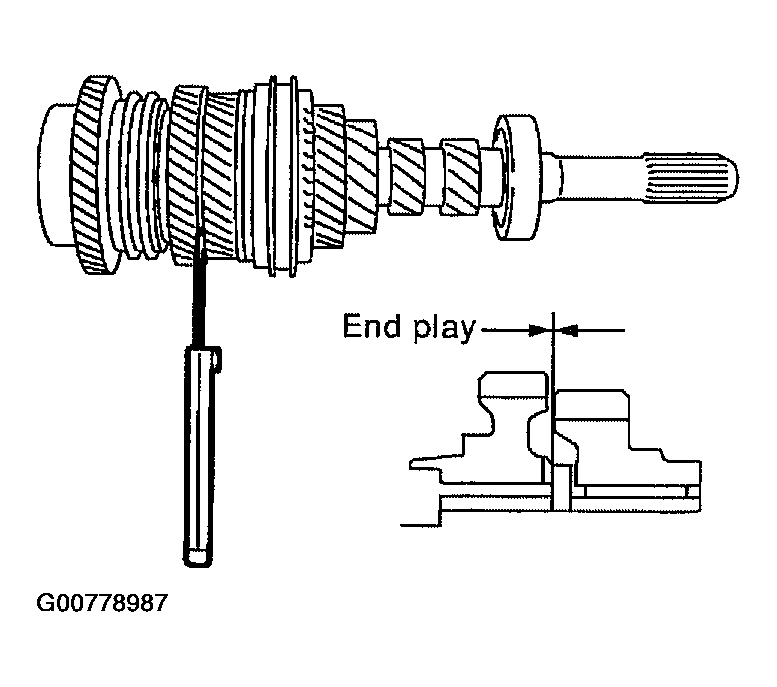

Fig 1: Before Disassembling, Measure The End Play For 3rd, 4th, 5th, And 6th Input Gears
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the oil channel.
Remove the input shaft rear bearing using Tool as shown.

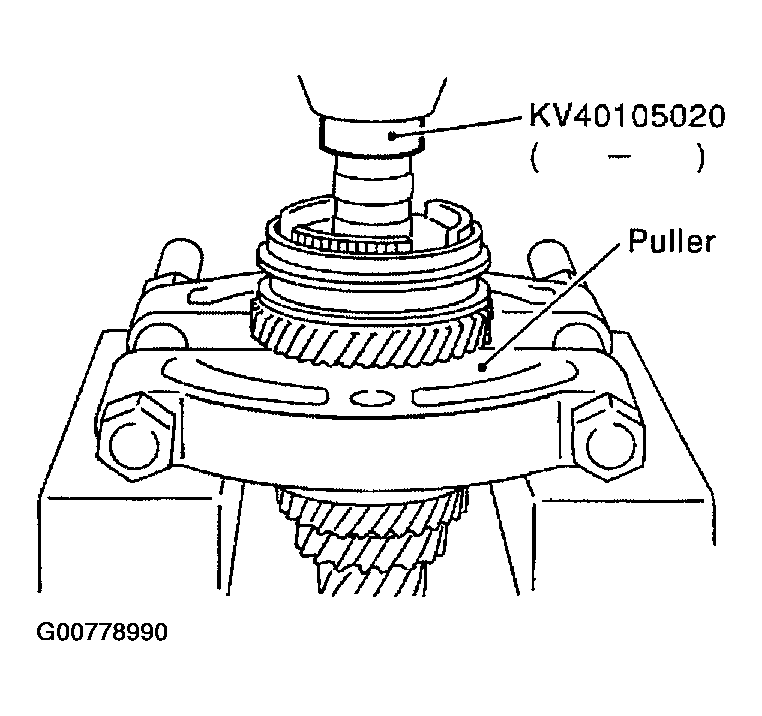

Fig 2: Remove The Input Shaft Rear Bearing Using Tool As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the snap ring.
Remove the 6th input gear, 6th bushing, and 6th needle bearing using Tool as shown.

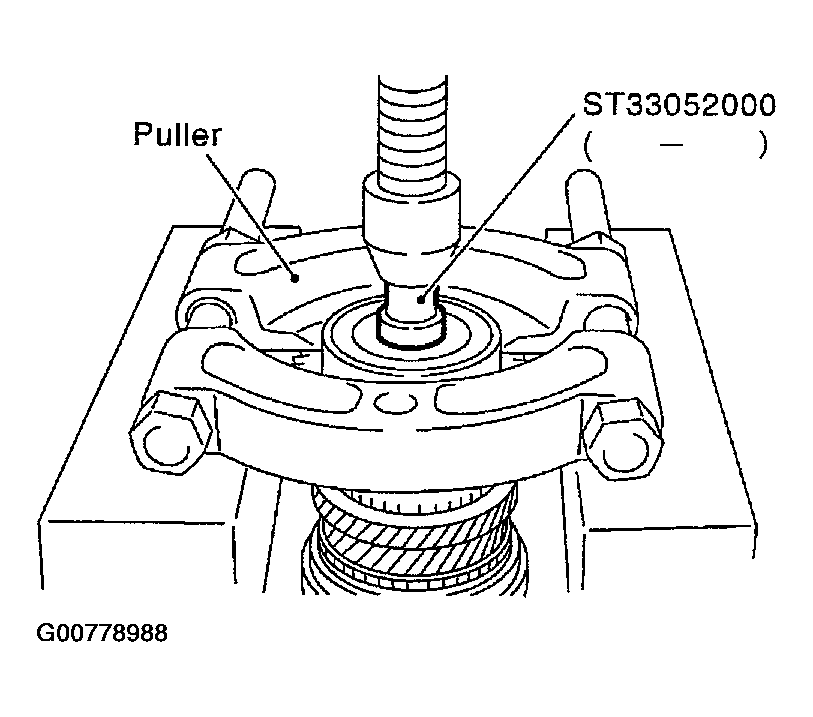

Fig 3: Remove The 6th Input Gear, 6th Bushing, And 6th Needle Bearing Using Tool As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the 6th baulk ring, 5th-6th coupling sleeve, and shifting insert.
Remove the 5th input gear and synchronizer hub assembly simultaneously using Tool as shown.

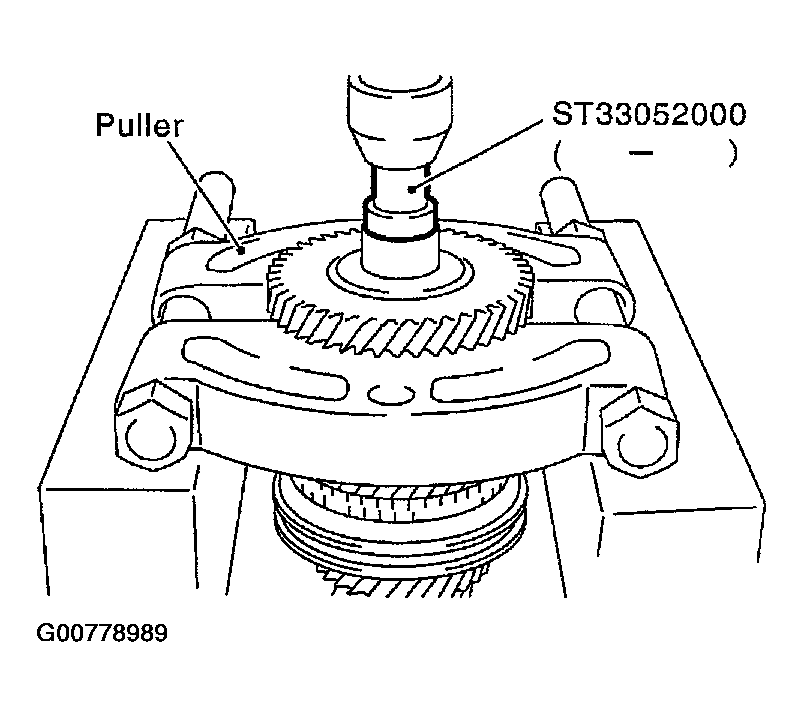

Fig 4: Remove The 5th Input Gear And Synchronizer Hub Assembly Simultaneously Using Tool As Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the 5th needle bearing.
Remove the 5th bushing, thrust washer, 4th input gear, 4th needle bearing, 4th bushing, 4th baulk ring, 3rd-4th synchronizer hub assembly, 3rd baulk ring, and 3rd input gear simultaneously using Tool as shown. See Fig 5 .

Fig 5: Disassembly Continued
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the 3rd needle bearing.
Remove the input shaft front bearing using Tool as shown.

Fig 6: Remove The Input Shaft Front Bearing Using Tool As Shown
