Shift Lock Solenoid

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check operation by applying battery voltage to A/T device connector.

CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

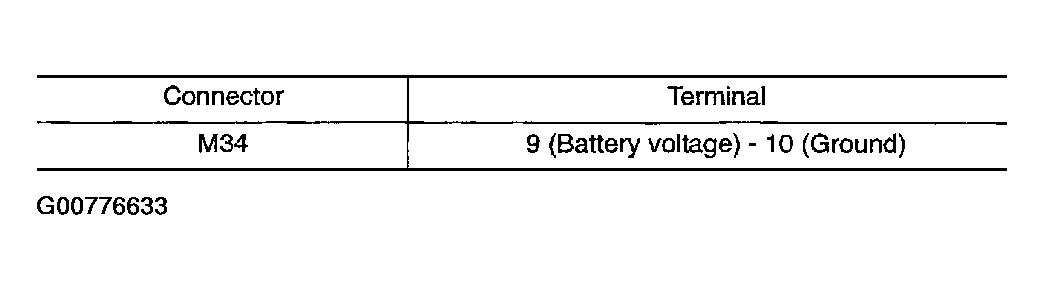

Fig 1: Terminal Identification Table

Courtesy of NISSAN MOTOR CO., U.S.A.

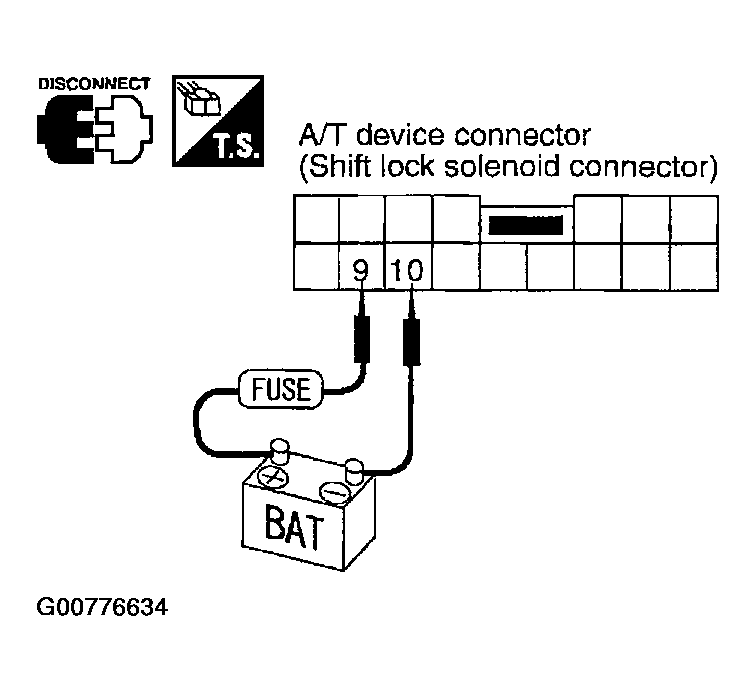

Fig 2: Checking SHIFT LOCK SOLENOID

Courtesy of NISSAN MOTOR CO., U.S.A.
