Control Valve Assembly And Accumulators: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Drain ATF from transaxle.

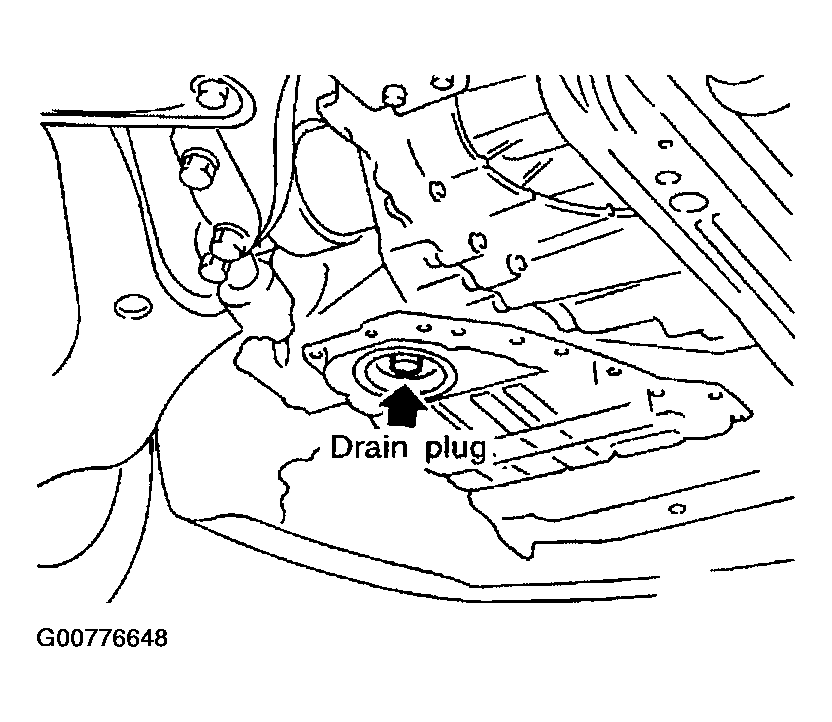

Fig 1: Draining ATF
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil pan using power tools, and gasket.
- Do not reuse oil pan bolts.
Disconnect terminal cord assembly harness connector.

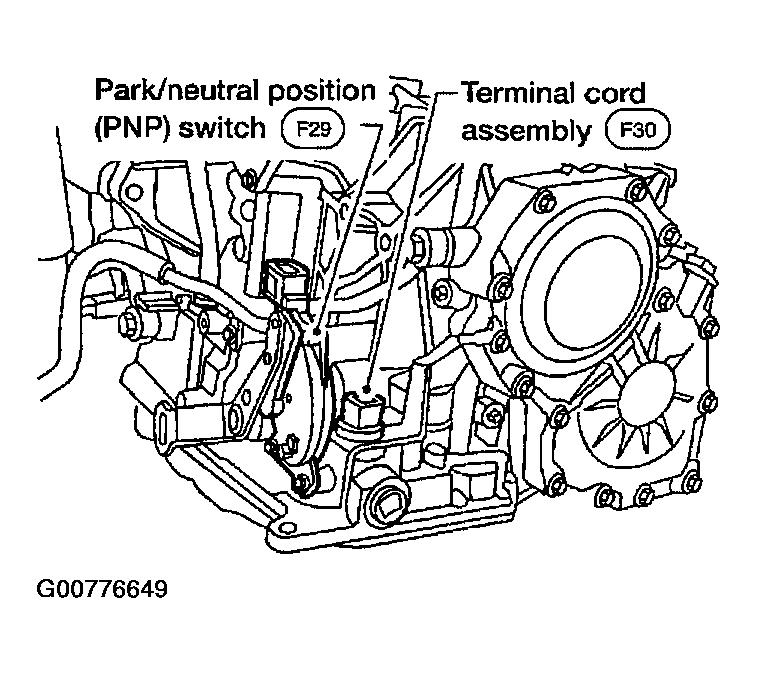

Fig 2: Locating terminal cord assembly harness connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove stopper ring from terminal cord assembly harness terminal body.
Remove terminal cord assembly harness from transmission case by pushing on terminal body.

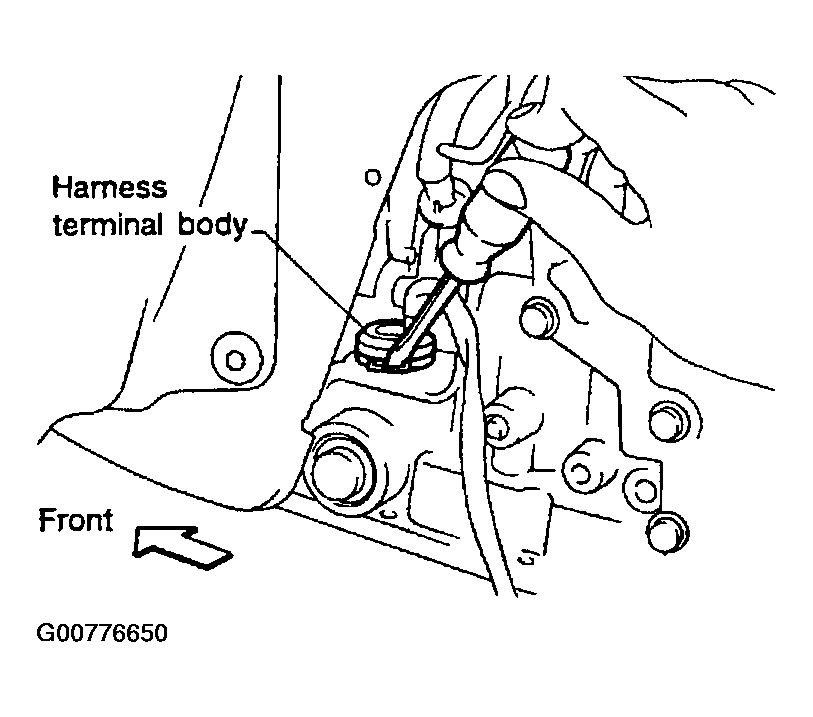

Fig 3: Removing terminal cord assembly harness
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove control valve assembly by removing fixing bolts I, X and 2 bolts identified with Black Dots. See Fig 4.
Bolt length, number and location are shown in the illustration.

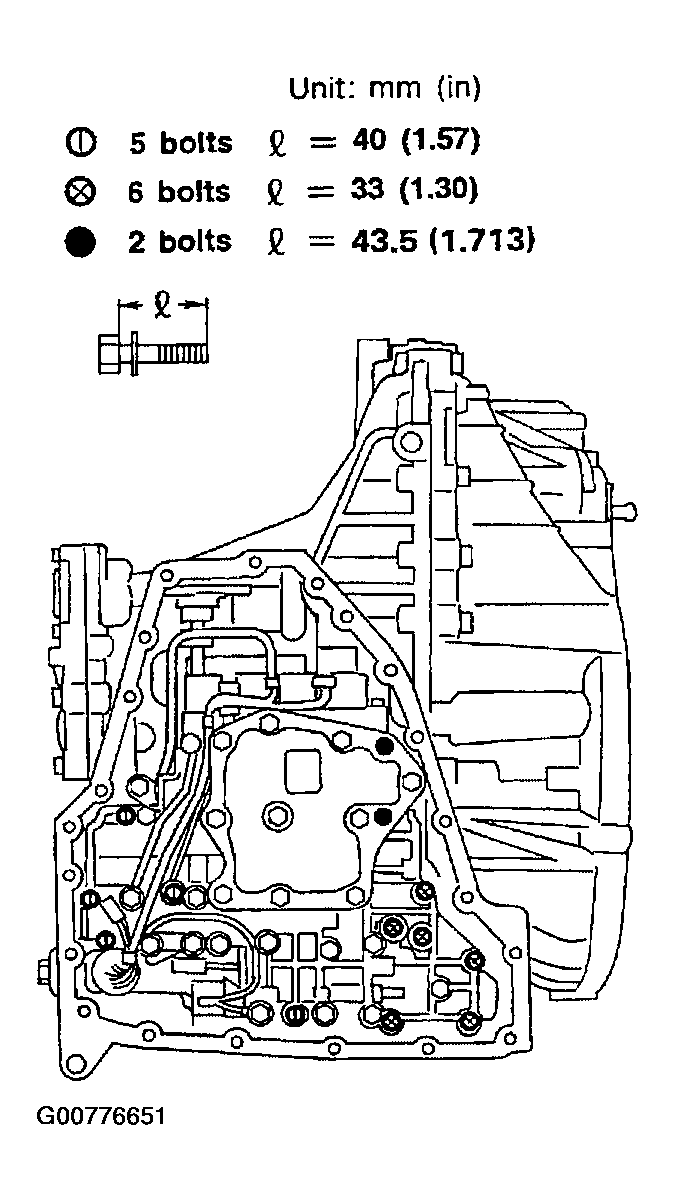

Fig 4: Removing control valve assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
- Be careful not to drop manual valve and servo release accumulator return spring.
Disassemble and inspect control valve assembly if necessary. Refer to "Control Valve Assembly ".
Remove servo release and N-D accumulators by applying compressed air if necessary.
- Hold each piston with a rag.

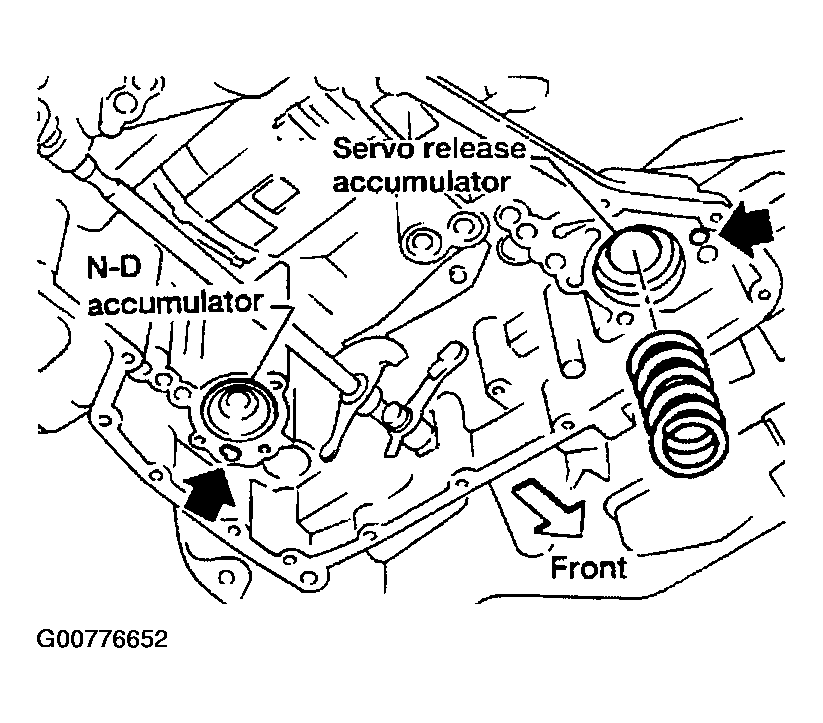

  Fig 5: Removing Servo Release And N-D Accumulators
  Courtesy of NISSAN MOTOR CO., U.S.A.
